Item Includes

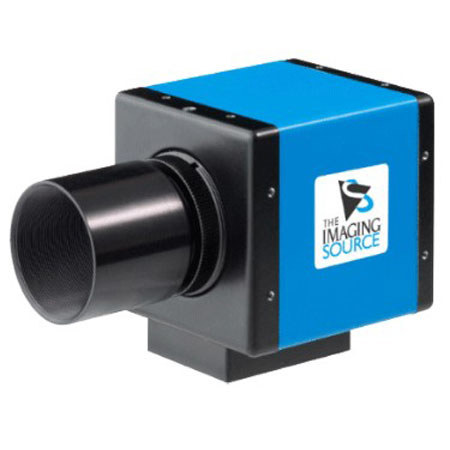

The Imaging Source FireWire Color Telescope Camera - Device Driver (IC WDM DCAM TIS) - Camera Control Software IC Capture.AS
|
Description
Three characteristics make the telescope camera DFK 31AF03.AS an ideal tool for color astrophotography: high resolution, fast refresh rate and a low price. Using the shipped software - IC Capture - you can save the captured images to lossless and uncompressed AVI files. The astro CCD camera DFK 31AF03.AS is particularly well known for its ability to output high resolution images at high speed. In order to transfer these large amounts of data to the host PC, a very fast bus is required - FireWire (IEEE 1394).
IC Capture.AS performs color interpolation on the raw color data (RAW format) from the CCD chip. This reduces the load on the camera processor. On the other hand, if you prefer the camera itself to perform color interpolation, simply select the appropriate option in the shipped software IC Capture.AS. In this case, the maximum frame rate is 15 fps. Alternatively, should color interpolation not be desirable at all, AVI files can be written in RAW format.
Sony color CCD, type ICX204AK is at the core of the astro CCD camera DFK 31AF03.AS. The format of this CCD is 1/3" at a resolution of 1024 x 768 pixels. Even at long exposure times, its noise is minimal. The unsurpassed quality of the ICX204AK allows its deployment in scientific image processing applications. Unlike the human eye, CCDs are sensitive to near infrared light (wavelengths over 700nm). The CCD camera DFK 31AF03.AS ships with an IR cut filter. Thus, its deployment is recommended for applications in which capture of these wavelengths would lead to interference. |
Features
 |
Camera Features: |
|
Color FireWire camera with IR cut filter |
|
1/3" CCD, progressive scan |
|
Resolution 1024 x 768 |
|
Max. 30 fps |
|
Max exposure time 60 min |
|
C/CS Mount |
|
High resolution, fast refresh rate |
|
Fast display of color images |
|
Sony color CCD |
|
Fast data transfer via FireWire |
|
Sony ICX204AK Sensor Features: |
|
Progressive scan allows individual readout of the image signals from all pixels. |
|
High horizontal and vertical resolution (both approx. 600TV-lines) still image without a mechanical shutter. |
|
Supports high frame rate readout mode (effective 256 lines output, 15MHz drive: 45 frame/s, 20MHz drive: 60 frame/s) |
|
Square pixel |
|
Horizontal drive frequency: Typ.: 15MHz, Max.: 20MHz |
|
No voltage adjustments (reset gate and substrate bias are not adjusted.) |
|
R, G, B primary color mosaic filters on chip |
|
High resolution, high color reproductivity, high sensitivity, low dark current |
|
Low smear, excellent anti-blooming characteristics |
|
Continuous variable-speed shutter |
|
Recommended range of exit pupil distance: -20 to -100mm |
Specifications
| Camera Type | Color FireWire camera with IR cut filter |
| Purpose | Astronomy FireWire CCD Imager for Telescope Astrophotography |
| Connection | FireWire |
| Sensor | CCD |
| Sensor Type | Progressive scan |
| Format | 1/3" |
| Resolution | 1024 x 768 pixel |
| Dynamic Range | 8 bit |
| Exposure Time | 1/10000 s to 60 minutes |
| Gain | 0 dB to 36 dB |
| Fps @ Max Resolution | 30 fps |
| Video Formats @ Frame Rate | 1024 x 768, BY8 (RAW) @ 30, 15, 7.5, 3.75 fps
1024 x 768, UYVY @ 15, 7.5, 3.75 fps |
| Lens Mount | C/CS-mount |
| Sensor Image Size | Diagonal 6mm (Type 1/3) |
| Sensor Total Number Of Pixels | 1077 (H) x 788 (V) approx. 850K pixels |
| Sensor Number Of Effective Pixels | 1034 (H) x 779 (V) approx. 800K pixels |
| Sensor Number Of Active Pixels | 1024 (H) x 768 (V) approx. 790K pixels (diagonal 5.952mm) |
| Sensor Chip Size | 5.80mm (H) x 4.92mm (V) |
| Sensor Unit Cell Size | 4.65µm (H) x 4.65µm (V) |
| Sensor Optical Black | Horizontal (H) direction: Front 3 pixels, rear 40 pixels
Vertical (V) direction: Front 7 pixels, rear 2 pixels |
| Sensor Number Of Dummy Bits | Horizontal 29
Vertical 1 |
| Sensor Substrate Material | Silicon |
| Supply Voltage | 8 V to 30 V via the FireWire cable |
| Current Consumption | approx 200 mA @ 12 VDC |
| Max. Temperature (Operation) | -5 °C to 45 °C |
| Max. Temperature (Storage) | -20 °C to 60 °C |
| Max. Humidity (Operation) | 20 % to 80 % |
| Max. Humidity (Storage) | 20 % to 95 % |
| Dimensions (H X W X L) | 50.6 mm x 50.6 mm x 50 mm |
| Mass | 265 g |
| | |
|
