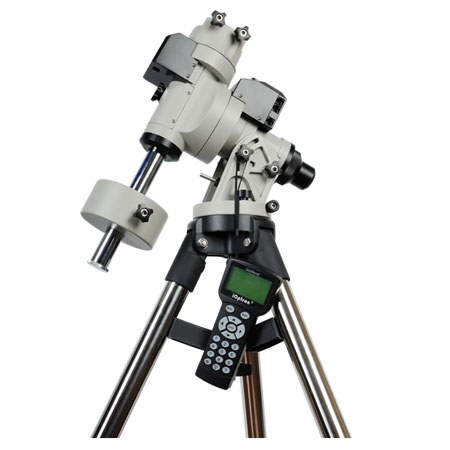

iOptron SmartStar iEQ30 GoTo German Equatorial Mount with 1.5" Tripod, 32-CH GPS Built-In

SKU: ATIEQ30

This item is no longer available.

Overview
Compare
Accessories
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

iOptron SmartStar iEQ30 GoTo German Equatorial Mount with 1.5" Tripod Specifications

  • Mount

    German Equatorial Mount

  • Payload

    30 lbs (13.5kg)

  • Mount Weight

    15 lbs (6.8kg)

  • Latitude Adjustment Range

    0° ~ 65°

  • Azimuth Adjustment Range

    +/- 6°

  • RA Worm period

    480 S

  • Right Ascension Worm Wheel

    110mm, 180 teeth

  • Declination Worm Wheel

    88mm, 144 teeth

  • RA and DEC Worm

    15.2 mm, M=0.6, brass

  • RA Bearing

    68mm

  • DEC Bearing

    55mm

  • Right Ascension Axis Shaft

    40mm, steel

  • Declination Axis Shaft

    30mm, steel

  • Gear Meshing

    Zero backlash

  • CW Shaft

    20 mm, Stainless steel

  • CW

    10 lbs (4.5kg)

  • Mount Base Diameter

    120mm

  • Dovetail Saddle

    Vixen

  • Level Indicator

    Precision bubble

  • Polar Scope

    AccuAlign G2 polar scope, dark field illumination

  • Drive Motor

    1.8° stepper motor, 128 microdivision

  • Resolution

    0.14 arc seconds (256 PPS)

  • Transmission

    48MXL Synchronous belt

  • Motor Control

    Open loop

  • PEC

    Permanent PEC

  • Hand Controller

    Go2Nova 8407+,359,000 objects database, star recognition

  • HC Display

    8 line, 21 character LCD, heated

  • Slew Speed

    9 speeds, 6°/sec max (1440X)

  • Tracking Rate

    Sidereal/Solar/Lunar/King/User

  • Meridian Treatment

    Stop (0-15° pass) and auto flip

  • GPS

    Build-in 32 Channel GPS

  • Communication Port

    RS232

  • Guiding Port

    ST-4

  • Power Interuption Recover

    Yes

  • Power Requirement

    DC 12V (11~15V) 2A

  • Power Consumption

    0.4A (Tracking) 0.6A (GOTO)

  • Computer Control

    Yes (ASCOM)

  • Operation Temperature

    -20~45°C

  • Tripod

    1.5" Stainless Steel (10.6lb or 4.8kg)

Related Articles & Videos

2 Accessories for iOptron SmartStar iEQ30 GoTo German Equatorial Mount with 1.5" Tripod, 32-CH GPS Built-In

  • All Accessories (2)
  • Cables & Adapters (1)
  • Batteries & Power Supply (1)

About iOptron SmartStar iEQ30 GoTo German Equatorial Mount with 1.5" Tripod

Introducing the NEW iEQ30 Pro!--- the next in the iEQ Series of high-performance, portable equatorial mounts. iOptron has made a few changes you'll like.

The iEQ30 Pro offers the next generation GoTo technology from iOptron. It come standard with a calibrated dark field illumination polar scope, built-in GPS, and sturdy 1.5 -inch stainless steel tripod legs. Plus, it offers premium performance in an easy-to-transport package.

• Specialized astrophotography mount ideal for entry-level and intermediate astrophotographers
• Payload: 30 lbs
• Mount weight: 15 lbs
• Updated with more advanced control electronics
• Ultra quiet slewing and tracking
• Higher gear ratio (RA 180 teeth | DEC 144 teeth)
• 1.8 degree stepper motor, 128 microsteps
• Resolution: 0.14 arc second
• Permanent periodic error correction (PPEC)
• Maximum slew speed 6 deg/sec (1440x)
• Built-in 32-channel GPS
• Hand controller with Advanced GOTONOVA GoTo Technology and heating mechanism
• Lowest working temperature: -20oC
• Power interruption recovery feature
• RS232 port for mount firmware upgrade and ASCOM control
• ST-4 autoguiding port
• 1.5 inch heavy-duty stainless steel tripod legs (10.6 lbs)
• Die cast metal tripod spreader with accessory tray
• Optional 2 inch tripod, 42-inch (#8033) or 48-inch (#8030) pier available (not included)
• AccuAlign polar scope with dark-field illumination and Quick Polar Alignment procedure, allowing for fast and accurate polar alignment
• Optional foam-fitted sturdy hard case for storage and travel available (#8080) (not included)
• Comes standard with: 4.5kg counterweight, AC adaptor, 12V DC car plug adaptor, Stainless Steel counterweight shaft, RS232-RJ9 cable.

iOptron SmartStar iEQ30 GoTo German Equatorial Mount with 1.5" Tripod Features

  • Built-in 32-channel Global Positioning System (GPS)
  • Integrated ST-4 autoguiding port capable of reverse guiding with auto-protection
  • Calibrated polar scope with dark-field illumination and easy polar alignment procedure, allowing for fast and accurate polar alignment

What's in the box:

  • iOptron SmartStar iEQ30 Pro Telescope Mount
  • Built-In GPS
  • Polar Scope with Dark Field Illuminating LED with Cable
  • Go2Nova 8407 Hand Controller
  • AC Adapter (100V-240V) 2amp
  • 1.5" Tripod
  • 12V DC Adaptor Cable with Car Lighter Plug
  • One 10lb (4.5 kg) Counterweight
  • 2 Cables (1 for DEC
  • 1 for hand controller)
  • One Counterweight Shaft
  • RJ9 to RS232 Serial Cable
  • iOptron 2 Years Warranty
