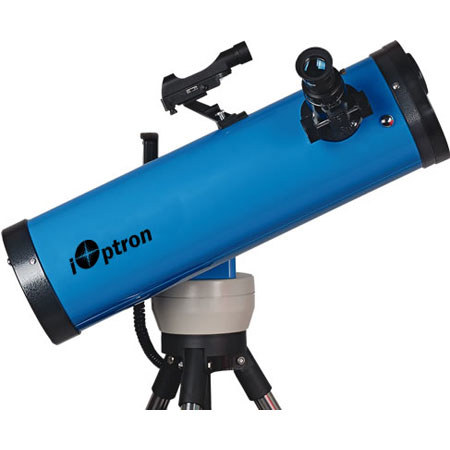

iOptron SmartStar-G-N-114 Astro Blue 114mm (4.5") Newtonian OTA, Altazimuth "Cube" Mount, #8402A GoToNova Controller, Internal GPS, & Tripod
Mfr. Part: 8803 SKU: ATISGN114
|
|
 |
|
|
|
Item Includes
SmartStar-G Astro Blue Altazimuth "Cube" Mount - #8402A GoToNova Controller with 50,000 Celestial Objects Data Base - Internal 32 Channel GPS - N-114 Astro Blue 114mm Newtonian OTA - Red Dot Finderscope - 1" thick Heavy Duty Stainless Steel Tripod
|
Description
SmartStar-G GPS AltAzimuth Telescope Mount, Astro Blue "The Cube" Alt-Azimuth Mount
The SmartStar-G comes with the patented Alt-Azimuth telescope mount, a.k.a." TheCube". This compact mount design is probably the most functional & flexible unit on the market
Both axis motors are built into a small single unit which is universally compatible with all telescopes using a dove-tail connection
In addition, there are no "dead spots" so you can point your telescope to ANYWHERE above the horizon, whereas, other mounts block the telescope tube at certain points of rotation. This mount also comes standard with AC connection. An optional DC adaptor is available so you can plug your telescope motor into your car if you're camping or at any remote location
OTA's with dovetail connection & a weight limit of less than 11 lbs.(including finder scope & camera) are compatible with the SmartStarTM-G GPS AltAzi telescope mount. (If you do not have a dovetail connection, attach your OTA using mounting rings & dovetail available at your local telescope store or the OTA manufacturer)
The most easy to understand controller on the market
The GoToNova Controller is much easier to use than other similar products. The hand controller is more intuitive with menu categories better organized
It also has a larger LCD screen with more lines of content compared with the competition. Using the easy-to-use hand controller & its large LCD screen, you can easily set up your telescope & select where you want to go
More precise speed control for viewing objects
The control system also allows you to slew the telescope at 9 different drive
USB Port
The 8402 hand controller comes with a USB port that tremendously expands the functionalities of the already powerful system. With the USB2COM driver installed, the USB port works as an RS232 serial port. It supports firmware upgrades & computer control
With ASCOM protocol, you can control your telescope with most ASCOM compatible software. This enables you to utilize the CPU, large screen, & disk space of your PC/laptop. With a wide selection of software, your star gazing experience will never be the same again
Simply a better tripod
Made of 1-inch heavy-duty stainless steel the SmartStar Tripod is sturdy, elegant, & gives the user unparalleled stability during operation. Solid construction joints keep mount locked securely. With an all-metal support system your valuable telescope will keep still even on a windy night
GoToNova Computerized Control System
The revolutionary GoToNova computerized control system is by far the most technologically advanced automated tracking system available on the market today
With a database of 50,000 celestial objects, including all of the most famous galaxies, nebulae, star clusters, not to mention the planets, you'll be able to enjoy star gazing with the simple push of a button. Includes 32-channel GPS module. |
Features
 |
SmartStar-G-N114 Newtonian telescope system. Designed with the latest technology the 114 mm mirror is crafted with aluminum coated mirrors and exacting alignment. |
|
The precision design virtually eliminates chromatic aberration for a crisp imagewithout a rainbow halo. |
|
You'll be able to view planets, star clusters and nebulae up close. |
|
With the SmartStar-G-N114 you'll also be able to take dramatic astro-photographs. |
|
Two eye pieces come standard to allow for flexibility in viewing either a wider field or a single focused object. |
|
All G-series telescope mounts come standard with a 32-channel GPS module for fully automated operation and alignment. |
|
Simply turn on the GoToNovaTM Controller and the GPS module will automatically synchronize your telescope location and time with the GoToNovaTM computerized control system. |
|
View celestial objects without having to manually punch in the date, time, latitude or longitude |
|
Compatible with most tubes on the market: |
|
Schmidt-Cassegrains 8" and below |
|
Maksutov-Cassegrains 150mm and below |
|
Newtonian reflectors (if more than 40" may block tripod at certain spots) |
|
Refractors (not more than 40") |
|
OTA's with dovetail connection and a weight limit of less than 11 lbs. (including finder scope and camera) are compatible with the SmartStarTM-G GPS AltAzi telescope mount. |
|
If you do not have a dovetail connection, attach your OTA using mounting rings and dovetail available from your OTA manufacturer |
|
Heavy duty stainless steel tripod |
|
AltAzimuth Telescope Mount The" Cube," The only mount of its kind for ultimate rotation |
|
Includes the GoToNovaTM Controller. The most intuitive controller on the market. |
|
50,000 object database plus 256 user-defined objects |
|
The largest LCD screen on the market with 8 lines and 21-character Hand Control with backlit LED buttons. |
|
USB Port for PC Laptop control and firmware upgrades (ASCOM protocol) |
|
Drive motor with 9-speed setting for precise tracking |
|
Dual-axis Servomotor |
|
Standard-equipment AC connection (Optional DC adaptor available) |
|
32-Channel GPS |
|
Payload: 7-11 lbs, depending on tubes and attachments |
Specifications
| Mount | Alt-Azimuth (the "Cube") |
| OTA Connection | Dovetail |
| Motor | Dual Axis DC Servomotor, DC 12 V |
| GoTo Controller | GoToNova |
| GPS | 32 Channel, Standard |
| Database | 50,000 celestial objects |
| Payload | 7-11 lbs, depending on tubes and attachments |
| Tripod | 1" thick Stainless Steel |
| Battery | 8 AA (not included) |
| Case Weight | 10.56 lbs |
| Telescope |
| Optical Design | Newtonian Optical Tube Assembly (OTA) |
| Clear Aperature | 114mm |
| Focal Length, Ratio | 1000mm, f/8.8 |
| Resolution | 1" |
| Magnitude Limit | 12.4th Magnitude |
| Motor | Dual Axis DC Servomotor, DC 12 V |
| Speed | Dual-Axis, 9-Gear, Electronic (1×,2×,8×,16×,64×,128×,256×,512×,MAX) |
| Eye Pieces | K9, K25 |
| Conversion Lens | 3x |
| Mount | Alt-Azimuth and German Equitorial (Dual Mount) |
| Finder | Red Dot Finder |
| Tracking | Automatic |
| Case Weight | 16.6 lbs. |
| | |
|
|
|
|
|
|
|
|
|
|
