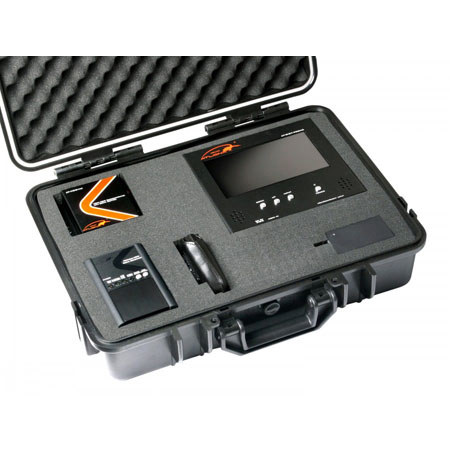

Atlona Technologies Custom Installation Testing Kit with Pelican Case

SKU: ATKITPROHD3 MFR: KIT-PROHD3
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,229.99 $49 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The Atlona KIT-PROHD3 Custom Installation Testing Kit allows you to identify digital connectivity issues in AV (audio-video) systems. It includes an AT-HD800 HDMI Signal Generator, AT-DIS7-PROHD 7" HDMI/VGA/Component Monitor, AT-HDSync HDMI EDID Emulator, 5 hour Battery for the monitor and a Pelican case. The AT-HD800 Portable HDMI Signal Generator enables you to test video resolution/timing of video signals in any digital format. It comes with 13 test patterns including 3D tests, Side by side, Top and Bottom and Frame packing (a mandatory format for all HDMI 1.4 devices).

Featuring an HDMI output and HDMI pass through, the AT-HD800 generator allows switching between test patterns and content from other digital sources. In addition, the HDMI input reads EDID (extended display identification data) information to determine the display's capabilities (type of audio and video formats the display is capable of showing). This minimizes the installation problems and also assists in the EDID troubleshooting.

The AT-HD800 HDMI Signal Generator supports computer testing resolutions such as VGA, SVGA, XGA, SXGA, WUXGA and HDTV testing resolutions such as 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz) and 1080p (24/50/60). Additionally, it supports 3D HDTV testing resolutions such as 720p (50/60Hz) and 1080p 24Hz. With 2-channel LPCM (linear pulse-code modulation) for audio testing, the HDMI signal generator offers encoding of audio signals digitally. In addition to a portable design, it also has a protective rubber case and can be operated via a battery.

The AT-DIS7-PROHD 7" HDMI/VGA/Component Monitor detects any HDMI/DVI/VGA or Component video source and supports resolution of up to 1920x1200. The HDMI/VGA/Component Monitor offers brightness of 400 cd/m2 and display contrast of 500 nits. It allows installers and integrators to view audio/video in real time. It facilitates testing of 3D signals and gives indication of receiving the 3D content. Featuring tripod inputs, the monitor can be rack mounted and meets HDCP (high-bandwidth digital content protection) compliant standards.

With built-in speakers and manual panel control button, the component monitor can be used for applications such as residential/commercial installations, cable/source manufacturers, monitoring and broadcasting applications. The AT-HDSync HDMI EDID Emulator allows duplication of the (Extended Display Identification Data) information. Using non-volatile memory for storing and recalling the default EDID settings, the emulator offers support for HDCP (high-bandwidth digital content protection) handshaking.

Additionally, the AT-HDSync emulator allows you to read, store/modify EDID of the HDMI display and upload the modified EDID to displays. With facility for the HDMI source to boot directly from the AT-HDSync, the HDMI emulator prevents loss of EDID information in complex environments. In addition, the AT-HDSync Emulator features a RS232 control for direct EDID programming and meets DVI (Digital Visual Interface) compliant standards.

What's Included With This Item

  • Atlona AT-HD800 HDMI Signal Generator
  • AT-DIS7-PROHD 7" PRO HD Monitor
  • AT-HDSync HDMI Recorder/Writer and Hot Plug Simulator with RS232 Control
  • AT-BAT-DIS7PRO 5 Hour Battery
  • Pelican Case
  • Atlona Warranty

Key Features

  • HDMI Signal Generator: Allows you to test video resolution/timing of video signals in any digital format
  • HDMI Signal Generator: Comes with 13 test patterns including 3D tests, Side by side, Top and Bottom and Frame packing (a mandatory format for all HDMI 1.4 devices)
  • HDMI Signal Generator: Features an HDMI output and HDMI pass through
  • HDMI Signal Generator: Allows switching between test patterns and content from other digital sources
  • HDMI Signal Generator: HDMI input reads EDID (extended display identification data) information to determine the display's capabilities (type of audio and video formats the display is capable of showing)
  • HDMI Signal Generator: Minimizes installation problems and also assists in the EDID troubleshooting
  • HDMI Signal Generator: Supports computer testing resolutions such as VGA, SVGA, XGA, SXGA, WUXGA and HDTV testing resolutions such as 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz) and 1080p (24/50/60)
  • HDMI Signal Generator: 2-channel LPCM (linear pulse-code modulation) for audio testing
  • HDMI Signal Generator: Offers encoding of audio signals digitally
  • 7" HDMI/VGA/Component Monitor: Detects any HDMI/DVI/VGA or Component video source and supports resolution of up to 1920x1200
  • 7" HDMI/VGA/Component Monitor: Offers brightness of 400 cd/m2 and display contrast of 500 nits
  • 7" HDMI/VGA/Component Monitor: Allows installers and integrators to view audio/video in real time
  • 7" HDMI/VGA/Component Monitor: Facilitates testing of 3D signals and gives indication of receiving the 3D content
  • 7" HDMI/VGA/Component Monitor: Features tripod inputs
  • 7" HDMI/VGA/Component Monitor: Rack Mountable
  • 7" HDMI/VGA/Component Monitor: Meets HDCP (high-bandwidth digital content protection) compliant standards
  • 7" HDMI/VGA/Component Monitor: Features built-in speakers and manual panel control button
  • 7" HDMI/VGA/Component Monitor: Can be used for applications such as residential/commercial installations, cable/source manufacturers, monitoring and broadcasting applications
  • At-HDSync HDMI EDID Emulator: Allows duplication of the (Extended Display Identification Data) information
  • At-HDSync HDMI EDID Emulator: Uses non-volatile memory for storing and recalling the default EDID settings
  • At-HDSync HDMI EDID Emulator: Offers support for HDCP (high-bandwidth digital content protection) handshaking
  • At-HDSync HDMI EDID Emulator: Allows you to read, store/modify EDID of the HDMI display and upload the modified EDID to displays
  • At-HDSync HDMI EDID Emulator: Facility for the HDMI source to boot directly from the At-HDSync
  • At-HDSync HDMI EDID Emulator: Prevents loss of EDID information in complex environments
  • At-HDSync HDMI EDID Emulator: Features a RS232 control for direct EDID programming

Technical Specs

HDMI Signal Generator: Resolutions Computer Testing Resolutions: VGA, SVGA, XGA, SXGA, WUXGA
HDTV Testing Resolutions: 480i, 576i, 480p, 576p, 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60)
3D HDTV Testing: 720p (50/60Hz), 1080p 24Hz
HDMI Signal Generator 2-channel audio testing: Yes
HDMI Signal Generator: EDID Supports Reading EDID from Source and Display
HDMI Signal Generator: Indicators Indicators will shop the resolution outputted and frequency
HDMI Signal Generator: Output HDMI (Type A)
HDMI Signal Generator: Input HDMI (Type A)
HDMI Signal Generator: Power 4 x AA Batteries or 5V/2A Power supply
HD Monitor: Screen Size 7" (17.78 cm) diagonal
HD Monitor: Input Video Resolutions Max - 1080p or 1920x1200
HD Monitor: Native Resolutions Due to this monitor being such a small size, it will downscale all incoming resolutions to 800x600; however, it will accept anything from VGA-WUXGA and 480i-1080p
HD Monitor: Inputs HDMI (DVI Compatible) and HD15 (VGA or Component Compatible)
HD Monitor: Resolutions 480i/p, 576i/p, 720p 24/50/60, 1080i 50/60, 1080p 24/50/60, VGA-WUXGA - 640x480 -1920x1200 (includes all VESA Resolutions)
HD Monitor: Refresh Rate 50/60 Hz
HD Monitor: Latency 13 ms
HD Monitor: Brightness 400 nits
HD Monitor: Contrast 500 nits
HD Monitor: Color Spaces RGB and YPrPb
HD Monitor: Deep Color Support 8, 10 and 12bit - per color (x3)
HD Monitor: Display Viewing Area 7" (17.78 cm) (6.2 W x 4.5" H)
HD Monitor: Embedded Speakers 2W
HD Monitor: Tripod input holes 2 x 1/4" (0.635 cm)
HD Monitor: Power Requirements 5V/1.9A (User can purchase an optional battery)
HD Monitor: Hard Disk Space 5 V / 2.6A DC (Universal)
HD Monitor: Power Consumption 9.6 W
AT-HDSync: HDMI compliance HDMI 1.3c
AT-HDSync: DVI compliance DVI 1.0
AT-HDSync: HDCP compliant Yes
AT-HDSync: Video Bandwidth Single-link 225MHz (6.75 Gbps)
AT-HDSync: Video support Up to 1080p60 & WUXGA (1920x1200 @ 60 Hz)
AT-HDSync: Input 1x HDMI + 1x RS-232
AT-HDSync: Output 1x HDMI
AT-HDSync: HDMI Connector Type A (19-pin female)
AT-HDSync: RS-232 connector DE-9 (9-pin D-sub female)
AT-HDSync: Hard Disk Space 5V DC
Dimensions (W x L x H) HDMI Signal Generator: 5 x 3.5 x 1" (12.7 x 8.89 x 2.54 cm)
HD Monitor: 7.7 x 7.1 x 1" (19.558 x 19.558 x 2.54 cm)
At-HDSync: 3.6 x 3.1 x 1.1" (91 x 80 x 27 mm)
Weight HDMI Signal Generator: 0.4 lb (0.181kg) (without batteries)
HD Monitor: 2.5 lb (1.133kg)
