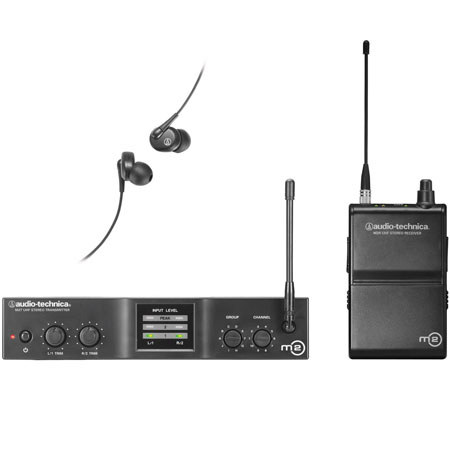

Audio-Technica M2M Wireless In-Ear Monitor System, Includes EP3 Headphones, M2T Stereo Transmitter, M2R Stereo Receiver, Band M: 614.000 - 647.000 MHz

SKU: ATM2M MFR: M2M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$799.00 List Price

Our Price

$599.00 $24 per week
Free Overnight Shipping
Qty:
Add to Wishlist

Protect your investment

About the Audio-Technica M2M

The Audio-Technica M2M Wireless In-Ear Monitor System is designed to make professional in-ear monitoring features accessible for performers who want to be free from the problems associated with floor wedges. The stereo monitor system offers Personal Mix Control, which gives each musician volume and mix control of two independent signals on stage, via easy-to-use controls on the M2R stereo body-pack receiver.

The wireless UHF M2T Stereo Transmitter provides a choice of 100 selectable frequencies and is equipped with two XLR 1/4" combo input connectors into which users can connect line-level inputs. While up to 10 complete M2 systems may be used on stage simultaneously, any number of M2R stereo receivers may be used on the same frequency with a single M2T stereo transmitter. These rugged systems are built to stand up to the inevitable bumps of life on the road, delivering clear, natural sound for touring and installed-sound uses.

Audio-Technica M2M Includes

  • Audio-Technica EP3 Headphones
  • M2T Stereo Transmitter
  • M2R Stereo Receiver
  • EP3 Earphone
  • Frequency Sticker
  • Flexible Antenna
  • AC Adapter
  • Rack Mount Adapters
  • Audio-Technica 2 Years Limited Warranty

Audio-Technica M2M Features

  • High-fidelity sound with clean, articulate mix allows you to hear yourself better at lower volume
  • 100 selectable UHF channels
  • Up to 10 simultaneous systems per frequency band
  • Three receiver modes: Personal Mix, stereo and mono
  • Personal Mix Control allows volume and mix control of two independent signals at the receiver
  • 3.5 mm line-in jack connects to ambient microphone, click track & more
  • LED indicators provide easy-to-read level monitoring
  • XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
  • Adjustable squelch eliminates annoying static
  • Pilot tone protects against RF interference when the transmitter is turned off
  • Limiter (defeatable) helps protect your hearing from sudden peaks
  • Portable system is quick to load and set up
  • Reduces on-stage audio clutter for better overall mix & less feedback
  • Use any number of M2R Stereo Receivers (with Personal Mix Control) on the same frequency
  • Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation
  • Personal fit with 3 sizes of rubber eartips plus ear-conforming foam tips
  • Auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input

Audio-Technica M2M Specifications

Operating Frequencies Band M: 614.000 to 647.000 MHz, 100 frequencies
Minimum Frequency Step 25 kHz
Modulation Mode FM stereo
Maximum Deviation ±40 kHz
Dynamic Range 90 dB (typical), A-weighted
Total Harmonic Distortion <1% at (1 kHz, ±20 kHz Deviation)
Operating Range 100 m (300'), typical
Operating Temperature Range -5deg. C (23deg. F) to +50deg. C (122deg. F)
Frequency Response 60 Hz to 13 kHz (+/- 3 dB)
Simultaneous Use 10 channels per band (maximum recommended)
Receiver: System Double conversion superheterodyne
Receiver: RF Sensitivity 20 dBuV (at 60 dB S/N ratio, 50 ohms termination)
Receiver: Headphone Output Connector 3.5 mm TRS stereo phone jack
Receiver: Headphone Output Power 65 mW (at 32 ohms)
Receiver: Antenna Input SMA-type, 50 ohms
Receiver: Aux Input Connector 3.5 mm TRS stereo phone jack
Receiver: Batteries 2 x 1.5V AA (not included)
Receiver: Battery Life 8 hours (alkaline)
Transmitter: RF Power Output 10 mW/50 mW (switchable), 50 ohms
Limited to 10 mW within 863 MHz to 865 MHz
Transmitter: Spurious Emissions Following federal and national regulations
Transmitter: Input Connections XLRF-type/6.3 mm stereo (1/4") combination connector
Pin 1 and Sleeve: Ground
Pin 2 and Tip: Hot
Pin 3 and Ring: Cold
Transmitter: Maximum Input Level XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu
6.3 mm (1/4") mono, unbalanced: +26 dBu
Transmitter: Loop Output Connector XLRM-type connector
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold
Transmitter: Power Requirements 12-18V DC, 600 mA
Transmitter: Antenna Attached whip
Dimensions (WxDxH) Receiver: 70.0x25.0x110.0mm / 2.75x0.98x4.33"
Transmitter: 210.0x132.0x44.0mm / 8.26x5.19x1.73"
Weight Receiver: 110g / 3.88oz (without batteries)
Transmitter: 870g / 30.68oz (without accessories)
