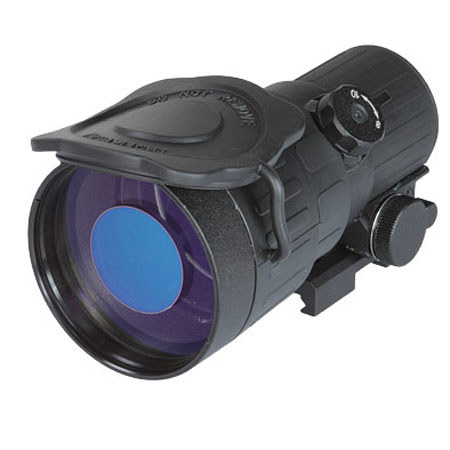

ATN PS22-3 1x Front Mounted Night Vision System, 64 lp/mm Resolution, 10m to infinity Range of Focus, 21mm Exit Pupil, Waterproof

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$4,099.00 List Price

Our Price

Free Expedited Shipping
Add to Wishlist

About the ATN PS22-3

The ATN PS22-3 1x Front Mounted Night Vision System is an attachment for a Daytime Riflescope with 1x Magnification that converts a scope into a high-quality very accurate Night Vision Weapon Sight. The ATN PS22-3 mounts in front of a Daytime Scope. Re-zeroing of the scope is not required. The ATN PS22-3 comes standard with 7/8" weaver mount. There is also Adapter for ARMS quick release mount, optional Ring Adapters allow to mount unit onto the objective of the Day Scope. The IR Illuminator can be mounted onto the optional Picatinny Rail.

This ingenious setup allows the shooter to go from day to night in less then 30 seconds without tools, without changes in eye relief and remain zeroed all around the clock. The ATN PS22-3 Scope is a complex optical-electronic system. The Night Vision Device contains an Image Intensifier Tube assembly with an integrated high voltage power source and the three volt battery housing.

ATN PS22-3 Includes

  • ATN IR450-B4 Infrared Illuminator
  • Instruction Manual
  • Lens Tissue
  • Mil-Spec Hard Case
  • 2 x Lithium Batteries
  • Quick Release Mount
  • Remote Control Unit
  • Lens Cap
  • Back Cap
  • Picatinny Rail
  • Light Suppressor for Scopes with 42-63 mm Lens Diameter
  • Light Suppressor for Scopes with 30-42mm Lens Diameter
  • Light Suppressor for Trijicon ACOG Scopes
  • ATN 2 Years Limited Warranty

ATN PS22-3 Features

  • Easily changes daytime scope to Night Vision
  • Mounts in front of the daytime scope, no re-zeroing required
  • Multi-coated all-glass optics
  • Fast catadioptic front lens system
  • Large 21 mm output window
  • Lightweight and rugged
  • Comes with Quick Release Mount
  • Optional 7/8" weaver mount
  • Optional Scope Mounting System attaches the PS22 unit to the objective of the day scope (25...62 mm diameter)
  • Automatic brightness control
  • Resistance to severe conditions
  • Up to 60 hours of continuous operation with one Lithium battery
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN PS22-3 Specifications

Total Darkness IR System Yes
"SMART" Technology No
IIT Generation 3
Photocathode Type GaAs
Resolution 64 lp/mm
Signal to Noise Ratio 22 Typical
Figure of Merit 1600 Typical
MTTF - Mean Time Before Failure 10000 hours
Magnification 1x
Lens System F1.44, 80 mm
Proshield Lens Coating Yes
FOV 13deg.
Exit Pupil 21mm
Range of Focus 10m to infinity
Diopter Adjustment No
Controls Direct
Remote Control Yes
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Infrared Illuminator Detachable IR450
IR Indicator Yes
Low Battery Indicator No
Power Supply 1 x 3 V CR123A type battery
Battery Life 60 hrs
Reticle System No
Windage & Elevation Adjustment No
Environmental Rating Waterproof
MIL-STD-810 Yes
Operating Temperature -40 to +50 deg.C
Storage Temperature -50 to +70 deg.C
Dimensions 5.9x3.2x2.8" (14.98x8.12x7.11cm)
Weight 1.4 lbs (0.63 kg)
