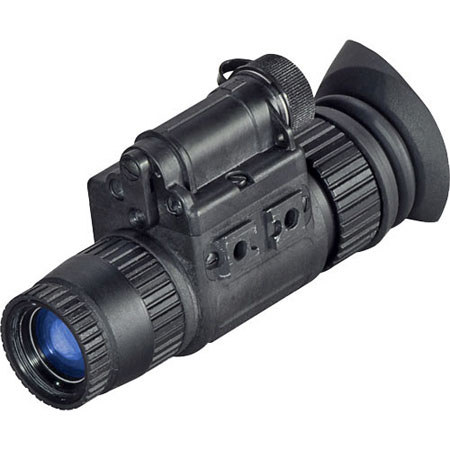

ATN NVM14-3A 1x Waterproof Night Vision Monocular, 64-72 lp/mm Resolution, F1.2 27mm Lens System, 0.25m-Infinity Focus Range

SKU: ATNNVM143A MFR: NVMPAN143A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,299.00 List Price

Our Price

$3,169.00 $124 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the ATN NVM14-3A

The ATN NVM14-3A 1x Waterproof Night Vision Monocular is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision System that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus and eyepiece focus. The Night Vision Device is also equipped with an Infrared light-emitting source.

The ATN NVM14-3A Night Vision System utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the Monocular consists of an objective lens, an Image Intensifier Tube and an eyepiece.

Even under unsteady brightness conditions, Automatic Brightness Adjustment System always keeps the IIT brightness level constant. The Automatic Protective System controls the existing illumination level through the photo receiver. If the illumination level surpasses 100-300 lx for the following 10 seconds, the Monocular will shut off automatically.

ATN NVM14-3A Includes

  • ATN NVM14-3A 1x Waterproof Night Vision Monocular
  • Instruction Manual
  • Lens Tissue
  • 1 x Lithium Battery
  • Neck Cord
  • Lens Cap
  • Soft Carrying Case
  • Battery Adapter
  • ATN 2 Years Limited Warranty

ATN NVM14-3A Features

  • Compact, rugged design
  • Weapon mountable
  • Head or helmet mountable for hands-free usage
  • Auto brightness control
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Utilizes either CR123A lithium battery or AA Alkaline. Adapter included
  • Compatible with most IR lasers
  • Adaptable for use with cameras
  • Total Darkness Technology with built-in Infrared illuminator and flood lens
  • Optional patented Life Tracker System available for measuring hours of operation
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN NVM14-3A Specifications

Total Darkness IR System Yes
"SMART" Technology No
Multi-Purpose System Yes
IIT Generation 3
Photocathode Type Thin Film GaAs
Resolution 64-72 lp/mm
Signal to Noise, minimum 26 Typical
Figure of Merit 1800 Typical
MTTF - Mean Time Before Failure 10000 hours
Magnification 1x
Lens System F1.2, 27mm
Proshield Lens Coating Yes
FOV 40deg.
Range of Focus 0.25 m to infinity
Diopter Adjustment -6 to +2
Controls Digital
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (Built-in with flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply (1) 3 V lithium, or (1) AA Alkaline
Battery Life 50 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 deg.C
Storage Temperature -50 to +70 deg.C
Dimensions 120x49x69mm / 4.72x1.92x2.71"
Weight 0.34 kg / 0.74 lbs
