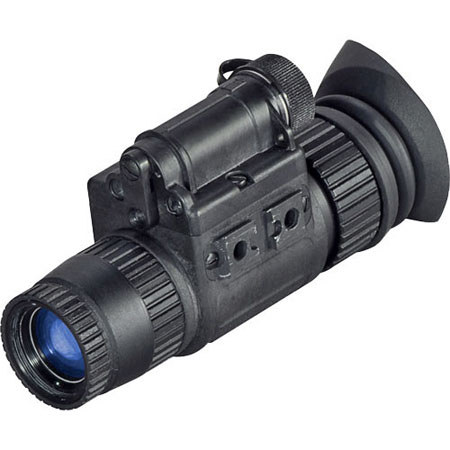

ATN NVM14-CGT 1x Waterproof Night Vision Monocular, 45-54 lp/mm Resolution, F1.2 27mm Lens System, 0.25m-Infinity Focus Range

ATN
SKU: ATNNVM14CGT MFR: NVMPAN14C0

List Price: $1,949.00

Our Price

$1,899.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About ATN NVM14-CGT

The ATN NVM14-CGT 1x Waterproof Night Vision Monocular is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision system that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus and eyepiece focus. The Night Vision Device is also equipped with an Infrared light-emitting source.

The ATN NVM14-CGT Night Vision Device utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the Monocular consists of an objective lens, an Image Intensifier Tube and an eyepiece. Even under unsteady brightness conditions, Automatic Brightness Adjustment System always keeps the IIT brightness level constant. The Automatic Protective System controls the existing illumination level through the photo receiver. If the illumination level surpasses 100-300 lx for the following 10 seconds, the monocular will shut off automatically.

ATN NVM14-CGT Features

  • Compact, rugged design
  • Waterproof
  • Weapon mountable
  • Head or helmet mountable for hands-free usage
  • Auto brightness control
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Utilizes either CR123A lithium battery or AA Alkaline. Adapter included
  • Compatible with most IR lasers
  • Adaptable for use with cameras
  • Total Darkness Technology with built-in Infrared illuminator and flood lens
  • Optional patented Life Tracker System available for measuring hours of operation
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN NVM14-CGT Specifications

Total Darkness IR System
Yes
"SMART" Technology
No
Multi-Purpose System
Yes
IIT Generation
CGT
Photocathode Type
Multi - Alkali
Resolution
45-54 lp/mm
Signal to Noise, minimum
16-22
Figure of Merit
<1250
MTTF - Mean Time Before Failure
10000 hours
Magnification
1x
Lens System
F1.2, 27 mm
Proshield Lens Coating
Yes
FOV
40deg.
Range of Focus
0.25 m to infinity
Diopter Adjustment
-6 to +2
Controls
Digital
Automatic Brightness Control
Yes
Bright Light Cut-off
Yes
Automatic Shut-off System
Yes
Infrared Illuminator
Yes (Built-in with flood lens)
IR Indicator
Yes (in FOV)
Low Battery Indicator
Yes (in FOV)
Power Supply
(1) 3 V lithium, or (1) AA Alkaline
Battery Life
60 hrs
Environmental Rating
Waterproof
MIL-STD-810
Complies
Operating Temperature
-40 to +50 deg.C
Storage Temperature
-50 to +70 deg.C
Dimensions
120x49x69mm / 4.72x1.92x2.71"
Weight
0.34 kg / 0.74 lbs
