ATN

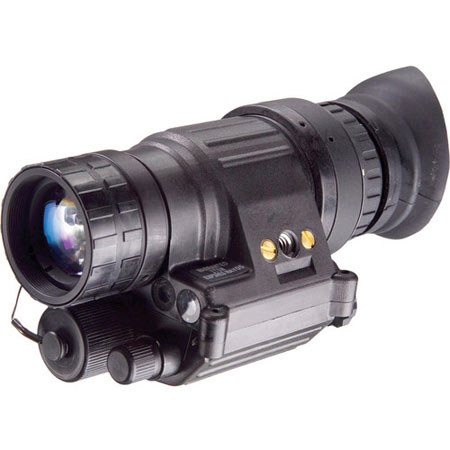

ATN PVS14-3P 1x Night Vision Monocular, 64 lp/mm Resolution, 0.25m to infinity Focus Range, F1.2, 26mm Lens System, Waterproof

SKU: ATNPVS143P MFR: NVMPPVS143P
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,299.00 List Price

Our Price

$4,199.00
Free Shipping
Qty:

Add to Wishlist

About the ATN PVS14-3P

The ATN PVS14-3P 1x Night Vision Monocular sets the standard for lightweight rugged NV monoculars. This NV device is engineered and tested to perform in harsh weather and demanding battlefield conditions. At the core of this monocular is the latest thin-film, autogated night vision imaging technology from ITT. The ITT Pinnacle imaging tube is housed in a durable, mountable, military spec monocular. Enhance contrast under different light conditions by adjusting image brightness with manual gain control and even operate with confidence at dusk/dawn using the included daylight filter.

Workhorse of the US military and law enforcement operatives, the PVS14 night vision monocular is a dependable tactical device for surveillance, target acquisition and terrain navigation. Mount it with close quarter battle sight or day/night adapter for night engagements when your equipment can be the difference between mission success and failure. Autogated image intensifier tube operates to improve image quality in dynamic lighting conditions and automatic voltage regulation reduces blooming artifacts caused by bright light, protecting your eyes and the intensifier tube from damage. This NV monocular is ready to withstand the rigors of a wide range of tactical applications.

ATN PVS14-3P Includes

  • ATN PVS14-3P 1x Night Vision Monocular
  • Instruction Manual
  • Lens Tissue
  • Soft Carrying Case
  • Neck Cord
  • Lens Cap
  • 1.5 volt AA battery
  • Demist shield
  • Head Mount Assembly
  • Sacrificial Filter
  • ATN 2 Years Limited Warranty

ATN PVS14-3P Features

  • Gen 3 Image Intensifier: Generation 3 Pinnacle intensifier tubes from ITT feature automatic brightness control and is protected from damage by fully-automated sensors that protect the unit from bright light
  • Gen 3 Image Intensifier: The exceptional signal-to-noise ratio minimizes distortion, ensuring a clear and detailed viewing under all conditions
  • Autogated Thin-Film Photocathode: Autogating constantly operates to improve image quality in dynamic lighting conditions. Automatic voltage regulation and a thin ion barrier reduce blooming artifacts caused by bright points of light and protects the intensifier tube from damage
  • Manual Gain Control: Variable gain control enhances your control and performance in various light conditions
  • User-Friendly Controls: Easily accessible 3-position switch allows quick use Off, On, Momentary and Constant IR functions
  • Functionality: Can be mounted for a variety of uses; head mount, helmet mount, weapon mount. Can also be used handheld or adapted for photo and video applications
  • Construction: Mil-Spec 810 design is light weight, rugged and waterproof to 66 ft (20 m). This monocular is engineered and tested to perform in harsh weather and demanding battlefield conditions
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN PVS14-3P Specifications

Total Darkness IR System Yes
"SMART" Technology No
Multi-Purpose System Yes
IIT Generation 3P
Photocathode Type GaAs
Resolution 64 lp/mm
Signal to Noise Ratio 24 Typical
Figure of Merit 1600 Typical
MTTF - Mean Time Before Failure 10,000 hours
Magnification 1x
Lens System F1.2, 26 mm
Proshield Lens Coating Yes
FOV 40deg.
Range of Focus 0.25 m to infinity
Diopter Adjustment -5 to +2
Controls Direct
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Low Battery Indicator Yes
Power Supply (1) 1.5 Volt AA size
Battery Life 50 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 deg.C
Storage Temperature -50 to +70 deg.C
Dimensions 4.5x2.2x2" (11.43x5.58x5.08cm)
Weight 0.68 lbs (0.3 kg)
