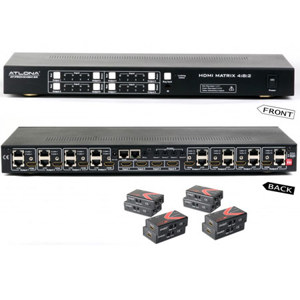

Atlona 4x8 HDMI Matrix Switch with 8x Cat5 Receivers & 3D Support

Key Features

• HDMI 1.3b, HDCP and EDID compatible

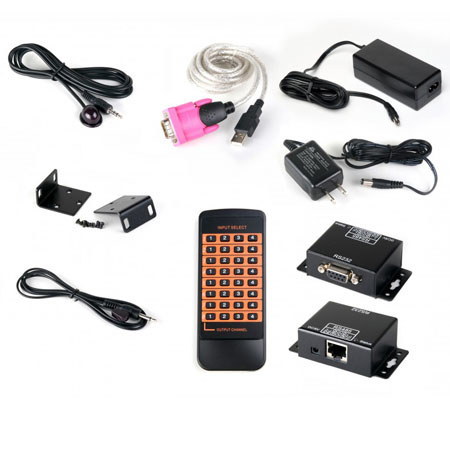

• 8 x CAT5/6/7 receivers are included
• Allows up to four HDMI sources to be independently switched to eight HDMI outputs, where each output is featured with HDMI and Twisted pair connections and both are active at the same time
• The eight outputs can show the same or different source simultaneously
• Supports high definition resolutions up to 1920x1200 or 1080p
• Supports all latest HDMI audio formats including Dolby TrueHD and DTS-HD
• Switcher is featured with IR call back function which allows each remote location to send IR signals though CAT5/6/7 receivers back to the switch and further down to the nearby sources
• Each CAT5/6/7 output can go up to 165ft @ 1080p on CAT5/6 cables and up to 250ft @ 1080p on the CAT7 cable (tested with Tyco wire). If more distance is required, Atlona offers CAT5/6/7 repeater unit which can double the distance and allow chain up to 6 units
• Each input and output port is able to support HDMI or DVI signal. For DVI signal adapter will be required
• Six switching modes: panel buttons, local IR, IR call back from remote locations, RS485, RS232and TCP/IP
• Rack Mountable, comes with 19-inch Rack-Ears
