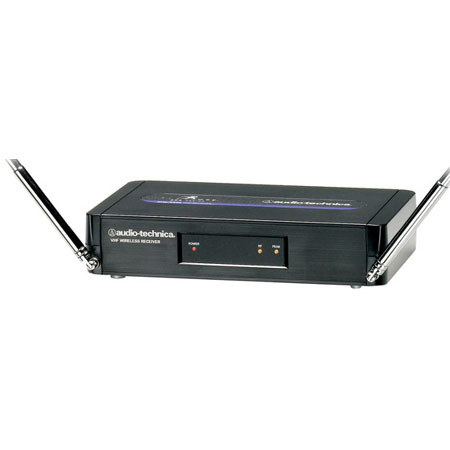

Easy operation and clear, natural sound quality |
|
Reliable performance and durable construction |
|
Advanced dipole antenna system for extended operating range |
|
Power, RF, and AF Peak indicators |
|
Volume control, ¼" output jack and space-saving power supply |
|
Rugged unidirectional dynamic element on handheld microphone/transmitter |
|
Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters |
|
Professional locking connector on UniPak body-pack transmitter |
| Transmitter: RF Power Output | 10 mW High position, 2 mW Low position, typical |
| Transmitter: Spurious Emissions | Under federal regulations |
| Transmitter: Dynamic Range | >=90 dB, A-weighted |
| Transmitter: Microphone Element | Dynamic unidirectional |
| Transmitter: Battery | 9V (NEDA type 1604) alkaline, not included |
| Transmitter: Current Consumption | 30 mA typical |
| Transmitter: Battery Life | Approximately 15 hours in High position
Approximately 20 hours in Low position
(depending on battery type and use pattern) |
| Transmitter: Dimensions | 9.50" (241.3 mm) long,
2.10" (53.3 mm) maximum diameter |
| Transmitter: Net Weight | 12.7 oz (360 g) (without battery) |
| Receiver: Receiving System | Non-diversity, single-channel, dual antenna system |
| Receiver: Image Rejection | 50 dB minimum |
| Receiver: Signal-to-noise Ratio | 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz |
| Receiver: Total Harmonic Distortion | <=1% (10 kHz deviation at 1 kHz) |
| Receiver: Sensitivity | 20 dBµV for 60 dB S/N (IEC-weighted) |
| Receiver: Audio Output | 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load) |
| Receiver: Output Connector | 1/4" TS ("mono") phone jack |
| Receiver: Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Receiver: Dimensions | 7.48" x 1.65" x 5.12" (190.0 x 42.0 x 130.0 mm) W x H x D |
| Receiver: Net Weight | 11.0 oz (311 g) |
| System: Operating Frequency | VHF high band, 169 MHz to 172 MHz |
| System: Number of Channels | Fixed channel |
| System: Frequency Stability | ±0.005% |
| System: Modulation Mode | FM |
| System: Maximum Deviation | ±15 kHz |
| System: Operating Range | 200' typical |
| System: Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| System: Frequency Response | 80 Hz to 13 kHz |
| | |
