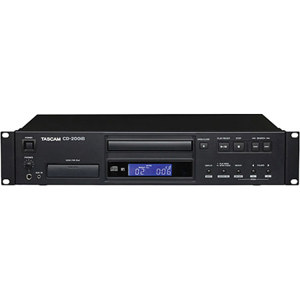

Tascam CD-200iB Rackmount CD Player with iPod Dock
Tascam

Tascam CD-200iB Rackmount CD Player with iPod Dock (Balanced Audio Outputs), 20Hz-20kHz Frequency Response, 90dB Dynamic Range

SKU: AUTSCD200IB MFR: CD-200IB
What's Included
What's Included With This Item:
  • Tascam CD-200iB Rackmount CD Player with iPod Dock
  • Power Cord
  • Mounting Hardware
  • Wireless Remote
  • 2 x AA Batteries
  • Tascam 1 Year Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$399.99
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

Tascam's CD-200iB is a unique combination of rackmountable CD player with a dock for Apple's iPod music player. The CD player uses the TEAC CD-5020A transport, custom-designed for audio playback with a smooth loading drawer and low clamping noise. The high-quality internal clock provides smoother sound and decreased jitter. The CD-200iB includes both balanced XLR and unbalanced RCA outputs for both the CD and iPod playback.

A sliding drawer reveals a connector dock for any Apple iPod. The iPod can be controlled from the CD-200iB's front-panel or wireless remote, including transport control, album navigation and more. The iPod can be charged from the dock connector and video can even be played through an S-video jack on the rear panel.

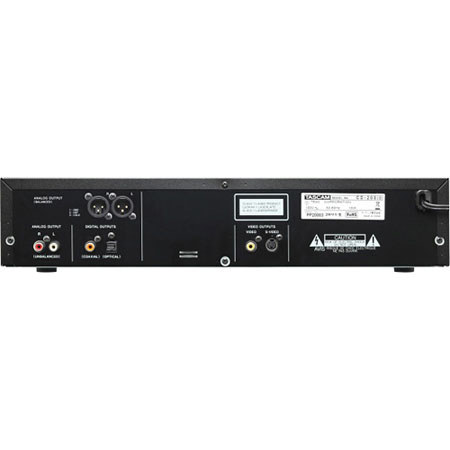

Tascam's CD-200iB has balanced XLR and unbalanced RCA analog outputs and S/PDIF digital outputs on coaxial and optical jacks. MP3 and WAV file playback is supported from CD media. The front-panel Folder navigation buttons change folders on CDs and albums on the iPod.

A wireless remote control with numerical track select buttons is also included. Tascam's unique CD-200iB is a natural choice for conference rooms, health clubs and any other installations requiring playback from CD and iPod media.

What's Included With This Item

  • Tascam CD-200iB Rackmount CD Player with iPod Dock
  • Power Cord
  • Mounting Hardware
  • Wireless Remote
  • 2 x AA Batteries
  • Tascam 1 Year Limited Warranty

Key Features

  • 2RU design for installation in standard equipment racks
  • Plays audio CDs, MP3 CDs and WAV CDs with Intro check and shock-proof memory
  • Sliding iPod dock provides a simple connection for your iPod that allows you to output its audio and video files. The dock also provides power to the iPod
  • Composite and S-Video outputs are provided for iPod use
  • CD TEXT and ID3 tag support is built-in
  • Play modes include Continue, Random, Program, Repeat Single and Repeat All, plus Folder Repeat for data CDs
  • Index search function
  • Memory buffer for skip protection
  • Front-panel 3.5mm stereo mini aux input
  • Stereo XLR and RCA line-level outputs
  • Optical and coaxial S/PDIF digital output
  • ±14% pitch control available on analog output
  • Front-panel headphone jack with volume control for easy monitoring
  • Full-function wireless remote included for control over CD and iPod functions

Technical Specs

Compatible disc formats CD-DA (12-cm/8-cm), CDROM (12-cm/8-cm) ISO 9660 LEVEL 1/2/ROMEO/JOLIET format (CD-R/CD-RW DISC compatible)
Playable format Audio CD (CD-DA), MPEG1 Audio Layer III (MP3) WAV
MP3 Playback Audio Mode STEREO/JOINT STEREO/DUAL CHANNEL/MONO
MP3 Playback Sampling Frequency 32 kHz/44.1 kHz/48 kHz
MP3 Playback Bit Rate 32 kbps - 320 kbps and VBR
WAV Playback Sampling Frequency 8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz
WAV Playback Sampling Bit Rate 8 bit/16 bit
Audio CD Playback Sampling Frequency 44.1 kHz
Audio CD Playback Sampling Bit Rate 16 bit
Audio CD Playback Number of Channels 2
Aux In Jack Connector 3.5 mm stereo mini jack
Aux In Reference Input Level -16 dBV
Aux In Maximum Input Level 0 dBV
Aux In Input impedance 22 kohm
Analog Output Terminal Connector RCA pin jack
CD Reference Output Level -10 dBV
CD Maximum Output Level +6 dBV
Output Impedance: 200O
Phone Jack Connector Standard Stereo Jack
Phone Jack Maximum Output Level 20 mW + 20 mW
Phone Jack Load Impedance 32O
Digital O/P (Optical) Terminal Connector Optical Jack
Digital O/P Optical Signal Format IEC-60958 Type II (S/PDIF)
Digital O/P Coaxial Terminal Connector RCA Pin Jack
Digital O/P Coaxial Signal Format IEC-60958 Type II (S/PDIF)
Video Output Connector RCA Pin Jack
Video Output Connector Signal Format Composite video signal
Video Output Impedance 75O
S-VIDEO Output Connector 4-pin mini-DIN connector
S-VIDEO Signal Format Separate video signal
Audio Frequency Response 20 Hz - 20 kHz ±1.5 dB
Audio Signal-to-Noise Ratio (S/N) More than 90 dB (20 kHz LPF + A-weighted)
Audio Dynamic Range More than 90 dB (20 kHz LPF + A-weighted)
Audio Total Harmonic Distortion Less than 0.01% (1 kHz, 20 kHz LPF)
Audio Channel Separation More than 90 dB (1 kHz, 1 kHz BPF)
Power Requirements AC 120 V, 60 Hz
Power Consumption 12 W
Operating Temperature 5 to 35 Deg. C
Inclination of installation 5 Deg. or less
Dimensions (W x H x D) 18.94 x 3.72 x 11.73in / 481 x 94.5 x 298mm
Weight 10.36lb / 4.7kg
