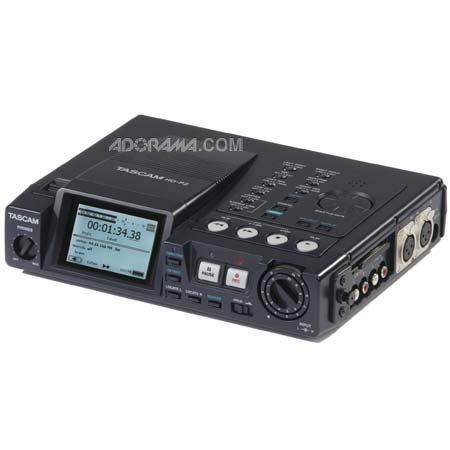

Tascam HD-P2 Portable Compact Flash & Microdrive High-Definition Stereo Audio Recorder

Mfr. Part: HDP2     SKU: AUTSHDP2

Free Shipping view details

Product Rating
(1 Rating)
41
Write a Review
Read 1 Review

Item Includes
Tascam HD-P2 Portable High-Definition Stereo Audio Recorder - AC Adaptor - IFFF1394 Cable - Shoulder Strap - Tascam 1 Year Parts and 90 Day Labor Warranty

Description
The Tascam HD-P2 Portable High-Definition Stereo Audio Recorder is the professional solution for challenging live and on-location applications. Co-developed with Frontier Design Group, it records at up to 192kHz/24-bit resolution to Compact Flash media and its audio files are instantly available to DAWs through the built-in high-speed FireWire computer connection. Unlike consumer MP3 sketchpads, the professional HD-P2 incorporates high-end features like a SMPTE timecode input for synchronization to external devices while in record or playback.

The user interface is designed for fast and intuitive use under stressful one-take-only situations and its large, angled LCD is perfect for any application from over-the-shoulder location recording to concert recording and commercial use. The HD-P2 records in stereo from 44.1kHz to 192kHz, at 16- or 24-bit, to affordable Compact Flash media. Not only is Compact Flash absolutely silent, so no transport noise will show up on your recording, but the recorded audio is written directly as Broadcast WAVE files for immediate use in digital audio workstations. The unit even includes a FireWire jack for the fastest possible transfer of files to your PC or Mac computer.

The professional design of the HD-P2 extends to convenient details that pro users will appreciate. The Retake button allows the user to delete the last recording & set up to re-record with a single button press. As audio is recorded, the file headers are continually re-saved to protect your recording against accidental data loss. Files can be named from the front panel interface or using a PS/2 keyboard, which can also be used to control transport and setup features. On the input side, the unit has a pair of XLR mic inputs with phantom power and analog peak limiting to curb distortion during unpredictable live events. The input level control allows the user to change the level without taking their eyes off the action.

The HD-P2 also features unbalanced RCA ins and outs as well as S/PDIF digital I/O. Monitoring is available through a headphone out - again, with its own ergonomic level control - using a built-in speaker. A built-in microphone is also provided for interviews and educational use. Tascam's HD-P2 comes standard with a full-featured timecode input - making it the most affordable recorder with built-in timecode ever made.

Incoming LTC is connected to the locking XLR input for timestamping your Broascast WAVE files from a central clock. Not only does the recorder timestamp your recorded audio with sample accuracy, the HD-P2 chases incoming timecode during playback for review or loading into an editor. A video clock input allows frame edge resolve to a central blackburst source or use as a lock-and-release timecode slave. There's also a freewheel setting for use with unpredictable timecode sources.

Features
Jog/Shuttle data wheel, separate headphone amp and volume control, dedicated input level and Main volume controls
Front panel system and transport control or PS/2 keyboard input; familiar tape machine-type transport and large 240 x 160-dot backlit display
Supports CF card capacities from 512MB to 8GB with total of 13.5 hrs. at 16-bit/44.1kHz, 2 hrs. at 24-bit/192kHz on 8GB card
Portable stereo high definition recorder with up to 24-bit/192kHz resolution, Firewire and Time Code; 8 x "AA" Alkaline or Rechargeable NiCad or NiMH battery operation
Built-in limiter, 48V phantom power, -20dB Pad, High-pass filter and 10-second pre-record buffer
Writes audio to Compact Flash and Microdrive in Broadcast WAVE File (BWF) format for simplified universal transfer to DAW editing and post production software applications
Windows XP and MAC OSX v.10.13 compatible
Coaxial SPDIF digital I/O, Time Code in, Video and Word Clock In, Firewire output for seamless digital audio, video and DAW integration
Sample Clock refs include SPDIF, NTSC or PAL Video, LTC and Word; comprehensive SMPTE frame rate support
Timestamps Broadcast WAVE recordings from SMPTE input, chase locks to incoming SMPTE timecode, Video clock input resolves to house clock
Tri-level sync support for HDTV applications, includes Frame Lock, Lock and Release and flexible Freewheel settings for erratic timecode sources; Pull-up and Pull-down sample rates included
XLR Mic/Line inputs, RCA Line in/out, built-in mono microphone and speaker for desktop interview applications

Specifications
Recording MediaCompact Flash, Microdrive
File FormatBWF Broadcast Wave File (FAT16/FAT32)
Recording time24 minutes (256 MB Compact Flash, Fs=44.1 kHz 16 bit stereo)
Operating time5 Hours
Sample Rates44.1/48/88.2/96/176.4/192 kHz
Sample Clock refsS/PDIF, Video (NTSC or PAL), LTC, WORD
Quantization16/24 bit
Pre-record bufferUp to 10 seconds
Time code types23.976,24,25,29,29.97 DF/NDF, 30 DF/NDF
Nominal level20 Hz to 20 kHz ±1.0 dB (44.1 kHz/48 kHz)
MIC to Line Out20 to 40 kHz 0.5 dB/-4.0 dB (88.2 kHz/96 kHz)
20 to 80 kHz 0.5 dB/-20 dB (176.4 kHz/192 kHz)
Noise level Trim Max (22 Hz to 22 kHz)Up to -55 dBu Mic to Line Out THD+N
Max Level at 1 kHzUp to 0.01% Mic to Line Out
Trim MinUp to 0.01% 22 kLPF
Crosstalk at 1 kHzOver 80 dB Mic to Monitor Out
Delay44.1 kHz 1.5 msec
192 kHz 0.7 mesc
LimiterAttach time: Up to 25 usec
Release time: Up to 50 msec
Low CutHigh pass 100 Hz cut off -18 dB/OCT
Phantom Power+48 Volt, 10 mA
Input/Output ConnectorsAnalog I/O
MIC Input
XLR-3-31 type
Input/Output Input Impedance1.3 Ohm Balance
Input/Output Mic Input Level-60 dBu (Trim Max) to 13.8 dBu (Trim Min)
Input/Output Internal Mic level-60 dBu (Trim Max) to 13.8 dBu (Trim Min)
Input/Output Headroom16dB/22 dB (with limiter)
Input/Output Maximum Gain46.2 dB
Input/Output Pad20 dBS
LINE Input ConnectorRCA Pin type
LINE Input Impedance10 Ohm
LINE Input Level-46.2 dBV (Trim Max) to 0 dBu (Trim Min)
LINE Input Headroom16 dB
LINE Input Maximum Gain46.2 dB
LINE Output ConnectorRCA Pin type
LINE OutputInput Impedance: 100 Ohm
LINE OutputInput Level: -10 dBV
LINE OutputHead Room: +6 dBV
Headphone Output Connector6 TRS PHONE jack (Tip: L, Ring: R, Sleeve: GND)
Output Power55 mW+55 mW (32 Ohm)
Speaker Output500 mW (16 Ohm)
Digital I/O ConnectorRCA Pin type (Coaxial Input/Output)
Digital I/O Input Impedance75 Ohm (Coaxial Input/Output)
Digital I/O FormatIEC60958 (S/PDIF) (Coaxial Input/Output)
Digital I/O Quantization24 bit (Coaxial Input/Output)
LTC Input ConnectorXLR-3-31
Input Impedance75 Ohm
Video Input ConnectorBNC
Video Input Impedance75 Ohm
Keyboard ConnectorPS/2
Firmware ConnectorIEEE.1394 (6 Pin)
Firmware FormatIEEE.1394 (Asynchoronous)
Firmware Baud Rate400 Mbps
Display LCD240x160 dots with backlight
AC Adapter InputUSA/Canada: 120 V AC, 60 Hz
Europe/U.K.: 230 V AC, 50 Hz
Australia: 240 V AC, 50 Hz
AC Adapter OutputDC12 V
AC Adapter Rash Current600 mA
AC Adapter Power Consumption6 W (CompactFlash)
Battery8 x AA type dry cell (NiMH recommended)
Operating temperature0° to 35° C
Compatible Operating SystemsWindows XP and Macintosh OSX ~10.3
Dimensions (w x d x h)245 x 188 x 60
Weight1.2 kg (without the batteries)
WarrantyTascam 1 year parts and 90 day labor warranty
