Tascam MH-8 8-Channel Headphone Amplifier
Tascam

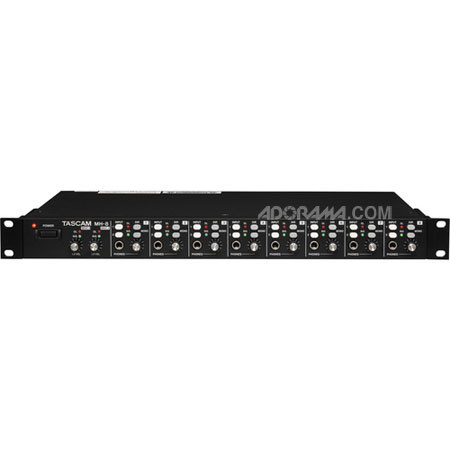

Tascam MH-8 8-Channel Headphone Amplifier, Rackmount Design, Direct and Shared Inputs

SKU: AUTSMH8 MFR: MH-8
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$289.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

Tascam's MH-8 is the ultimate headphone amplifier for studio, stage and installation. Each of the eight stereo outputs gets 250mW per side with three switchable sources available. Two stereo inputs can be shared to any of the outputs and individual stereo direct inputs are available for each of the eight channels. A headphone out can select any one of these inputs, or mix several together. A set of foldback outputs allow you to chain other MH-8s into a system. For the ultimate in routing flexibility and power, nothing beats the MH-8 headphone amp from Tascam.

Key Features

  • (8) stereo 1/4" headphone outputs
  • 250mW + 250mW at 32ohm per channel
  • Each headphone output switchable to input 1, input 2 and direct input source (or a combination of the three)
  • Master input gain controls
  • (16) 1/4" TRS balanced direct inputs
  • (4) XLR balanced inputs (Channels 1 & 2)
  • (2) 1/4" TRS balanced inputs (Chan 1)
  • (2) RCA unbalanced inputs (Chan 2)
  • (4) TRS balanced foldback outputs
  • Ground lift switch and terminal

Technical Specs

Number of Channels 8
Input Connectors 16 x 1/4" TRS Direct Inputs
4 x XLR Inputs
2 x 1/4" Inputs
2 x RCA Inputs
Output Connectors 8 x 1/4" Stereo Headphone Outputs
4 x 1/4" TRS Foldback Outputs
Maximum Output Level 250mW + 250mW
Function Controls 8 x Channel Level Controls
2 x Main Level Controls
8 x Mono Switches
8 x Sets of Input Selector Switches
Display LED Indicators for Signal and Overload
