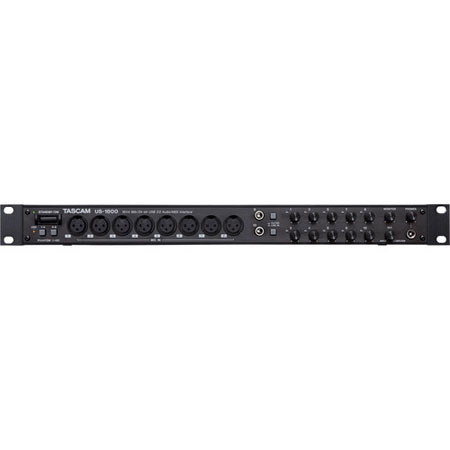

Tascam US-1800 16 Input/4 Output USB 2.0 Audio Interface

SKU: AUTSUS1800 MFR: US-1800
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$399.99 List Price

Our Price

$219.95 $9 per week
Free Overnight Shipping
Add to Wishlist In Stock

About the Tascam US-1800

The US-1800 audio interface from Tascam offers more inputs than any interface in its class. Up to 16 inputs and 4 outputs are transmitted to Mac or Windows over high-speed USB 2.0 connection. The US-1800 features eight XLR microphone inputs with phantom power and 60dB of clean gain. Six balanced line inputs are also provided, as well as stereo S/PDIF digital and MIDI in and out.

Included with the US-1800 is Cubase LE5, the latest workstation software from Steinberg. This 48-track audio workstation includes must-have features like automation, plug-ins, mixing, editing and MIDI tracks. Cubase LE5 uses standard VST plug-ins for adding virtual instruments and effects.

Tascam US-1800 Includes

  • Tascam US-1800 16 Input/4 Output USB 2.0 Audio Interface
  • AC Adaptor
  • Power Card Set for AC Adaptor
  • USB Cable
  • CD-ROM (Containing Driver)
  • DVD-ROM (Cubase LE 5)
  • Cubase LE 5 Quick Starter Guide
  • A Rack-Mounting Screw Kit
  • A Warranty Card
  • Owner's Manual
  • Tascam 1 Year Limited Warranty

Tascam US-1800 Features

  • 16 simultaneous inputs
  • 4 simultaneous outputs
  • 14 analog inputs
  • 8 x XLR microphone inputs with phantom power
  • 2 x 1/4" TRS line/guitar inputs on the front panel
  • 4 x 1/4" TRS line inputs on the rear panel
  • Stereo S/PDIF digital input/output (RCA coaxial)
  • Zero-latency hardware monitoring
  • Independent monitor and headphone outputs
  • Stereo monitor output (DAW return stereo and input mono)
  • 16-channel MIDI input and output
  • USB 2.0 connection to Mac/Windows
  • Up to 24-bit/96kHz audio resolution
  • ASIO and Core Audio support

Tascam US-1800 Specifications

Inputs Analog: 8 x XLR Microphone (front panel)
2 x 1/4" TRS phone Balanced Line (front panel)
4 x 1/4" TRS phone Balanced Line (rear panel)
Digital: 1 x RCA coaxial S/PDIF, 75O
Outputs Analog: 6 x 1/4" TRS phone Balanced Line (rear panel)
1 x 1/4" TRS phone Headphone (front panel)
Digital: 1 x RCA coaxial S/PDIF, 75O (switchable to AES/EBU)
MIDI 2 x 5-pin DIN MIDI In/Out
Connectivity USB 2.0
Sample Rate 44.1, 48, 88.2 and 96kHz
Input Level Microphone:
Nominal: -2dBu (0.615Vrms)
Minimum: -58dBu (0.0009Vrms)
Maximum: +14dBu (3.882Vrms)
Line 9-10:
Nominal: +4dBu (1.228Vrms)
Minimum: -42dBu (0.0062Vrms)
Maximum: +20dBu (7.746Vrms)
Line 11-12:
Nominal: -10dBV (0.3162Vrms)/+4dBu (1.228Vrms)
Maximum: +6dBV (1.995Vrms)/+20dBu (7.746Vrms)
Nominal: -6dBV (0.501Vrms)
Minimum: -52dBV (0.615Vrms)
Maximum: +10dBV (3.162Vrms)
Input Impedance MIC IN 1-8: 2.2kOhm
Guitar 9-10: 700kOhm
LINE IN 9-10: 700kOhm
LINE IN 11-14: 10 kOhm
Coaxial (DIGITAL IN) terminal: 75Ohm
Gain Range Microphone: 55dB
Output Level Line 1-4:
Nominal: +4dBu (1.228Vrms)
Maximum: +24dBu (12.227Vrms)
Nominal: +4dBu (1.228Vrms)
Maximum: +24dBu (12.227Vrms)
Maximum: 50mW + 50mW (1kHz, 1%, 32O load)
Output Impedance Line Out 1-4: 100 ohms
Monitor L/R: 100 ohms
Coaxial (DIGITAL OUT) terminal: 75Ohms
Dynamic Range Output: 115dB RMS unweighted, 118dBA
THD Less than 0.01%, mic in->line out, gain at minimum
Signal to Noise Ratio 96dB or more, mic in->line out, gain at minimum, 44.1kHz
Frequency Response 20Hz-20kHz, +1/-1dB (44.1/48kHz)
20Hz-40kHz, +1/-3dB (88.2/96kHz)
(MIC IN-Line OUT, Gain knob set to minimum, JEITA)
Power Supply AC Input: External PSU, 100-240VAC, 50/60Hz, 1.0A
DC Output: +12V, 2.0A
Power Consumption 7.2W
System Requirements Mac:
PowerPC G4 or Intel processor
OS X 10.5.8 (Intel and PPC), OS X 10.6 (Intel)
USB 2.0 port
PC: Pentium IV 1.4GHz or faster, AMD Athlon 1.4GHz or faster
Windows XP SP2 (32- or 64-bit), Vista SP2 (32- or 64-bit), Windows 7 (32- and 64-bit)
512MB RAM for Windows XP and Vista, 1GB for Windows XP and Vista (64-bit), Windows 7 (32-bit)
2GB RAM for Windows 7 (64-bit)
USB 2.0 port
Operating Temperature 41 to 95 Deg. F (5 to 35 Deg. C)
Dimensions 19 x 11.02 x 1.73" (483 x 280 x 44mm)
Weight 6.8 lb (3.1kg)
