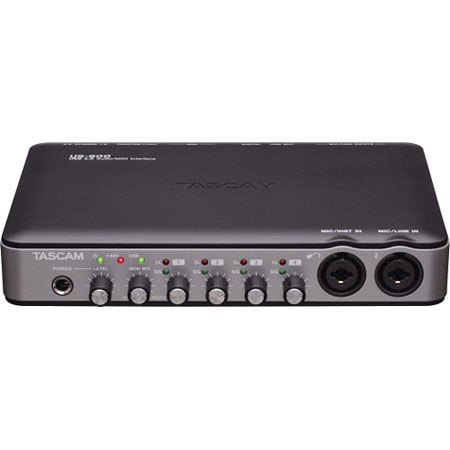

Tascam US-600 USB 2.0 Audio/MIDI Interface
Tascam

Tascam US-600 6 Input/4 Output USB 2.0 Audio/MIDI Interface

SKU: AUTSUS600 MFR: US-600
What's Included
What's Included With This Item:
  • Tascam US-600 6 Input/4 Output USB 2 Audio Interface
  • AC Adaptor
  • Power Card for AC Adaptor
  • USB Cable
  • CD-ROM (Containing Driver)
  • DVD-ROM (Cubase LE 5)
  • Cubase LE 5 Quick Starter Guide
  • Warranty Card
  • Owner's Manual
  • Tascam 1 Year Limited Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$124.99
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Tascam US-600 6-in/4-out USB 2.0 Audio/MIDI Interface is the perfect choice for portable recording of multiple sources from your laptop computer. Four high-definition XLR microphone inputs include phantom power for detailed recording with condenser microphones. All channels can be passed to your computer with 96kHz/24-bit audio resolution.

Each input on the US-600 uses an XLR/TRS combo jack to support microphone or line level sources and includes a signal/clip LED to help you set your input level. Input 1 has an instrument-level switch for direct recording of guitar or bass and a direct monitor path allows musicians to hear their performance without a delay from the computer. On the rear panel, the US-600 includes a pair of unbalanced outputs, MIDI input and output and a stereo S/PDIF digital in and out.

A copy of Cubase LE5 is included - the latest version of Steinberg's 48-track workstation software. VST plug-in support, automated mixing and MIDI tracks allow you to craft large productions without adding any other software. If you want to use your own software, the US-600 supports most Mac and Windows software such as Logic Pro, Live, Nuendo, Digital Performer, Fruity Loops and Pro Tools 9.

What's Included With This Item

  • Tascam US-600 6 Input/4 Output USB 2 Audio Interface
  • AC Adaptor
  • Power Card for AC Adaptor
  • USB Cable
  • CD-ROM (Containing Driver)
  • DVD-ROM (Cubase LE 5)
  • Cubase LE 5 Quick Starter Guide
  • Warranty Card
  • Owner's Manual
  • Tascam 1 Year Limited Warranty

Key Features

  • 24-bit/96kHz audio resolution
  • Four microphone preamps with phantom power, XLR/TRS combo jacks
  • Two unbalanced RCA outputs
  • S/PDIF stereo digital input and output
  • MIDI input and output
  • Direct Monitor function allows zero-latency monitoring of the input
  • Signal Present and Overload LED meters on each input
  • Line Out/Phones level control
  • Monitor mix level control and mono/stereo switch for direct input monitoring
  • Mono/stereo monitoring switch for input 1/2 and 3/4
  • Instrument (high impedance) switch for input 1 with indicator LED

Technical Specs

Sample rate 44.1/48/88.2/96 kHz
Quantization 24-bit
Microphone input Connectors XLR-3-31
Microphone Input impedance 2.2 kOhm
Microphone Nominal input level -14 dBu (0.15 Vrms)
Microphone Minimum input level -57 dBu (0.001 Vrms)
Microphone Maximum input level +2 dBu (0.98 Vrms)
Line inputs Connectors 6.3mm (1/4") TRS jack
Line Input impedance 15 kOhm
Line Nominal input level +4 dBu (1.23 Vrms)
Line Minimum input level -39 dBu (0.008 Vrms)
Line Maximum input level +20 dBu (7.75 Vrms)
Instrument input connectors 6.3 mm (1/4") TRS jack
Instrument Input impedance 1 MOhm
Instrument Nominal input level -13 dBV (0.22 Vrms)
Instrument Minimum input level -56 dBV (0.001 Vrms)
Instrument Maximum input level +3 dBV (1.41 Vrms)
Line outputs connectors RCA
Line Output impedance 200 Ohm
Line Nominal output level -10 dBV (0.316 Vrms)
Line Maximum output level +6 dBV (2 Vrms)
Headphones output connectors 6.3mm (1/4") stereo phone jack
Headphones Maximum output 49 mW + 49 mW (1 kHz, THD 0.1 %, 32 Ohm)
Coax Digital IN Connector RCA pin jack
Coax Digital IN format IEC60958-3 (SPDIF)
Coax Digital Out Connector RCA pin jack
Stereo digital output Format IEC60958-3 (SPDIF)
MIDI input (MIDI IN) connector 5-pin DIN connector
MIDI input (MIDI IN) Format Standard MIDI format
MIDI output (MIDI OUT) connector 5-pin DIN connector
MIDI output (MIDI OUT) Format Standard MIDI format
Control I/O USB connector 4-pin USB type B
Control I/O USB Format USB2.0 High speed (480 Mbit/s)
Frequency response 20 Hz-20 kHz +0.5/-1.0 dB (44.1/48 kHz, JEITA)
20 Hz-40 kHz +0.5/-1.5 dB (88.2/96 kHz, JEITA)
Signal-to-noise ratio 98 dB (LINE IN to LINE OUT with Gain knobs at minimum, 44.1 kHz, JEITA)
Total harmonic distortion 0.0045 % (LINE IN to LINE OUT with Gain knobs at minimum, JEITA)
System requirements- Windows Windows XP, 32 bit, SP3 or later
Windows XP, 64 bit, SP2 or later
Windows Vista, 32 bit or 64 bit, SP2 or later
Windows 7, 32 bit or 64 bit
Supported computer systems:
Windows compatible computer with a USB 2.0 port
CPU/clock:
Pentium 4, 1 GHz or faster
AMD Athlon, 1 GHz or faster
or equivalent processor
Memory:
1 GB or more
Protocols:
ASIO 2, WDM (MME)
System requirements- Macintosh Supported operating systems: Mac OS X 10.5.8 or later
Mac OS X 10.6.3 or later
Supported computer systems:
Apple Macintosh series equipped with a USB port as standard equipment
CPU/clock:
Intel processor or PowerPC G4, 1 GHz or faster
Memory:
1 GB or more
Protocols:
CoreAudio, CoreMIDI
Power supply AC adapter Tascam PS-P520 (included)
Ac Input:
100-240V, 1A
DC Output:
+5V, 2A
Power consumption 5W
Operating temperature range 5-35 Deg. C
Dimensions (W x H x D) 222 x 41 x 151 mm/8.74 x 1.61 x 5.94" (without projections)
222 x 44 x 165 mm/ 8.74 x 1.73 x 6.49" (with projections)
Weight 0.58 kg / 1.27 lbs
