Avocent AMX5010 Digital 64 Port Matrix KVM Switch, 1600x1200 Graphics Resolution, 16 Remote User

See all Avocent items

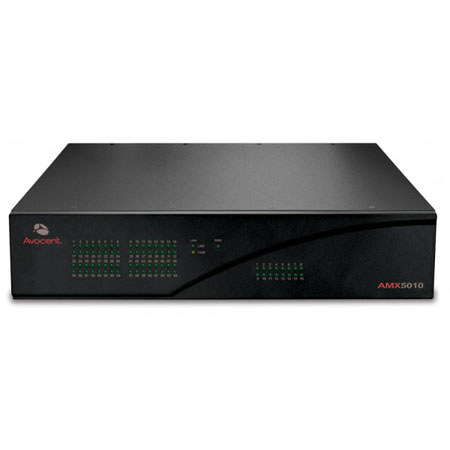

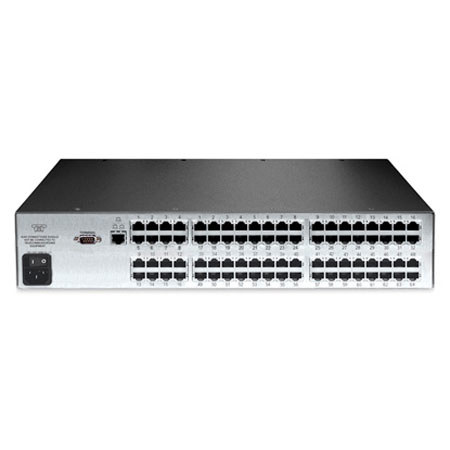

Avocent AMX5010: Picture 1 thumbnail Avocent AMX5010: Picture 2 thumbnail
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Avocent AMX5010: Picture 1 regular $11,599.00

About Avocent AMX5010

The Avocent AMX5010 is a 16x64 analog matrix switching solution that provides unmatched advancements in increased access and efficient scalability. The powerful Avocent AMX5010 solution increases the number of users with simultaneous access and provides access to all major server platforms and serial devices. Avocent's advanced AMWorks software is also included with the AMX5010 switch for central administration.

The Avocent AMX5010-AM features the OSCAR on-screen management tool, which lets you conveniently switch between connected devices. If you require centralized administration of the Avocent AMX5010, AMWorks management software is included free with each switch. The AMWorks Java-based system administration tool supports customized user profiles and multi-level security.

The AMWorks allows system administrators to build a user database with assigned access and password protection for each server. Administrators can view all activities that take place on the KVM system, including user login, switches made to servers and changes made to the system connections or setup. The database is centrally stored and can be downloaded to the switch via the network connection port available on all AMX5010-AM units.

Avocent AMX5010 Features

  • Provides access to all major server platforms and serial devices
  • Ideal for growing IT infrastructures with multi-rack, multi-device, multi-platform deployments
  • Provides full non-blocked access to servers
  • Provides ease of use with front panel LED indicators
  • Advanced JAVA-based AMWorks included with the AMX5010 switch
  • Access - Full non-blocked, each switch supports sixteen users and 64 servers
  • Expandability/Scalability - Architecture makes it easy to add and support more servers
  • Provides ease of use with front panel LED indicators
  • Compact design conserves valuable rack space
  • AMWorks advanced administration software included with the AMX5010 switch
  • Connectivity - End-to-end UTP cable, including CAT 5, CAT 5e, CAT 6
  • AMIQ Cable Interface - Assigns and stores unique server identification code for easier configuration and enhanced security
  • Keep Alive - Allows attached servers to continue operating in the event of power failure to the switch
  • Flash Upgrade - Simultaneous flash updates for all connected devices
  • AMWorks - Advanced Java-based system administration tool
  • Event Log - AMWorks tool used to maintain a record of user logins and switching activity

Avocent AMX5010 Specifications

Number of Computers
Number of Users
16 x Remote User
Video Signals
Graphics Resolution
1600 x 1200 at 75 Hz
User/Console Ports
16 x RJ-45 Female
Computer Ports
64 x RJ-45 Female Network
Form Factor
2U Rack-mountable
Power Consumption
150 W
Input Voltage
100 V AC to 240 V AC
Computers Supported
AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles
Monitor Supported
VGA, SVGA, XGA, SXGA, up to 1600 x 1200 at 75 Hz resolution
Peripherals Supported
AM5110 & AMX5120 User Stations: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6
Platform Supported
Network Connections
100Mbps and 1Gbps
Operating Temperature
32 Deg. to 122 Deg.F / (0 Deg. to 50 Deg.C)
Storage Temperature
-4 Deg. to 140 Deg.F / (-20 Deg. to 60 Deg.C)
UL, FCC, cUL, ICES-003, CE, VCCI,C-Tick
Dimensions (H x W x D)
3.5 in x 17.2 in x 11.1 in / 8.9 cm x 43.2 cmx 28.1 cm
16 lbs. (7.27 kg)
