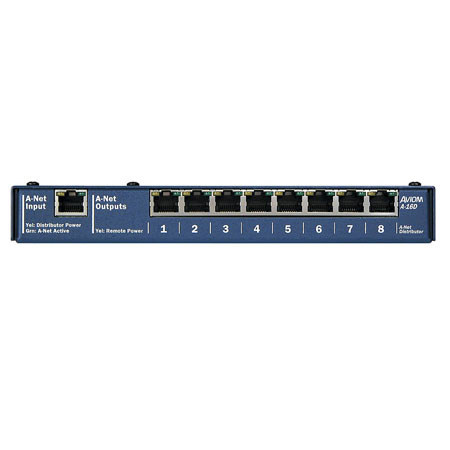

Aviom A16D 8-Port 1/2 Space Rackmount A-Net Distributor

SKU: AVIA16D MFR: A-16D
Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$499.00 List Price

Our Price

$399.00 $16 per week
Free Shipping
Qty:
Add to Wishlist

About the Aviom A16D

The Aviom A-16D is an 8-port audio and power distribution module, housed in a 1/2 space metal rack case and made for use with that company's personal monitoring and mixing system. The A-16D adheres to Aviom's proprietary A-Net protocol, an Ethernet-based technology that delivers high-speed transmission of uncompressed, very low latency audio over distances of up to 500 ft., using a standard Category-5 computer network cable with RJ45 connectors.

The ingenious power distribution of the A-16D is designed so that the power supplies of up to 8 remote A-series mixers and other components may be connected to a set of rear panel connectors, sending DC power along with the audio through the single Category-5 cable, simultaneously, in parallel fashion. This enables an easier, faster and cleaner remote setup, eliminating the need for extra power strips and concerns over remote AC access.

The A-16D and the entire A-Net series, represents a genuinely innovative development in wired personal monitoring technology, for the benefit of live music performance and studio recording, commercial and institutional installations, theater installations and houses of worship, at a breakthrough price point.

Aviom A16D Includes

  • Aviom A16D 8-Port 1/2 Space Rackmount A-Net Distributor
  • External DC Power Supply
  • Owner's Manual
  • Aviom 1 Year Limited Warranty

Aviom A16D Features

  • 1/2 rack space, 8-output A-Net power and audio distributor with Cat-5 connectors
  • 8 separate rear panel DC power inputs for remote power supplies, no power supply necessary at remote location
  • Uses same power supply as other A-Net system components
  • 8 ports simultaneously output 16 channels of audio and DC power to remote A-Net personal mixers and devices over single Cat-5 Ethernet cable
  • Parallel connection to remotes for cleaner, simpler system setup
  • Dedicated front panel DC Power Active LED indicators for each output channel
  • Front panel Power and A-Net Active LED's
  • Unlimited number of units may be used for larger system distribution needs
  • Power supply supports multiple voltages for international use

Aviom A16D Specifications

A-Net Input One EtherCon RJ45 connector
A-Net Thru One EtherCon RJ45 connector, unpowered
A-Net Outputs 8 EtherCon RJ45 connectors, powered (DC)
LEDs Power On; A-Net Active
Pro16 A-Net 16 channels of digital audio over Cat-5e cable
Uses unshielded Cat-5e UTP (or better) cable
Power Supply Internal, universal switching type
Cooling One ultra-quiet fan
Input Voltage 100-240VAC, 50-60Hz, 60W
Output Voltage for Personal Mixers 18-24 VDC, 0.5 amp
Transmitted over the Cat-5e cable
Dimensions 19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U,
3.5" (88.9 mm) high
Weight 12.0 lbs (5.44 kg)
