About Aviom AV-M8

The Aviom AV-M8 Mic Input Module provides eight mic-level inputs to a Pro16 system. Two channels also include a 20dB switchable pad, supporting line-level inputs. Eight channels of digital audio may also be input via ADAT, from a second AV-M8 module. The unit may be mounted in a rack or to a table or podium, using the reversible mounting flanges or optional rack ears.

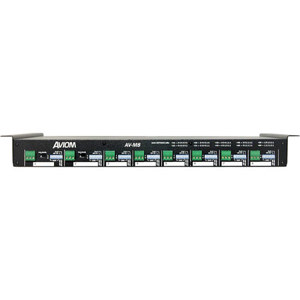

Analog audio is input via eight latching 5.0 mm Euroblock connectors. Each analog input channel features configuration DIP switches for individually selectable gain settings, +48V phantom power and low cut filter.

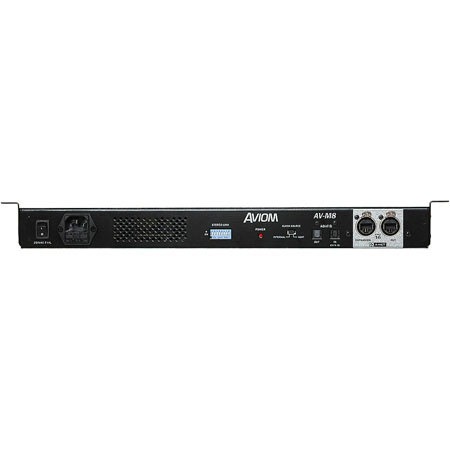

Analog input channels are routed to Channels 1-8 in the A-Net stream, while channels input via ADAT become A-Net Channels 9-16. Stereo linking for all eight A-Net channel pairs is supported through an eight-position rear-panel DIP switch.

A-Net connections include A-Net Out and A-Net Expansion, using locking Neutrik EtherCon connectors. The A-Net Expansion jack allows up to 32 channels to be carried on a single Cat-5e cable, in either 32x0 or 16x16 configurations. Larger systems (up to 64 channels on a cable) can be built using Aviom's AN-16SBR rackmount System Bridges.

Pro16 A-Net supports Cat-5e cable runs up to 500ft/150m between devices. For installations requiring longer cable runs, single- or multi-mode fiber optics may be utilized, using certain standard third party media converters. The AV-M8 is compatible with all Pro16 series products.

Aviom AV-M8 Features

  • Eight analog inputs for a Pro16 system
  • Rack or podium mountable
  • All analog inputs use three-pin Euroblock connectors
  • Individual gain settings, phantom power and low-cut filters on each input
  • Two inputs are equipped with switchable 20dB pads to support line-level signals
  • ADAT lets you input eight channels of digital audio by daisy-chaining a second module
  • Stereo linking provided for all eight A-Net channel pairs
  • Locking Neutrik EtherCon connectors for A-Net Out and A-Net Expansion. The Expansion jack can carry up to 32 channels on a single Cat-5e cable

Aviom AV-M8 Specifications

Analog Audio Inputs
6 mic-level, 2 balanced line- or mic-level
8 female Euroblock connectors, 5.0mm, panel-mount
Screw terminals: Audio +; Audio -; Ground
8 male Euroblock connectors supplied in box
A/D Conversion
48kHz, 24-bit
Gain Settings
+16dB to +64dB (10 settings)
6-position DIP switch, per channel
Max. Input Level
Mic: -2dBu; Line: +18dBu
Stereo Operation
Stereo Link, per channel pair;
Two-position switch (Normal, Link)
ADAT
1 ADAT In, 48kHz, 8 channels routed to A- Net Out, Channels 9-16
1 ADAT Out, 48kHz, 8 channels routed from analog inputs
Input Impedance
Channels 1-2, without pad: 2.48k ohms
Channels 1-2, with pad: 5.63 ohms
Channels 3-8: 2.68k ohms
Frequency Response
4Hz-22kHz +0.2dB/- 3db
THD +N
< 0.003%
Crosstalk
-90dB
Signal to Noise (unweighted)
A/D: -105dB
Low Cut Filter
- 3dB @ 85Hz, -18dB per octave
Phantom Power
+48 volts, per channel
Pad
20dB, switchable, Channels 1 and 2 only
Mic Input
EIN (Equivalent Input Noise): -128dBu
(Rs = 150 ohms, 20kHz BW, Gain = +60dB)
CMRR (Common Mode Rejection Ratio): 80dB @ 120Hz (Gain = +60dB)
Bit Error Rate (BER)
10-12
Pro16 A-Net
Out: 1; Expansion: 1; EtherCon connectors
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable
Uses unshielded Cat-5e UTP (or better) cable
Latency
<0.880 msec (measured from analog input to analog output)
Power Supply
Internal, universal switching type; IEC jack
Voltage
100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL
Dimensions (W x D x H)
19 in. (482.6 mm) x 9.25 in. (243.9 mm); 1U
Weight
8 lbs (3.63 kg)
