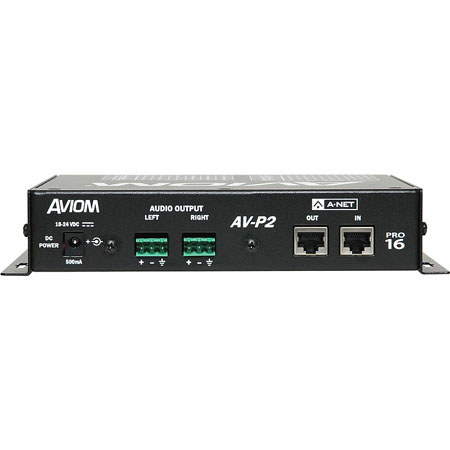

Aviom AV-P2 Two-Channel Output Module for Pro16 A-Net System
See all Aviom items

Aviom AV-P2 Two-Channel Output Module for Pro16 A-Net System

SKU: AVIAVP2
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Aviom AN-16/o V.4 16-Channel Analog Output Module
$1,899.00
$1,699.00
undefined undefined: Picture 1 regular
Aviom AN-16/i v.2 16-Channel Analog Input Module
$1,399.00
$1,289.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the AV-P2 Two-Channel Output Module be connected in both serial and parallel connections?

Yes, the AV-P2 modules can be connected in any combination of serial or parallel connections, using Pro16 A-Net Distributors.

What is the maximum cable run length supported by the AV-P2?

The AV-P2 supports long cable runs up to 500ft/150m using standard Cat-5e cables.

How can I adjust the analog output level for each channel in the AV-P2 module?

The analog output level for each channel can be easily adjusted using the front-panel DIP switches.

Can the AV-P2 module be powered over the Cat-5e cable?

Yes, power can be supplied to the AV-P2 with an external DC power supply or over the Cat-5e cable with an A-Net Distributor.

Is the AV-P2 module compatible with all Pro16 series products?

Yes, the AV-P2 is fully compatible with all Pro16 series products.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Aviom AV-P2 Specifications

  • Audio Outputs

    2, impedance balanced line-level
    5.0 mm Euroblock connectors, female, panel- mount
    2 male Euroblock connectors supplied in box
    Screw terminals: Audio +; Audio -; Ground

  • Channel Selection

    16-position rotary switch

  • D/A Conversion

    48kHz, 24-bit

  • Output Levels

    Maximum Output Level: +18dBu
    Output Level Trim from 0dB to -35.9dB in 1.5dB steps; 6-position DIP switch, per channel

  • Indicators

    LEDs; red: Power, green: A-Net Active, yellow: Stereo Pair

  • Output Impedance

    100 ohms

  • Signal to Noise (unweighted)

    93dB typical, A/D to D/A
    Measured from AN-16/i Input Module to AV-P2

  • Frequency Response

    4Hz-22kHz +0.2dB/-3dB

  • THD +N

    -93dB at -10dBFS

  • Crosstalk

    -85dB at 1kHz

  • Bit Error Rate (BER)

    10-12

  • Digital Connections

    A-Net In: 1; A-Net Out: 1; RJ45 connectors

  • Pro16 A-Net

    Uses unshielded Cat-5e UTP (or better) cable

  • Latency

    <0.880 msec (measured from analog input to analog output)

  • Power Supply

    External, DC, universal switching type

  • Input Voltage

    100-240 volts, 50/60Hz, 30VA

  • Output Voltage

    18-24 VDC, 0.5 amp

  • Plug Size

    2 mm, locking, center pin hot

  • Dimensions (W x D x H)

    7.45" (189.2 mm) x 7" (177.8 mm); 1U high

  • Weight

    3.4 lbs (1.54 kg)

0 Accessories for Aviom AV-P2 Two-Channel Output Module for Pro16 A-Net System

About Aviom AV-P2

Are you seeking a high-quality, durable, and efficient solution for your audio transmission needs The Aviom AV-P2 Two-Channel Output Module is the perfect fit for your Pro16 A-Net System. This user-friendly and reliable module is designed to convert and transmit up to two channels of analog audio signals into a Pro16 A-Net digital audio stream.

Each channel's analog output level can be easily adjusted using the front-panel DIP switches. The AV-P2 modules offer the flexibility of being connected in any combination of serial or parallel connections, utilizing Pro16 A-Net Distributors. The system allows for unlimited daisy-chaining of devices and parallel splits within a single system, making it highly adaptable to your specific needs.

The AV-P2 receives a 16-channel A-Net stream originating from a Pro16 input module, console interface card, or Pro64 audio network. This is made possible through the ASI A-Net Systems Interface module. A convenient front-panel rotary switch allows you to set the output to any one of the 16 channels.

In the case of a selected channel being part of a stereo pair, the left and right channels are automatically routed to the corresponding outputs on the AV-P2. If the selected channel is not part of a stereo pair, the audio is routed to both the left and right outputs, ensuring optimal audio distribution.

The AV-P2 uses Aviom's A-Net digital audio protocol to distribute audio over standard Cat-5e cables. This protocol supports plug-and-play installation, real-time distribution with sub-millisecond latency, and long cable runs up to 500ft/150m.

Powering the AV-P2 is a breeze, with options to use an external DC power supply or power over the Cat-5e cable using an A-Net Distributor. The AV-P2 also supports transmission of Pro16 A-Net audio streams over single- or multi-mode fiber optics with certain standard third-party media converters.

The AV-P2 comes with reversible mounting flanges, allowing two AV-P2 modules to be mounted side by side on a standard 1U rack tray. This module is fully compatible with all Pro16 series products, making it a versatile addition to your audio equipment.

Aviom AV-P2 Features

  • Compact half-rack size
  • Provides one or two-channel analog output from a Pro16 A-Net digital audio stream
  • Outputs are via three-pin Euroblock connectors
  • Audio is received via standard Cat-5e cables from a Pro16 input module, interface card, or audio network. Cat-5e cables can also supply power if used with an A-Net distributor
  • Levels for each output are set via front-panel DIP-switches
  • Multiple units can be daisy-chained with no limit to provide additional outputs
  • Rotary front-panel selector chooses which of the 16 A-Net channels will be sent to the outputs
  • Stereo channels are automatically divided to the left and right outputs, while mono channels are sent to both outputs equally

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Two-channel analog output module for Pro16 A-Net digital audio stream
  • Front-panel DIP switches for easy analog output level adjustments
  • Unlimited daisy-chaining and parallel splits for flexible system configurations
  • Selectable 16-channel A-Net stream with front-panel rotary switch
  • Sub-millisecond latency with long cable runs up to 500ft/150m via Cat-5e
  • Compatible with all Pro16 series products for seamless integration

What's in the box:

  • Aviom AV-P2 Two-Channel Output Module
  • DC Power Supply
  • Mounting Flanges
  • User Guide
  • Aviom 1 Year Limited Warranty
