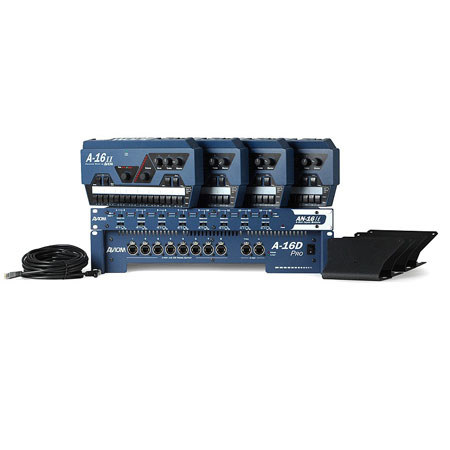

Aviom Four-Mix Personal Mixing System

SKU: AVIMIX4 MFR: MIX4
What's Included
What's Included With This Item:
  • Aviom AN-16/i Input Module
  • 4 x A-16II Personal Mixers
  • A-16D Pro A-Net Distributor
  • 4 x MT-1 Mic Stand Mounts
  • L-25 Cat-5e Cable
  • Aviom Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$4,995.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Aviom Mix4 is a complete monitor mixing solution for four performers. The system includes an AN-16/i line-level input module which accepts up to 16 line-level inputs. Audio is converted to digital and transmitted via A-Net, up to 500ft/150m over Cat-5e. A dedicated audio thru is available for each input channel, allowing the AN-16/i to be seamlessly inserted into an existing audio signal path.

The 16-channel A-16II Personal Mixer allows a performer to create and save up to 16 custom mixes and gives each performer control over channel volume, grouping, pan, stereo spread, along with master volume and tone. The system also includes an MT-1 for each Personal Mixer to allow the personal mixer to be mounted on any standard mic stand.

The A-16D Pro A-Net Distributor eliminates the need to daisy chain Personal Mixers and simplifies set-up by eliminating the need to connect a power supply to each mixer. The A-16D Pro accepts one Pro16 A- Net input signal and provides nine parallel outputs, using rugged EtherCon connectors and standard Cat-5e cables. The A-16D Pro provides isolated (floating ground) DC power through the eight A-Net Outs; the ninth output is an unpowered A-Net Thru connector, designed for distributing a copy of the A-Net signal to a second A-Net Distributor or remote location.

What's Included With This Item

  • Aviom AN-16/i Input Module
  • 4 x A-16II Personal Mixers
  • A-16D Pro A-Net Distributor
  • 4 x MT-1 Mic Stand Mounts
  • L-25 Cat-5e Cable
  • Aviom Warranty

Key Features

  • AN-16/i Input Module: Sixteen line level audio inputs
  • AN-16/i Input Module: High quality A-to-D conversion
  • AN-16/i Input Module: Adjustable input gain switches per channel pair
  • AN-16/i Input Module: Eight stereo channel link switches
  • AN-16/i Input Module: Signal and Peak LEDs on each channel
  • AN-16/i Input Module: A-Net Out and Expansion jacks
  • AN-16/i Input Module: 1U-high rack-mountable enclosure
  • AN-16/i Input Module: Sixteen balanced 1/4-inch TRS jacks for audio input connections
  • AN-16/i Input Module: Sixteen balanced 1/4-inch TRS jacks for audio thru connections
  • A-16II Personal Mixers: 16-channel stereo mixer
  • A-16II Personal Mixers: Fully adjustable pan per channel
  • A-16II Personal Mixers: Line/headphone audio output
  • A-16II Personal Mixers: Auto-detect mono/stereo circuitry
  • A-16II Personal Mixers: Simple set-up with Cat-5e cables
  • A-16II Personal Mixers: Sixteen Preset locations for storing custom mixes
  • A-16II Personal Mixers: Channel solo, mute and group functions
  • A-16II Personal Mixers: Global trim for reducing all channel volumes
  • A-16II Personal Mixers: Sixteen channel select buttons with dual LEDs
  • A-16II Personal Mixers: Pan/Spread control with LED readout
  • A-16II Personal Mixers: Channel volume control with LED level readout
  • A-16II Personal Mixers: Master Volume, Treble and Bass controls
  • A-16II Personal Mixers: Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount
  • A-16D Pro A-Net Distributor: Easily distribute A-Net from a central location or from other A-Net distributors
  • A-16D Pro A-Net Distributor: One A-Net input, eight A-Net outputs, one A-Net thru connection
  • A-16D Pro A-Net Distributor: Powers personal mixers via the Cat-5e cable

Technical Specs

AN-16/i: Audio Inputs 16, balanced line-level, 1/4-inch TRS connector
AN-16/i: Inputs Tip: Audio +; Ring: Audio -; Sleeve: Ground
AN-16/i: TRS Thru Impedance matched output
AN-16/i: Analog to Digital Conversion 48kHz sample rate, 24 bit
AN-16/i: Frequency Response 4Hz-22kHz
AN-16/i: A-Net Output One Category 5 (RJ45 connector)
AN-16/i: A-Net Expansion One Category 5 (RJ45 connector)
AN-16/i: Gain Settings Four-position switch, -10dBv, 0dBu, +4dBu and +22dBu
AN-16/i: Channel LED Indicators Signal Present and Clip, per channel
AN-16/i: Line Inputs Impedance: 48k ohms
AN-16/i: Metering LEDs; green: Signal Present, red: Clip; per channel
AN-16/i: Stereo Operation Stereo Link, per channel pair; Two-position switch (Normal, Link)
AN-16/i: Maximum Input Level +22dBu
AN-16/i: Input Impedance 17.8k ohm
AN-16/i: Freq. Response 4Hz-22kHz +0.2dB/-3dB
AN-16/i: THD +N < 0.003%
AN-16/i: Crosstalk -90dB
AN-16/i: Bit Error Rate (BER) 10(-12)
AN-16/i: Signal to Noise (unweighted) 90dB typical, A/D to D/A Measured from AN- 16/i to AN-16/o Output Module
AN-16/i: Digital Outputs A-Net: 1; A-Net Expansion: 1; RJ45 connector
AN-16/i: A-Net Pro16 A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; use unshielded Cat-5e UTP (or better) cable
AN-16/i: Latency <0.880 msec (measured from analog input to analog output)
AN-16/i: Power Supply External, DC, universal switching type
AN-16/i: Input Voltage 100-240 volts, 50/60Hz, 30VA
AN-16/i: Output Voltage 18-24 VDC, 0.5 amp
AN-16/i: Plug Size 2 mm
AN-16/i: Power 18-24 VDC, 500mA
A-16II: Audio Output 1/4-inch TRS stereo, headphone or line level
A-16II: Line/Headphone TRS Output Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
Auto-detects mono plugs
A-16II: A-Net Input/Output 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth 24 bit
A-16II: Signal to Noise Ratio (Referenced to 0dB) -103dB
A-16II: Latency <0.880 msec (measured from analog input to analog output)
A-16II: Pro16 A-Net Uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
A-16II: Tone Controls Treble +/-12dB at 9kHz shelving
Bass +/-12dB at 160Hz shelving
A-16II: Maximum Levels (RMS) Line/Headphone outs: 1.0 watt at 100 ohms
A-16II: Impedance Line/Headphone outs: 32 ohms
A-16II: Power Supply External, DC, universal switching type
A-16II: Input Voltage 100-240 volts, 50/60Hz, 30VA
A-16II: Output Voltage 18-24 VDC, 0.5 amp
A-16II: Plug Size 2 mm
A-16D Pro: A-Net Input One EtherCon RJ45 connector
A-16D Pro: A-Net Thru One EtherCon RJ45 connector, unpowered
A-16D Pro: A-Net Outputs 8 EtherCon RJ45 connectors, powered (DC)
A-16D Pro: LEDs Power On; A-Net Active
A-16D Pro: Pro16 A-Net 16 channels of digital audio over Cat-5e cable
uses unshielded Cat-5e UTP (or better) cable
A-16D Pro: Power Supply Internal, universal switching type
A-16D Pro: Cooling One ultra-quiet fan
A-16D Pro: Input Voltage 100-240VAC, 50-60Hz, 60W
Output Voltage for Personal Mixers 18-24 VDC, 0.5 amp
transmitted over the Cat-5e cable
MT-1 Mic: Connections Attaches with three screws to bottom of A-16II or A-16CS
MT-1 Mic: Connectors Size: 6-32, 1/4-inch long screws
Dimensions (W x D x H) AN-16/i: 19 x 5.75" (482.6 x 146 mm); 1U high
A-16II: 10.75 x 5.6 x 2.25" (273 x 142.2 x 57.15 mm)
A-16D Pro: 19 x 14.25 x 3.5" (482.6 x 362 x 88.9 mm); 2U high
MT-1 Mic: 6.25" (158.75 mm) wide at front x 4.5" (114.3 mm) wide at rear x 3" (76.2 mm)high
Weight AN-16/i: 6.8 lbs (3.08 kg)
A-16II: 3.4 lbs (1.54 kg)
A-16D Pro: 12lbs (5.44 kg)
