Avocent SwitchView SC680 NIAP EAL2+ 8 Port Desktop KVM Switch, 2560x1600 Video Resolution, 60 Hz V-Sync Rate

See all Avocent items
SKU: AVSC680001 MFR: SC680-001

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Avocent SC680

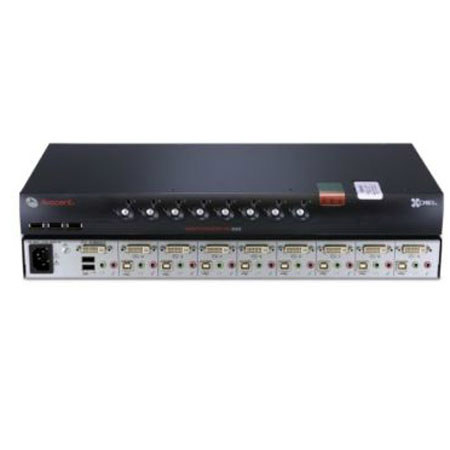

The Avocent SwitchView SC680 NIAP EAL2+ 8 Port Desktop KVM Switch offers proven, secure access for any desktop environment where security is mandatory. NIAP validated to EAL2+, the secure switch provides multiple levels of physical security and controlled USB connectivity. You can consolidate multiple workstations of varying security classification levels with one keyboard, monitor and mouse without compromising network security.

Both the SwitchView SC 680 switch includes multiple layers of security including tamper-proof hardware security at the desktop. In addition, the secure switch ensures that only keyboard and mouse function on target computers by constantly monitoring all devices attached to the console ports.

Avocent SC680 Specifications

Enclosure Type
8 x KVM port(s) + 8 x audio
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
Max Resolution
2560 x 1600 at 60 Hz
Display / video: 1 x DVI-Analog/Digital (dual link), 29 pin combined DVI, Keyboard: 1 x 4 pin USB Type A, Mouse: 1 x 4 pin USB Type A, Audio: 1 x input, mini-phone 3.5 mm, Audio: 1 x output
Power Device
Power supply, internal
Voltage Required
AC 120/230 V ( 50/60 Hz )
Power Consumption Operational
4.9 Watt
Compliant Standards
CE, C-Tick, VCCI Class B ITE, EN 60950, ICES-003, EN 61000-3-3, CISPR 22, FCC Part 15 B, UL 60950-1, CSA C22.2 No. 60950-1, EAL 2+
Operating Temperature
Storage Temperature
-4- 122 deg.F
Dimensions (DxHxW)
9.2x1.7x17" /23.36x4.31x43.18 cm
6 lbs / 2.72 kg
