AVtec AVtec LDV070A 7" Video Camera Monitor, 800x480 Resolution, 1080i/p Format, HDMI/AV/YUV

See all AVtec items
AVtec LDV070A: Picture 1 thumbnail AVtec LDV070A: Picture 2 thumbnail AVtec LDV070A: Picture 3 thumbnail AVtec LDV070A: Picture 4 thumbnail
Top Rated Gear

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About AVtec LDV070A

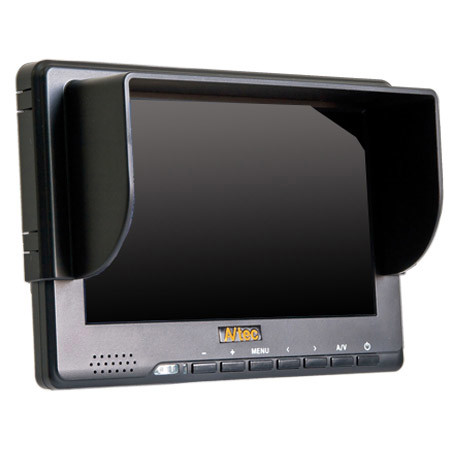

The AVtec LVD070A lcd 7" monitor is a new high quality viewfinder monitor specially designed for HDSLR and small HDV camcorder shooters. The 7-inch widescreen panel provides a 800x480 resolution and high contrast pictures, due to its LED backlight. The viewing angle of 140 degrees and the excellent brightness, makes the monitor suitable for indoor and outdoor shooting.

The monitor has a fashion-designed appearance with a rugged die cast case. It comes as standard with a sunshade, two battery brackets for Sony and Canon, a 12 volt power adapter, remote control and a ball head.

AVtec LDV070A Features

  • With YPbPr input, supports 1080i and 1080p
  • HDMI & YPbPr Input; LCD 16:9 Aspect Ratio
  • Input Signal: HDMI,YPbPr, Composite Video and Audio
  • PAL/NTSC color system
  • Automatic display adjustment
  • High-Brightness LED Backlight
  • On Screen Display menu control (Multi-language)
  • Full-function infrared remote control

AVtec LDV070A Specifications

Panel Size
7" (16:9)
800 x 480
450 cd / m3
Viewing Angle
120deg / 140deg (H/V)
Standby Current
= 50 mA
Power Consumption
= 8 W
Input Frequency
H/ 30-60 KHz, V/ 60-75 Hz
Audio Output
= 250 mW
x1 (front)
Dimensions (L x W x D)
without sunshade: 188 x 125 x 33 mm / 7.40 x 4.92 x 1.30 inch
with sunshade: 194.4 x 134.4 x 63.2 mm / 7.65 x 5.29 x 2.48 inch
Without sunshade: 542 g / 19.11 oz
with sunshade: 582 g / 20.53 oz

AVtec LDV070A Reviews

Reviewed by 1 customers


Great monitor!


from Atlanta, CA  -  Business Owner

I was shopping for a new monitor and was kind of stuck with what brand to go with. I looked at different expensive viewfinder monitors at about four stores. I wanted the monitor to have a HDMI input but didn't want to spend a fortune on it. So I went to Adorama. It was a better price then other monitors offering the same features. Overall this is a great monitor and the price is great. I'm very happy with my choice and I'll recommend to everyone.


Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Is this a great monitor? I need one for the Sony HVR-Z5U camera since I'm the shooter, reporter, producer all in one.
MICHAEL W  How well will this work with the Nikon D800? I don't see any reference (on any unit) to the Nikon "battery plate"
Andrew R  The manufacturer does not specify a particular camera make/model compatibility. The battery plates referenced are for powering this device using common Sony or Canon rechargeable battery packs not an indicator of camera compatibility.
David S  Does it have loop through? I see the monitor has component video in? Does it have component video out?
mike p  Odd, my monitor DOES have component loop-thru. I have not used this output but I did use the component input with my Sony Z1U and it worked great.
