Axxon 1 Port RS232 1 Megabaud PCI Controller Card

SKU: AXLF560KB MFR: LF560KB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$37.95
Qty:

Add to Wishlist

About this item

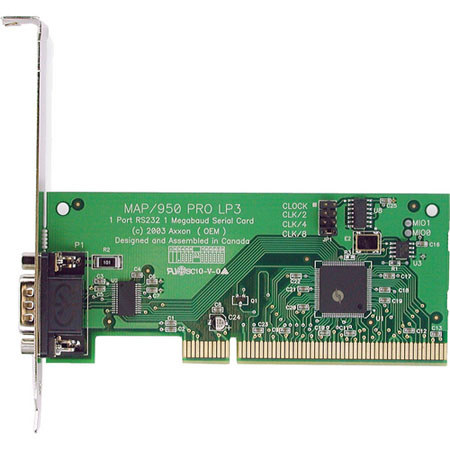

The 1-Port RS232 PCI Controller Card from Axxon connects to a 3.3V PCI or PCI-X slot and adds a RS232 port to your computer. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

Key Features

  • Compatible with 32-/64-bit 3.3V PCI/PCI-X expansion slots
  • Low and Standard Height Mounting brackets
  • 15kv ESD Static Protection
  • Multiple boards may be installed for additional serial ports
  • Hardware Auto-Flow Control
  • Plug & Play Compatible
  • Power Management 1.0 Compliant
  • Low Noise 4 Layer PCB
  • IRQ Sharing Capable (Both ports use single Interrupt)

Technical Specs

Ports 1x RS232 with 16C950 UART
Form Factor Low Profile MD1 Size (121.79mm)
System Requirements Available 32- or 64-bit 3V PCI/PCI-X Expansion Slot
Compatible with AMD Athlon/Pentium CPU Motherboards
Buffer 128B Transmit/Receive
Baud Rate (RS-232 Interface) 1 Megabaud Max.
Supported Operating Systems Windows 95, 98, ME, XP, NT, NT Server, 2000, 2000 Server, 2003 (32/64) Server; Linux (32- and 64-bit)
