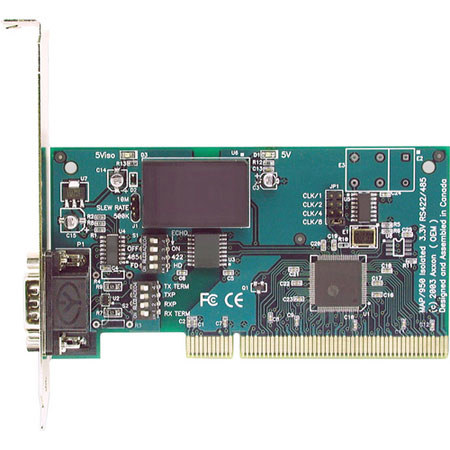

Axxon Single Isolated Port RS422/RS485 PCI Controller Card

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$142.45 $6 per week
Free Expedited Shipping
Add to Wishlist

About the Axxon RS422/RS485

The 1-Port Isolated RS422/RS485 PCI Controller Card from Axxon connects to a 3.3V PCI or PCI-X slot and adds a RS422/RS485 port to your computer. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

Axxon RS422/RS485 Includes

  • Axxon Single Port RS422/RS485 PCI Controller Card
  • Low and Standard Height Mounting Brackets
  • Axxon Warranty

Axxon RS422/RS485 Features

  • Compatible with 32-/64-bit 3.3V PCI/PCI-X expansion slots - Dell, Compaq, IBM, Intel chassis
  • Low and Standard Height Mounting brackets
  • State-of-the-art advanced design permits high baud rates with ESD protection and Isolation
  • 15kv ESD Static Protection (25kv optional)
  • Multiple boards may be installed for additional serial ports
  • Hardware Auto-Flow Control
  • Plug & Play Compatible
  • Power Management 1.0 Compliant
  • Low Noise 4 Layer PCB

Axxon RS422/RS485 Specifications

Ports 1x Isolated RS422/RS485 with 16C950 UART
Form Factor Low Profile MD1 Size (121.79mm)
System Requirements Available 32- or 64-bit 3V PCI/PCI-X Expansion Slot
Compatible with AMD Athlon/Pentium CPU Motherboards
Buffer 128B Transmit/Receive
Baud Rate 15 Megabaud Max. (Requires Clock Change)
Supported Operating Systems Windows 95, 98, ME, XP, NT, NT Server, 2000, 2000 Server; Linux
