Axxon

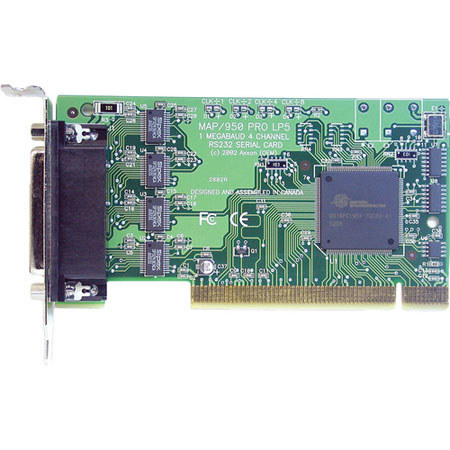

Axxon 4 Port RS232 PCI Controller Card

SKU: AXLF598KB MFR: LF598KB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$142.45
Free Shipping
Qty:

Add to Wishlist

About this item

The 4-Port RS232 PCI Controller Card from Axxon connects to a 5V PCI or PCI-X slot and, using the included Quadplex HD44M-to-4x DB9 cable adds four RS232 ports to your computer. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

What's Included With This Item

  • Axxon 4 Port RS232 PCI Controller Card
  • Low and Standard Height Mounting Brackets
  • 3' High Density 44 Male to 4x DB9 Male Cable
  • Axxon Warranty

Key Features

  • Low and Standard Height Mounting brackets
  • 15kv ESD Static Protection + 15kv HBM Surge Protection
  • Hardware Auto-Flow Control
  • Plug & Play Compatible
  • Power Management 1.0 Compliant
  • Low Noise 4 Layer PCB
  • IRQ Sharing Capable (Both ports use Single Interrupt)

Technical Specs

Ports 4x RS232 with 16C950 UART via Included Cable
Form Factor Low Profile MD1 Size (121.79mm)
System Requirements Available 5V PCI/PCI-X Expansion Slot
Compatible with AMD Athlon/Pentium CPU Motherboards
Buffer 128B Transmit/Receive
Baud Rate (RS-232 Interface) 1 Megabaud
Supported Operating Systems Windows 95, 98, ME, XP, NT, NT Server, 2000, 2000 Server, 2003 (32/64) Server; Plug and Play Linux 2.4+ kernels; QNX
