Axxon 1 Port RS422/RS485 Isolated PCI Controller Card

See all Axxon items

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • PCI Internal Interface
  • RS422 Expansion Ports
  • RS485 Expansion Ports
  • 1 Port

About Axxon

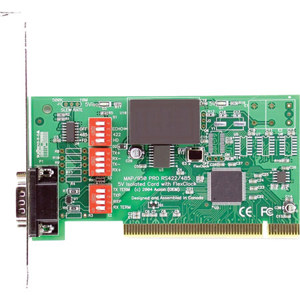

The 1-Port RS422/RS485 Isolated PCI Controller Card from Axxon connects to a 5V PCI slot and adds an isolated RS422/RS485 port to your computer. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

Axxon Features

  • Compatible with 5 volt PCI expansion slots
  • Low and Standard Height Mounting brackets
  • State-of-the-art advanced design permits high baud rates with ESD protection and Isolation
  • 25kv ESD Static Protection
  • Multiple boards may be installed for additional serial ports
  • Slew Rate controlled 10 Megabaud RS422/RS485 Transceiver
  • Plug & Play Compatible
  • Full / Half Duplex Support
  • Onboard Power status LED indicators
  • Thermal and Current protected transceivers
  • 2500 volt Isolation with onboard DC-DC isolated converter
  • PCI Bus 2.2 Compatible
  • Power Management 1.0 Compliant
  • Low Noise 4 Layer PCB
  • Lead-Free Design

Axxon Specifications

1x Isolated RS422/RS485 with 16C950 UART
Form Factor
Low Profile MD1 Size (121.79mm)
System Requirements
Available 5V PCI Slot
Compatible with AMD Athlon/Pentium CPU Motherboards
128B Transmit/Receive
Baud Rate
10 Megabaud Max. (Requires Clock Change)
Supported Operating Systems
Windows 95, 98, ME, XP, NT, NT Server, 2000, 2003 Server; Linux
Mfr #
