See all Axxon items

Axxon EPP/ECP Parallel Port + Dual RS232 Serial PCI Controller Card

SKU: AXLF631KB2S1 MFR: LF631KB-2S1P

Our Price

$142.45
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Special Order .

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • Use in 32 / 64 Bit PCI / PCI-X bus slots
  • Low and Standard Height Mounting brackets included
  • 30kv ESD Static Protection
  • Compatible with Rainbow Sentinel
  • Bus speed support of 33, 66, 100, 133Mhz at 32-/64-bit
  • Plug & Play Compatible
  • Advanced design does not slow down host bus speed
  • Hardware Auto-Flow Control

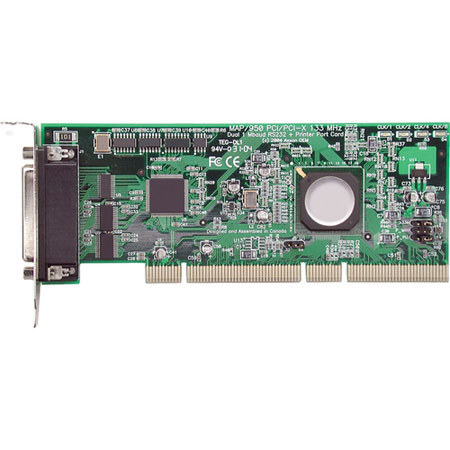

Axxon RS232: Picture 1 regular $142.45

About Axxon RS232

The EPP/ECP Parallel Port + Dual RS232 Serial PCI Controller Card from Axxon connects to a 3.3V PCI or PCI-X slot and, with the included complex cable, adds an EPP/ECP Parallel port and two RS232 ports to your computer. The advanced design prevents the common slowing issues involved in shared PCI-X busses. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

Axxon RS232 Features

  • Use in 32 / 64 Bit PCI / PCI-X bus slots
  • Low and Standard Height Mounting brackets included
  • Confirmed operation with printers, external parallel port devices and security dongles
  • 30kv ESD Static Protection
  • Compatible with Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP/Hardlock, DESKey, Dallas iButton, Wibu, Eutron, Globe dongles. Additional dongle support is under development
  • Bus speed support of 33, 66, 100, 133Mhz at 32-/64-bit
  • Plug & Play Compatible
  • Advanced design does not slow down host bus speed
  • Hardware Auto-Flow Control
  • 1 Megabaud RS232 Transceivers
  • Software Selectable Non-Volatile Clock Divisors
  • 15kv ESD Surge Serial Port Protection
  • 30kv ESD Parallel Port Protection
  • Short-Circuit/Thermal and current protected RS232 transceivers
  • Transceivers contain onboard charge pump
  • Compatible with AMD Athlon/Pentium CPU Motherboards
  • IRQ Sharing Capable (All ports use Single Interrupt)
  • Compatible with 32- and 64-bit 3.3V PCI/PCI-X expansion slots - Dell, Compaq, IBM, Intel chassis

Axxon RS232 Specifications

Ports
1x ECP/EPP Parallel Printer Port (from included Complex Cable)
2x High Speed 16C950 RS232 Serial Ports (from included Complex Cable)
System Requirements
Available 3.3V or 5V PCI/PCI-X Expansion Slot
Supported Operating Systems
DOS; Novell; Windows 95, 98, ME, XP, NT, NT Server, 2000, 2000 Server, 2003 Server; Plug and Play in Linux (Tested in RH 7.x, 8.x, 9.x and more)
Mfr #
LF631KB-2S1P
SKU
AXLF631KB2S1
