Axxon

Axxon 2 Port RS232 PCI Controller Card

SKU: AXLF658KB MFR: LF658KB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$94.95
Free Shipping
Qty:

Add to Wishlist

About this item

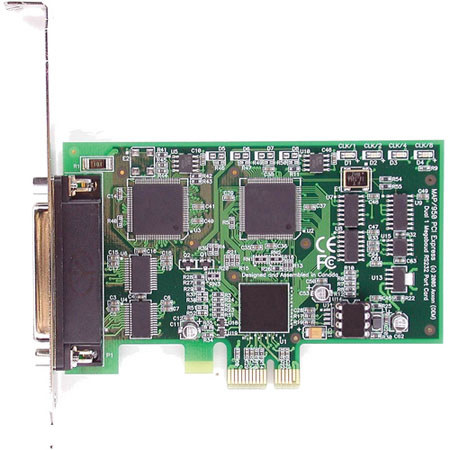

The Dual RS232 PCI Controller Card from Axxon connects to a PCI Express slot and, using the included DB25-to-2x DB9 cable, adds two RS232 ports to your computer. It's designed with a low-height mounting bracket and comes with an optional standard-height mounting bracket.

What's Included With This Item

  • Axxon Dual RS232 PCI Controller Card
  • Low and Standard Height Mounting Brackets
  • 3' DB25 Male to 2x DB9 Male Cable
  • Axxon Warranty

Key Features

  • Low and Standard Height Mounting brackets included
  • Complex Cable Included (DB25M to 2 of DB9M)
  • True 1 Megabaud RS232 Transceivers
  • Hardware Auto-Flow Control
  • Software Selectable Non-Volatile Clock Divisors
  • Plug & Play Compatible
  • 15kv ESD Surge Serial Port Protection
  • Short-Circuit/Thermal and current protected RS232 transceivers
  • Transceivers contain onboard charge pump
  • Compatible with all brands / models of computer systems with PCI Express (PCIe) expansion slots (use in 1x, 4x, 8x and 16x lane bus slots)

Technical Specs

Ports 2x RS232 with 16C950 UART via Included Cable
Form Factor Standard and Low Height mounting
System Requirements Available PCI Express Expansion Slot (Compatible with 1x, 4x, 8x, 16x lane PCI Express slots)
Buffer 128B Transmit/Receive
Baud Rate (RS-232 Interface) 1 Megabaud
Supported Operating Systems Windows 95, 98, ME, XP, NT, NT Server, 2000, 2000 Server, 2003 Server, Vista; Plug and Play Linux
