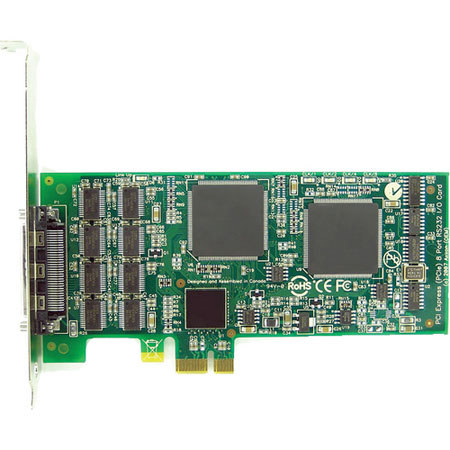

Axxon 8 Port RS232 PCI Express Card, Low/Standard
See all Axxon items

Axxon 8 Port RS232 PCI Express Controller Card, Low/Standard Height Mounting

SKU: AXLF734KB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Axxon 8 Port RS232 PCI Express Card, Low/Standard Specifications

  • Ports

    8x RS232 with 16C950 UART via Included Cable

  • Form Factor

    Low or Standard Height Mount Footprint Suitable

  • System Requirements

    Available PCI Express Expansion Slot (Compatible with 1x, 4x, 8x, 16x lane PCI Express slots)

  • Buffer

    128B Transmit/Receive

  • Baud Rate (RS-232 Interface)

    1 Megabaud

  • Supported Operating Systems

    Windows 10, 8.x, 7.0, 2000, 2000 Server, 2003 Server, XP32/XP64, NT4, NT Server, Windows Server 2012; Plug and Play in Linux

About Axxon 8 Port RS232 PCI Express Card, Low/Standard

The 8-Port RS232 PCI Express Controller Card from Axxon connects to a PCI Express slot and, using the included VHDCI68M-to-8x DB9 cable, adds eight RS232 ports to your computer. It's designed to be compatible with both low and standard-height mountings.

Axxon 8 Port RS232 PCI Express Card, Low/Standard Features

  • Low and Standard Height Mounting footprint compatible
  • Complex Cable Included (VHDCI68M-to-8x DB9)
  • 16C950 UART (8x buffer than 16550)
  • True 1 Megabaud RS232 Transceivers
  • Hardware Auto-Flow Control
  • Software Selectable Non-Volatile Clock Divisors
  • Plug & Play Compatible
  • 15kv ESD Surge Serial Port Protection
  • Short-Circuit/Thermal and current protected RS232 transceivers
  • Transceivers contain onboard charge pump
  • Lead Free Design
  • Compatible with all brands / models of computer systems with PCI Express (PCIe) expansion slots (use in 1x, 4x, 8x and 16x lane bus slots)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Low and Standard Height Mounting footprint compatible
  • Complex Cable Included (VHDCI68M-to-8x DB9)
  • 16C950 UART (8x buffer than 16550)
  • True 1 Megabaud RS232 Transceivers
  • Hardware Auto-Flow Control
  • Software Selectable Non-Volatile Clock Divisors

What's in the box:

  • Axxon 8-Port RS232 PCI Express Controller Card
  • VHDCI68 Male to 8x DB9 Male Cable
  • Axxon Warranty
