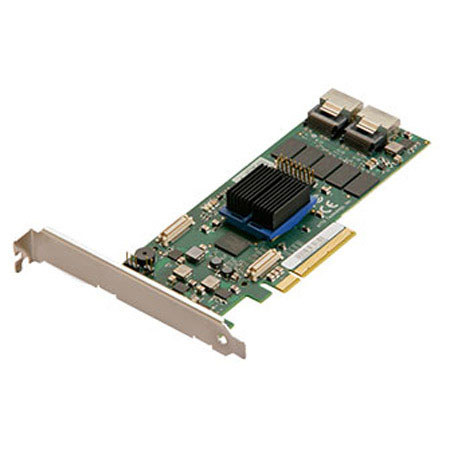

ATTO Technology ExpressSAS R608 8 Port Internal 6GB/s SAS/SATA RAID Adapter

SKU: AYESASR60800

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ATTO Technology ExpressSAS R608 Specifications

  • SAS/SATA Ports

    8

  • Port Config. (Ext/Int)

    0/8

  • Max. Data Rate

    6GB/s

  • Max. Transfer Rate

    4800MB/s

  • Bus Type

    PCIe 2.0 x8

  • Auto Negotiation

    SAS 2.0, SAS, SATA II, SATA

  • Connector Type

    (2) mini SAS (x4) SFF 8087 Internal

  • Max. Cable Length (SAS/SATA)

    32' (10m)/3.2' (1m)

  • Low-Profile Form Factor

    Yes

  • End Devices Supported

    256

  • Memory (ECC)

    512MB

About ATTO Technology ExpressSAS R608

The ATTO Technology ExpressSAS R608 RAID adapter provides the most flexible and robust 6GB/s SAS/SATA connectivity to Direct Attached Storage via 8 internal ports. With transfer rates of up to 1200MB/s per port, the R608 With Cache Assure Technology is well suited for high-bandwidth workflows, such as digital content creation, streaming video and audio, transactional databases and email and Web servers.

The R608 combines advanced engineering and innovative features to ensure smooth data transfers and consistent performance. Leveraging ATTO's market-tested RAID stack and exclusive latency management features, the R608 helps customers create, share and protect data and digital assets more effectively.

ATTO Technology ExpressSAS R608 Features

  • 8 Internal ports in a low-profile form factor
  • x8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments
  • RAID 40, 50, 60 require ATTO Express Power Center software
  • Advanced Data Streaming (ADS) Technology
  • Drive Assure Technology
  • Data Recovery Mode for additional data protection
  • Supports up to 256 end devices
  • Windows, Linux and Mac OS X driver support
  • 512MB memory
  • Easy-to-use GUI-based configuration utility
  • Thunderbolt-aware driver for Mac OS X 10.6.8 & above and Windows 7 & 8

Key Features

  • 8 Internal ports in a low-profile form factor
  • X8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 & DVRAID, an advanced RAID level for digital video environments
  • RAID 40, 50, 60 require ATTO Express Power Center software
