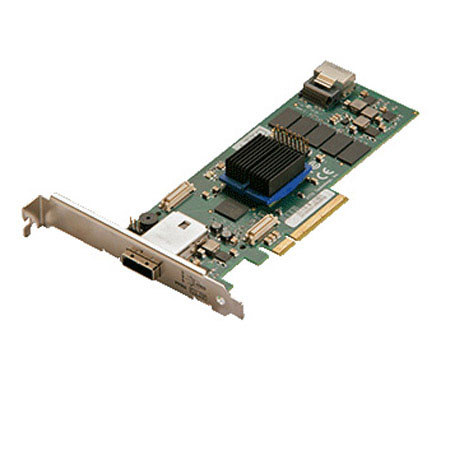

ATTO Technology ExpressSAS R644 4 Port External/4 Port Internal 6GB/s SAS/SATA RAID Adapter
SKU: AYESASR64400
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About ATTO Technology ExpressSAS R644
The ATTO Technology ExpressSAS R644 RAID adapter provides the most flexible and robust 6GB/s SAS/SATA connectivity to Direct Attached Storage via 8 internal ports. With transfer rates of up to 1200MB/s per port, the R644 With Cache Assure Technology is well suited for high-bandwidth workflows, such as digital content creation, streaming video and audio, transactional databases and email and Web servers.
The R644 combines advanced engineering and innovative features to ensure smooth data transfers and consistent performance. Leveraging ATTO's market-tested RAID stack and exclusive latency management features, the R644 helps customers create, share and protect data and digital assets more effectively.
ATTO Technology ExpressSAS R644 Features
- 4 external and 4 internal ports in a low-profile form factor
- x8 PCIe 2.0 host connection
- 9.6GB/s throughput in full-duplex mode
- SAS 2.0, SAS, SATA II, SATA connectivity
- Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments
- RAID 40, 50, 60 require ATTO Express Power Center software
- Advanced Data Streaming (ADS) Technology
- Drive Assure Technology
- Data Recovery Mode for additional data protection
- Supports up to 256 end devices
- Windows, Linux and Mac OS X driver support
- 512MB memory
- Easy-to-use GUI-based configuration utility
- Thunderbolt-aware driver for Mac OS X 10.6.8 & above and Windows 7 & 8
