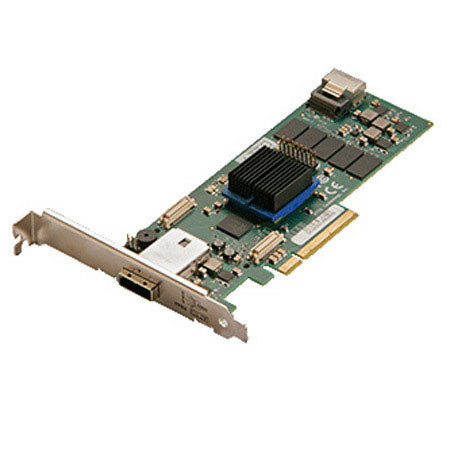

ATTO Technology ExpressSAS R644 with Cache Assure Technology RAID Adapter
See all ATTO Technology items

ATTO Technology ExpressSAS R644 with Cache Assure Technology 4 Port External/4 Port Internal 6GB/s SAS/SATA RAID Adapter

SKU: AYESASR644C0
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the data transfer rate of the ExpressSAS R644 RAID adapter?

The ExpressSAS R644 RAID adapter offers a high-speed data transfer rate of up to 1200MB/s per port.

What is the Cache Assure Technology in the ExpressSAS R644 RAID adapter?

The Cache Assure Technology in the ExpressSAS R644 RAID adapter is a feature that ensures data integrity by writing data simultaneously to the cache and the disk. This helps to reduce the risk of data loss and improve system performance.

What RAID levels does the ExpressSAS R644 RAID adapter support?

The ExpressSAS R644 RAID adapter supports RAID 0, 1, 5, 6, 10, and 50, offering a versatile range of storage solutions.

What applications is the ExpressSAS R644 RAID adapter suitable for?

The ExpressSAS R644 RAID adapter is ideal for a wide range of data-intensive applications, including digital content creation, streaming high-definition video and audio, managing transactional databases, and running email and web servers.

What is the purpose of ATTO's exclusive latency management in the ExpressSAS R644 RAID adapter?

ATTO's exclusive latency management feature in the ExpressSAS R644 RAID adapter is designed to optimize performance by ensuring consistent data transfer rates and minimizing downtime.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ATTO Technology ExpressSAS R644 Specifications

  • SAS/SATA Ports

    8

  • Port Config. (Ext/Int)

    4/4

  • Max. Data Rate

    6GB/s

  • Max. Transfer Rate

    4800MB/s

  • Bus Type

    PCIe 2.0 x8

  • Auto Negotiation

    SAS 2.0, SAS, SATA II, SATA

  • Connector Type

    (1) mini SAS (x4) SFF 8088 External(1) mini SAS (x4)SFF 8087 Internal

  • Max. Cable Length (SAS/SATA)

    32' (10m)/3.2' (1m)

  • Low-Profile Form Factor

    Yes

  • End Devices Supported

    256

  • Memory (ECC)

    512MB

About ATTO Technology ExpressSAS R644

The ATTO Technology ExpressSAS R644 With Cache Assure Technology RAID adapter provides the most flexible and robust 6GB/s SAS/SATA connectivity to Direct Attached Storage via 8 internal ports. With transfer rates of up to 1200MB/s per port, the R644 With Cache Assure Technology is well suited for high-bandwidth workflows, such as digital content creation, streaming video and audio, transactional databases and email and Web servers.

The R644 combines advanced engineering and innovative features to ensure smooth data transfers and consistent performance. Leveraging ATTO's market-tested RAID stack and exclusive latency management features, the R644 helps customers create, share and protect data and digital assets more effectively.

ATTO Technology ExpressSAS R644 Features

  • 4 external and 4 internal ports in a low-profile form factor
  • x8 PCIe 2.0 host connection
  • 9.6GB/s throughput in full-duplex mode
  • SAS 2.0, SAS, SATA II, SATA connectivity
  • Supports RAID Levels 0, 1, 4, 5, 6, 10, 40, 50, 60 and DVRAID, an advanced RAID level for digital video environments
  • RAID 40, 50, 60 require ATTO Express Power Center software
  • Advanced Data Streaming (ADS) Technology
  • Cache Assure Technology
  • Drive Assure Technology
  • Data Recovery Mode for additional data protection
  • Supports up to 256 end devices
  • Windows, Linux and Mac OS X driver support
  • 512MB memory
  • Easy-to-use GUI-based configuration utility
  • Thunderbolt-aware driver for Mac OS X 10.6.8 & above and Windows 7 & 8
