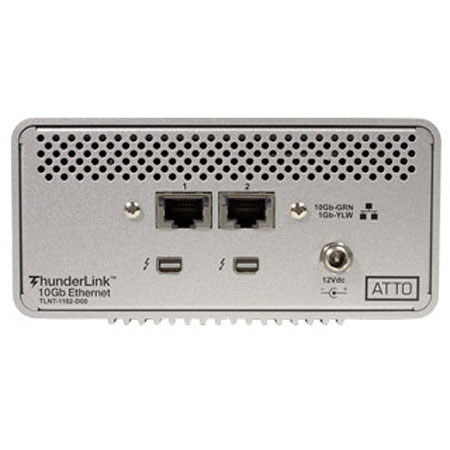

ATTO Technology NT 1102 10Gb/s Thunderbolt to 10Gb/s Ethernet Desklink
See all ATTO Technology items

ATTO Technology ThunderLink NT 1102 10Gb/s Thunderbolt (2-Port) to 10Gb/s Ethernet (2-Port) Desklink Device

SKU: AYTLNT1102D0
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

ATTO Technology NT 1102 10Gb/s Thunderbolt to 10Gb/s Ethernet Desklink Specifications

  • Configuration

    Dual port

  • Input Connectors

    2 x 10 Gbps Thunderbolt

  • Output Connectors

    2 x 10 GbE

  • Connector Type

    RJ45

  • Maximum Transfer Rate

    800 MBps

  • Advanced Software Features

    Adaptive load balancingIEEE 802.1Q VLANs

  • Form Factor

    Desktop

  • Management Tools

    Easy system monitoring with Simple Network Management Protocol (SNMP) and Remote
    Network Monitoring (RMON) statistic counters
    Watchdog timer for chip/driver status monitoring

  • External Connectivity

    Dual speed 10 Gbps, 1 Gbps, 100 Mbps two or one RJ-45 connectors2 LED indicators per port
    LED Indicators: LINK (solid), ACTIVITY (blinking), LINK SPEED (green = 10 Gb, yellow =1 Gb)

  • Operating System Support

    Mac OS X 10.6.8 or higher

  • Compliance

    FCC Part 15 Subpart B, EN55022/EN55024, Class BEN60950-1, EN60825-1, EN60825-2, EU RoHS (2002/95/EC)

  • Power Adapter

    100 to 240 V AC, 50 to 60 Hz, 0.8 A maximum12 V DC

  • Operating Temperature

    Temperature: 32 to 104deg.F (0 to 40deg.C)
    Humidity: 10 to 90% non-condensing

  • Storage Temperature

    Temperature: -40 to 158deg.F (-40 to 70deg.C)
    Humidity: 5 to 95% non-condensing

  • Dimension (D x W x H)

    9 x 5 x 2.5" / (22.9 x 12.7 x 6.35 cm)

About ATTO Technology NT 1102 10Gb/s Thunderbolt to 10Gb/s Ethernet Desklink

The ATTO Technology ThunderLink NT 1102 acts as an external Thunderbolt to 10GBASE-T adapter, connecting All-in-One systems and laptops to 10Gb/s Ethernet storage devices. ThunderLink 10GbE with support for link aggregation and failover, offer redundancy and high availability for critical network applications. With 10Gb/s data transfer rates and multiple offloads (TCP, IPv4, UDP), Ethernet Desklink devices are the premier connectivity choice for bandwidth-intensive applications such as data back-up and restoration, clustered computing, IP content delivery, medical imaging and video rendering. With multi-core processors driving the need for higher bandwidth, ThunderLink 10GbE delivers superior throughput to meet that need.

ATTO Technology NT 1102 10Gb/s Thunderbolt to 10Gb/s Ethernet Desklink Features

  • Dual port configuration
  • Up to 10Gb/s throughput
  • Dual 10Gb Thunderbolt with Display Port and device daisy-chain support
  • 10GBASE-T RJ-45
  • Supports Data Center Bridging and software iSCSI initiators
  • Driver support for Mac OS X 10.6.8 or higher operating systems (Windows and Linux when Thunderbolt becomes available)
  • Exclusive Advanced Data Streaming (ADS) Technology
  • TCP, UDP and IPv4 checksum offloading and Tx/TCP segmentation offloading
  • Minimized interrupts for low latency
  • Industry's lowest power consumption
  • RoHS Compliant
