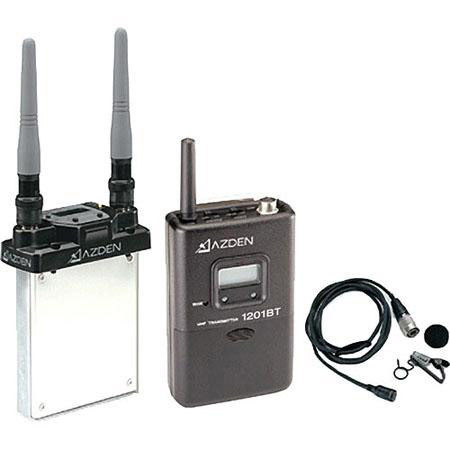

Azden 1201URX/SI-S On-Camera Receiver with True Diversity Reception for Slot-In Cameras

Azden
SKU: AZ1201USIS MFR: 1201URX/SI-S
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $79.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $222.95

Our Price

$1,299.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Azden

The Azden 1201URXSI Slot-In Portable Wireless Microphone Receiver is designed to mount Ikegami, Panasonic and other professional cameras with slot-in mounts. In addition to the receiver's slot-in design, the 1201-series also offers 188 user selectable, DTV compliant frequencies. True-diversity technology with two complete front-ends and high-gain antennas maximize reception and range while greatly reducing interference and drop-out. The transmitter features a multi-function digital display and rugged construction. 12VDC power is supplied from the camera.

Azden Features

  • Slot-in Receiver for Ikegami and Panasonic Cameras: The 1201URX/Si slot-in receiver for use with Ikegami, Panasonic and other professional cameras with slot-in mounts
  • 188 User Selectable Frequencies: In addition to the receiver's slot-in design, the 1201-series also offers 188 user selectable, DTV compliant frequencies
  • True Diversity Reception: True-diversity technology with two complete front-ends and high-gain antennas maximize reception and range while greatly reducing interference and drop-out

Azden Specifications

RF Carrier Frequency Range
188 steps; 638.125 - 661.875 MHz
Noise Reduction
Expander (THAT)
Effective Operating Range
200 - 300 ft; 60 - 100m
Frequency Response
50 - 15kHz (± 1.5dB)
RF Sensitivity
(12dB SINAD) 1.2µV
Adjacent Channel Selectivity
> 70dB (± 250kHz)
Image Rejection
> 93dB
IF Rejection
> 93dB
Audio THD
< 0.8%
Audio Output
40dBm ± 40kHz Deviation (-20dBm ± 40kHz Deviation for 1201URXSi)
Output Impedance
600ohms (300ohms for 1200URXSi)
Signal/Noise Ratio
> 62dB (± 5kHz Deviation) "A" Weighted
Power Requirements
11 - 15V DC @ 220mA (10 - 17V DC @ 200mA for 1201URXSi)
Operating Temperature Range
-50 to +122 F / -10 to +50 C
Dimensions (W x H x D)
Display: 3.15 x 0.87 x 1.38" (80 x 22 x 3mm)
Insertion: 2.68 x 3.3 x 0.7" (68 x 84 x 18mm)
Weight
1.85g (6.35 oz)
