Azden 330UPR Dual-Channel UHF Twin Body-pack Combo System with Two 35BT Body Transmitters and EX-503L Lavalier Mics

Azden

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95

Our Price

$761.12
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Azden 330UPR Lavalier

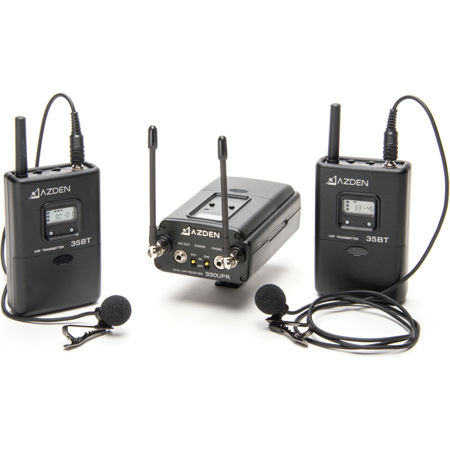

The Azden 330LT UHF On-Camera Dual Bodypack System is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of two Azden 35BT bodypack transmitters, EX-503 lavalier microphones, and 330UPR portable dual-channel diversity receiver. The inclusion of both bodypacks allow users to operate both microphones simultaneously.

With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LT is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).

Azden 330UPR Lavalier Features

  • Discrete 2-channel Camera-mount UHF Receiver
  • 188 Selectable UHF Freq. (566.125-589.875 MHz)
  • New, Pivoting High-Gain Antenna
  • Digital LCD Display w/Multifunction Readout
  • Mini-Jack Out w/Supplied 46" Mini and 24" XLR Cables
  • Headphone Output on Receiver
  • Attached/Removable Shoe-Mount
  • Powered by 2 "AA" Batteries

Azden 330UPR Lavalier Specifications

Receiver Frequency Range
UHF 188 Freq. (566.125-589.875MHz)
Receiver Type of Reception
FM
Receiver Oscillator
PLL Synthesized
Receiver RF Squelch Level
-95dBm
Receiver Frequency Response
50Hz - 15kHz
Receiver S/N Ratio
> 84dB (100% Deviation)
Receiver Audio Out
MIC Level - Balanced - 3.5mm Mini-Jack
-28 dBm (100% Deviation - Mic Level)
Receiver Batteries
2 "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
2 "AA" rechargeable Ni-MH (2 x 1.2V)
Transmitter Frequency Range
UHF 188 Freq. (566.125-589.875MHz)
Transmitter Oscillator
PLL Synthesized
Transmitter RF Power
25mW
Transmitter Frequency Response
50Hz - 15kHz
Transmitter Max. Deviation
±40kHz at 1kHz Modulation
MIC Input - 11dBm
Transmitter Batteries
2 "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
2 "AA" rechargeable Ni-MH(2 x 1.2V)
Dimensions (W x H x D)
Receiver: 2.87" x 4.45" x 1.59" (73 x 113 x 40.5 mm)
Transmitter: 2.52" x 3.93" x 1.16" (64 x 100 x 27 mm)
Weight
Receiver: Approx. 10.2 oz (290g) w/batteries
Transmitter: Approx. 6oz (170g) w/batteries

Azden 330UPR Lavalier Reviews

Reviewed by 2 customers


3.0

OK Mics

By

from St. Louis  -  Experienced

When they work, they are great mics but they will cut out on their own which can ruin your video.


4.0

Great For Prosumer Camcorder

By

from Katy, TX  -  Tech Savvy

I added this unit to my acquisition of a memory card based Prosumer HD camcorder. In my experience, doing videos of events in a medium to large sized meeting room where the speaker is some distance away from the camera requires a direct audio feed to the camera for best quality audio. For shorter distances, an external directional mic is sufficient. This unit will allow up to 2 people to be miked simultaneously with both feeding into the camera via stereo plug from the single 2-channel receiver. If you don't like lavaliers, and can't afford a Countryman, there are other third party mics like AV-Jefes AVL670P which are similar at least in form if not in quality at a more favorable price point that are compatible with these body pack transmitters. Good bang for the buck in my opinion.

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  what is transmitter power?
Andrew R  I'm not sure I understand your question. http://www.adorama.com/AZ330ULT.html#specs
Ashley M  How do you set it up using a Cannon XA10? We cannot get the external mics to work.
