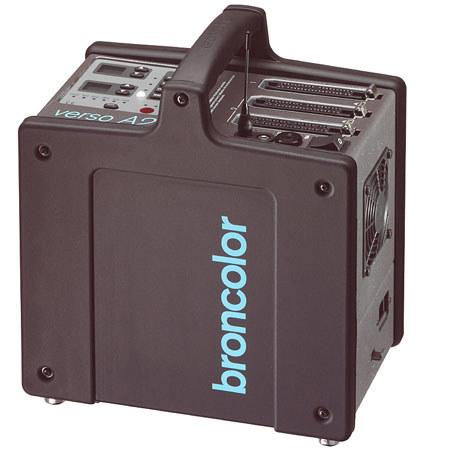

Broncolor Verso A2 RFS 100-240 V 1200 Ws Power Pack with 3 Head Outlets - Operates on AC Current or Battery

Broncolor
SKU: BCB3103100 MFR: B3103107
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

$7,677.15
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Broncolor A2

Microprocessor controlled power pack with 3 lamp base outlets, controlled over two channels (outlet I and outlet II / III). Flash energy 1200 J. Individual (asymmetrical) output distribution. Maximum control range: over 7 f-stops in 1/10 f-stop intervals. High repetitive precision. Automatic stabilization of the color temperature over 4 f-stops within +/- 100 K. Internal discharge when the power is reduced. Photocell (can be switched off) and infrared receiver (can be switched off) for flash triggering.

Front panel with illuminated silicone keyboard resistant to dust and scratches, LED as well as two LCD-displays. Modelling light with 6 different proportionality levels, adjustable to all Broncolor power packs and monolights. Visual and audible flash monitoring by dim function of the modelling light during charging as well as buzzer. Bright ready display visual and audible (buzzer can be switched off). Can be switched to fast charging mode. Fan cooling for long flash sequences and thermal protection.

Memory function (the entered data are retained should the unit be switched off or in case of a power cut). Robust aluminum housing, side walls are equipped with hard rubber components. Automatic adaptation to the respective mains voltage. Mains (AC-line) independent when using in combination with the available Power Dock (charging unit integrated) as accessory. Integrated RFS-Interface (Radio Frequency System) for flash release by radio via transmitter RFS as well as by means of a transceiver RFS via PC or Macintosh computer.

Verso A2 RFS can be operated as a mains (AC-line) independent unit. The accessory equipment Power Dock comprises a high-performance battery package with integrated charging unit as well as an independent processor for battery management and monitoring of the modelling light. The unit can be attached to the bottom of the power pack.

Broncolor A2 Specifications

Flash energy
Mains/Battery operation: 1200 J
F-stop at 2 m (6.6 ft) distance
Mains/Battery operation: 45 7/10 (100 ISO, reflector P70)
Flash duration t 0.1 (t 0.5) with 230 V
Mains/Battery operation: 1200 J: 1/500 s (1/1500 s)
600 J: 1/900 s (1/2500 s)
300 J: 1/1200 s (1/3500 s)
Charging time at fast charge
Mains operation: 0.2 - 0.8 s (200-240 V)
0.2 - 0.9 s (110-120 V)
0.3 - 1.0 s (100 V)
Battery operation: 0.3 - 1.5 s (fully charged battery)
Ready display
Visual and audible (can be switched off), signals when 100 % of selected energy is reached.
Lamp base outlets
3
Power output distribution
Individual (asymmetrical)
Controls
Illuminated silicone keyboard resistant to dust and scratches, LED as well as two LCD-displays.
Control range of flash energy
Channel 1 (without using channel 2): over 7 f-stops in 1/10 f-stop intervals (1:128)
Channel 1 and 2 or channel 2: over 6 f-stops in 1/10 f-stop intervals (1:64)
Maximum asymmetry
6 f-stop increments channel 1: level 9 / channel 2 (1 lamp base): level 3 respectively
7 f-stop increments channel 1: level 9 / channel 2 (2 lamp bases): level 3
Modelling light: Mains operation
For 200 - 240 V: Halogen max. 3 x 650 W
For 100 - 120 V: Halogen max. 3 x 300 W
Modelling light: Battery operation
For 200 - 240 V: Halogen max. 1 x 650 W
2 x 300 W
3 x 150 W
For 100 - 120 V: Halogen max. 2 x 300 W
3 x 150 W
Additional functions
Sequences (flash series) up to 50 flash releases
Sensitivity of the photocell can be reduced.
Visual ready display can be dimmed.
Simplified programming of the studio and unit address
Option automatic switch-off of the power pack in battery operation (settings from 10 min to 99 min)
Flash releases
Manual release button, photocell (can be switched off), infrared receiver (can be switched off), sync cable, FCM 2, IRX2, Transmitter RFS, Transceiver RFS (10 channels)
Radio (RFS)
Operational distance outdoors up to 50 m (164 ft)
Operational distance in closed rooms up to 30 m (98 ft)
Range up to 300 m (984 ft)
No. of sync sockets
1
Stabilized flash voltage
+/- 0.5 %
Power requirements: Mains operation
200-240 V / 50 Hz: 10 A
110-120 V / 50-60 Hz: 16 A
100 V / 50 Hz: 16 A
No. of flashes per fully charged battery
Fast charge: approx. 350 at full output
Normal charge: approx. 450 at full output
Dimensions (L x W x H)
290 x 185 x 315 mm / 11.4" x 7.3" x 12.4"
Weight power pack
7.5 kg / 16.5 lb
Weight Power Dock
12.3 kg / 27.1 lb
