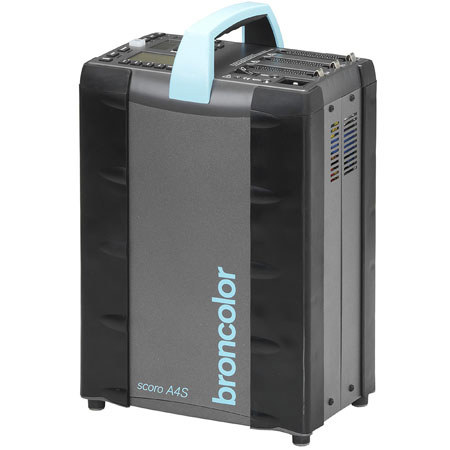

Broncolor Scoro A4s 100-240 V 3200 Ws Power Pack with 3 Head Outlets, Speed Mode & Color Control (ECTC), Worldwide Version
What's Included With This Item:
- Broncolor Power Pack
- Mains Cable
- Operating Instructions
- Dust Cover
- Broncolor Warranty
Power pack with 3 lamp outlets, controlled over 3 individual channels (like 3 power packs in one). 3200 J flash energy. Individual (asymmetrical) output distribution. Maximum control range: over 10 f-stop intervals or over full 11 f-stop levels in whole or 1/10 f-stop intervals. Very high repetitive precision. Automatic stabilization of the color temperature ECTC (Enhanced Color Temperature Control) over the whole control range and up to 6 f-stops in asymmetrical mode.
Internal discharge when the power is reduced. Photocell, infrared and RFS receiver for flash triggering (all can be switched off separately). Front panel with modern, dimmable, LCD menu system, with illuminated silicone keyboard resistant to scratches and LED displays. Selectable flash duration. Modelling light with 8 different proportionality levels, adjustable to all Broncolor power packs and monolights.
By default, integrated radio receiver. Visual and audible flash monitoring by dim function of the modelling light during charging as well as different buzzers. Bright large ready display and buzzer (can be switched off). Can be switched to fast charging mode. Fan cooling for long flash sequences and thermal protection. 8 memory functions (the entered data are retained should the unit be switched off or in case of a power cut). Robust aluminum housing, side walls with hard rubber components. Automatic adaptation to the respective mains voltage.
|F-stop at distance of 2 m (6-1/2 ft.)||3200 J: 90 2/10 (100 ISO, reflector P70)|
|Flash duration t 0.1 on max. energy||3200 J: 1/132 s|
|Variation range of flash duration t 0.1||3200 J: 1/85 - 1/8000 s|
|Variation range of flash duration t 0.5||3200 J: 1/240 - 1/12000 s|
|Charging time (min.-max. energy)||3200 J:
230 V: 0.02 - 1.3 s
120 V: 0.02 - 2.0 s
100 V 0.02 - 2.2 s
|F-stop at distance of 2 m (6-1/2 ft.)||2400 J: 64 9/10 (100 ISO, reflector P70 speed mode)|
|Flash duration t 0.1 on max. energy||2400 J: 1/285 s|
|Variation range of flash duration t 0.1||2400 J: 1/85 - 1/8000 s|
|Charging time (min.-max. energy)||2400 J:
230 V: 0.02 - 0.8 s
120 V: 0.02 - 1.2 s
100 V: 0.02 - 1.4 s
|Ready display||Visual and audible(can be switched off), signals when 100 % of selected energy is reached.|
|Lamp outlets||3 main connectors with flash cut-off and ECTC.|
|Power output distribution||Symmetrical and individually asymmetrical.|
|Controls||Illuminated silicone keyboard, resistant to dust and scratches.
Wireless remote control of all functions with RFS.
|Control range||Over 10 f-stops in 1/10 or whole f-stop intervals. Displayed simultaneously in f-stops and joules, joules switchable to percentage.|
|Color temperature||ECTC technology (Enhanced Color Temperature Control) for consistent but also deliberately modified color temperature.|
|Modelling light||Halogen max. 3 x 650 W at 200 - 240 V
Halogen max. 3 x 300 W at 100 - 120 V
Proportional to flash energy and "full" and "low" settings.
Proportionality adjustable to other Broncolor power packs and monolights.
|Additional functions||Sequence, delay, interval, t 0.1, color temperature, alternation, stroboscopic, memory, etc.|
|Flash release||Manual release button, photocell (can be switched off), infrared and RFS receiver (can be switched off), sync cable, IRX2.|
|No. of sync sockets||1|
|Computer connection for remote control||1|
|Stabilized flash voltage||+/- 0.3 %|
|Power requirements||230 V: 16.0 A
120 V: 15.0 A
100 V: 15.0 A
|Standards||EN 60065/A1, EN 55014, EN 300 220-1/-3, EN 50371, EN 60950, EN 301 489-1/-3, EEC-standards: 2006/95, 2004/108, 99/5, 96, 95|
|Dimensions without handle||288 x 190 x 400 mm / 11.3 x 7.5 x 15.7 inch|
|Dimensions incl. handle||288 x 190 x 453 mm / 11.3 x 7.5 x 17.8 inch.|
|Weight||12.5 kg / 27.5 lbs|
