Broncolor

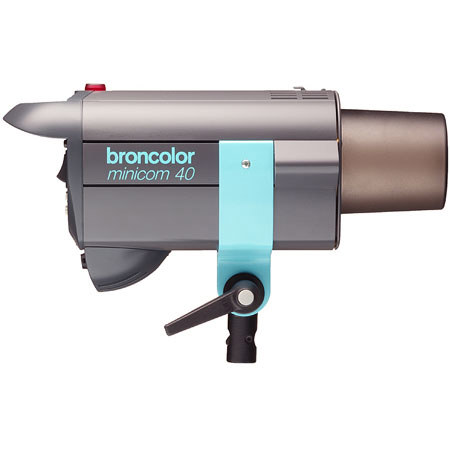

Broncolor Minicom 40 RFS, Multi-Voltage 300 watt second Fan Cooled Monolight, for 230V or 120V, with Flash Tube & Protective Cap

SKU: BCB3140600 MFR: B3140607
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,567.05
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About this item

Monolight controlled by microprocessor with interlocking Pulso bajonet, which permits a 360° rotation of the mounted light shapers. 300 J flash energy (100 V version: 250 J), control range over 5 f-stops in 1/1 or 1/10 f-stop increments, high repetitive accuracy for digital imaging, internal discharge in case of a reduction of power. Infrared receiver and photocell (can be switched off separately).

Modelling light with 6 different proportionality levels compatible with all Broncolor flash systems and the various power levels. Monitoring of the modeling light. Front panel with illuminated digital display, LED display as well as a dust and scratch-proof illuminated silicone keyboard. Flash monitoring either by dim or boost function of the modeling light during charging, as well as buzzer. Visual and audible ready display (buzzer can be switched off).

Can be switched to slow charging mode. Fan cooling for long flash sequences, robust metal housing with integrated umbrella holder, big handle, thermal protection and overload circuit breaker. Integrated tilt head with locking lever. Stand adapter for 12 mm / 0.4 inch and 16 mm / 0.6 inch bolts. The bracket of the monolight with the stand adapter can be installed upwards for suspended mounting.

Integrated RFS Interface (Radio Frequency System) for remote control respectively flash release of the unit by radio by means of transmitter RFS as well as transceiver RFS from a PC or Macintosh computer. Built-in memory function to store 4 lighting situations while working via screen.

What's Included With This Item

  • Broncolor Minicom 40 RFS Multi-Voltage Monolight
  • Integrated RFS-Interface as well as Protection Cap for Transport
  • Mains Cable
  • Operating Instructions
  • Flash Tube
  • Modelling Lamp
  • Protecting Glass
  • Transmitter RFS
  • Transceiver RFS
  • Broncolor Warranty

Key Features

  • Sequences (serial flashes)
  • Sensibility of the photocell can be reduced
  • Minicom 40 RFS can be operated, with certain restrictions, on all mains voltages
  • Monitoring of the modelling light (audible signal when operating mode is changed from 110-120 V to 200-240 V)
  • Option for releasing sequences (serial flashes)
  • Integrated RFS Interface (Radio Frequency System)

Technical Specs

Flash energy 300 J (100 V: 250 J)
F-stop at a distance of 2 m / 6.6 feet 100 ISO, reflector P50 // P70: 32 5/10 // 22 5/10 (100 V: 32 2/10 // 22 2/10)
Flash duration t 0.1 (t 0.5) 1/900 s (1/2500 s) with mains voltage 110 - 240 V
with mains voltage 100 V: about 20 % longer
Charging time (For 100 % of selected energy): 230 V / 50 Hz: 0.3 - 0.9 s
120 V / 60 Hz: 0.3 - 1.2 s
100 V / 50 Hz: 0.3 - 1.5 s
Can be switched to slow charge mode
Controls Illuminated digital display, LED display as well as dust and scratch-proof, illuminated silicone keyboard
Control range of flash energy (100 V: 1/3 f-stop less) over 4 f-stops in 1/10 increments (1:16);
can be switched to 5 f-stops (1:32)
Modelling light Halogen max. 300 W
Proportional to flash energy as well as "full"and "low" settings. Proportionality adjustable to all broncolor flashsystems and the various output levels.
Flash release Manual release button, photocell and infrared receiver (can be switched off), sync cable, FCM 2, FCC, IRX2, transmitter RFS, transceiver RFS
Ready display Visual and audible (can be switched off), signals when 100% of selected energy is reached
Flash monitoring Visual: Dim or boost function of the modelling light during charging
Audible: buzzer
Number of sync sockets 2
Stabilized flash voltage +/- 1,5 %
Cooling Fan
Compatibility Light shaper: all broncolor light shapers
Remote release: RFS transmitter, IRX2, FCM2, FCC
Remote control: Transeiver RFS
Remote control By means of the 8 channel RFS Interface (Radio Frequency System) for remote control of the unit by radio from servor RFS as well as transceiver RFS from PC or Macintosh computer. Up to 8 units can be controlled per channel (studio).
Operational distance outdoors Up to 30 m / 98.4 feet
Operational distance in closed rooms Up to 20 m / 65.6 feet
Range Up to 300 m / 984.2 feet
Standards EC standard 73/23, UL 122
ERM EN 300 220-1,-3
EMC EN 301 489-1,-3
EN 60950
EN 50371
FCC Part 15
Power requirements 200-240 V / 50-60 Hz: 6 A
100-120 V / 50-60 Hz: 10 A
Dimensions (L x W X H) 286 x 154 x 194 mm / 11.2 x 6 x 7.6 inch
Weight 3kg / 6.6 lb
