Broncolor

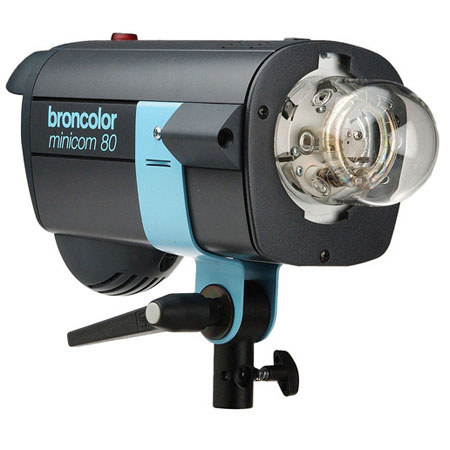

Broncolor Minicom Classic Monolight Kit, with Two 300 Ws Minicom 40 & One 600 Ws Minicom 80 Monolights Optimized for 230V or 120V, Light Stands & Travel Bag.

SKU: BCB3149200 MFR: B3149207
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,561.40
Free Expedited Shipping
Free Shipping
Qty:
Add to Wishlist

About this item

The Broncolor Minicom 80/40 Monoligts are controlled by microprocessor with interlocking Pulso bajonet, which permits a 360° rotation of the mounted light shapers. They provide 600 J/300 J (100V version: 500 J/250) (Minicom 80/40) flash energy. They also feature control range over 5 f-stops in 1/1 or 1/10 f-stop increments, high repetitive accuracy for digital imaging, internal discharge in case of a reduction of power.

The Infrared receiver and photocell (can be switched off separately). Modelling light with 6 different proportionality levels is compatible with all Broncolor flash systems and the various power levels. The Front panel comes with illuminated digital display, LED display as well as a dust and scratch-proof illuminated silicone keyboard.

What's Included With This Item

  • Broncolor Minicom 80 with (Flash Tube
  • Modelling Lamp
  • Protecting Glass
  • Transparent Transport Protection Cap
  • Mains Cable)
  • 2 x Minicom 40 with (Flash Tubes
  • Modelling Lamps
  • Protecting Glasses
  • Transparent Transport Protection Caps
  • Mains Cables)
  • 2 x P-Travel Reflectors
  • Barn Door for P-Travel
  • Pulsoflex C 60 x 100
  • Synchronous Cable, 5 m
  • Travel Bag
  • Stand Bag
  • 3 x Stands
  • Broncolor 2 Years Warranty

Key Features

  • High repetitive precision for digital imaging
  • Large control range of the flash energy
  • Flash release also possible via radio (optional) and infrared
  • Automatic flash release control
  • Illuminated silicone keyboard and LED-display, resistant to dust and scratches
  • Additional flash sequences (flash series)
  • Sensitivity of the photocell can be reduced
  • Automatic adaptation to the respective mains power
  • Modification to RFS version possible

Technical Specs

Flash energy Minicom 80: 600 J (100 V: 500 J)
Minicom 40: 300 J (100 V: 250 J)
F-stop At a distance of 2 m / 6.6 feet 100 ISO, reflector P50 // P70:
Minicom 80: 45 5/10 // 32 5/10 (100 V: 45 2/10 // 32 2/10)
Minicom 40: 32 5/10 // 22 5/10 (100 V: 32 2/10 // 22 2/10)
Flash duration t 0.1 (t 0.5) Minicom 80: 1/420 s (1/1500 s) with mains voltage 110 - 240 V
Minicom 40: 1/900 s (1/2500 s) with mains voltage 110 - 240 V
=> with mains voltage 100 V: about 20 % longer
Charging time For 100 % of selected energy:
Minicom 80:
230 V / 50 Hz: 0.4 - 1.4 s
120 V / 60 Hz: 0.4 - 1.9 s
100 V / 50 Hz: 0.4 - 3.0 s
Can be switched to slow charge mode
Minicom 40:
230 V / 50 Hz: 0.3 - 0.9 s
120 V / 60 Hz: 0.3 - 1.2 s
100 V / 50 Hz: 0.3 - 1.5 s
Can be switched to slow charge mode
Ready display: Minicom 80 Visual and audible (can be switched off), signals when 100% of selected energy is reached
Controls Illuminated digital display, LED display as well as dust and scratch-proof, illuminated silicone keyboard
Control range of flash energy 100 V: 1/3 f-stop less
Over 4 f-stops in 1/10 increments (1:16)
Can be switched to 5 f-stops (1:32)
Modelling light Halogen max. 300 W
Additional functions Sequences (serial flashes) up to 50 flashes
Sensibility of the photocell can be reduced
Number of sync sockets 2
Stabilized flash voltage +/- 1,5 %
Cooling Fan
Power requirements 200-240 V / 50-60 Hz: 6 A
100-120 V / 50-60 Hz: 10 A
Standards EC standard 73/23, UL 122
Dimensions (L x W X H) Minicom 80: 286 x 154 x 194 mm / 11.2 x 6 x 7.6 inch
Minicom 40: 286 x 154 x 194 mm / 11.2 x 6 x 7.6 inch
Weight Minicom 80: 3.3 kg / 7.3 kg
Minicom 40: 3 kg / 6.6 lb
