Broncolor

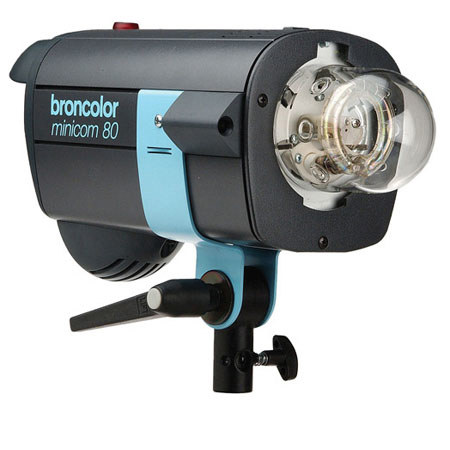

Broncolor Minicom Classic Monolight Kit, with Two 300 Ws Minicom 40 RFS & One 600 Ws Minicom 80 RFS Monolights Optimized for 230V or 120V, Light Stands & Travel Bag.

SKU: BCB3149600 MFR: B3149607
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$6,381.66
Free Shipping
Qty:

Add to Wishlist

About this item

The Broncolor Minicom 80/40 RFS Monoligts are controlled by microprocessor with interlocking Pulso bajonet, which permits a 360° rotation of the mounted light shapers. They provide 600 J/300 J (100V version: 500 J/250) (Minicom 80/40) flash energy. They also feature control range over 5 f-stops in 1/1 or 1/10 f-stop increments, high repetitive accuracy for digital imaging, internal discharge in case of a reduction of power.

The Infrared receiver and photocell (can be switched off separately). Modelling light with 6 different proportionality levels is compatible with all Broncolor flash systems and the various power levels. The Front panel comes with illuminated digital display, LED display as well as a dust and scratch-proof illuminated silicone keyboard.

Integrated RFS Interface (Radio Frequency System) for remote control respectively flash release of the unit by radio by means of transmitter RFS, as well as transceiver RFS from a PC or Macintosh computer. It has Built-in memory function to store 4 lighting situations while working via screen.

What's Included With This Item

  • Broncolor Minicom 80 RFS with (Flash Tube
  • Modelling Lamp
  • Protecting Glass
  • Transparent Transport Protection Cap
  • Mains Cable)
  • 2 x Minicom 40 RFS with (Flash Tubes
  • Modelling Lamps
  • Protecting Glasses
  • Transparent Transport Protection Caps
  • Mains Cables)
  • 2 P-Travel Reflectors
  • Barn Door for P-Travel
  • Pulsoflex C 60 x 100
  • Transmitter RFS
  • Synchronous Cable, 5 m
  • Travel Bag
  • Stand Bag
  • 3 x Stands
  • Broncolor 2 Years Warranty

Key Features

  • High repetitive precision for digital imaging
  • Large control range of the flash energy
  • Flash release also possible via radio (optional) and infrared
  • Automatic flash release control
  • Illuminated silicone keyboard and LED-display, resistant to dust and scratches
  • Additional flash sequences (flash series)
  • Sensitivity of the photocell can be reduced
  • Automatic adaptation to the respective mains power

Technical Specs

Flash energy Minicom 80 RFS: 600 J (100 V: 500 J)
Minicom 40 RFS: 300 J (100 V: 250 J)
F-stop At a distance of 2 m / 6.6 feet 100 ISO, reflector P50 // P70:
Minicom 80 RFS: 45 5/10// 32 5/10 (100 V: 45 2/10 // 32 2/10)
Minicom 40 RFS: 32 5/10 // 22 5/10 (100 V: 32 2/10 // 22 2/10)
Flash duration t 0.1 (t 0.5) Minicom 80 RFS: 1/420 s (1/1500 s) with mains voltage 110 - 240 V
Minicom 40 RFS: 1/900 s (1/2500 s) with mains voltage 110 - 240 V
=> With mains voltage 100 V: about 20 % longer
Charging time For 100 % of selected energy
Minicom 80 RFS: 230 V / 50 Hz: 0.4 - 1.4 s
120 V / 60 Hz: 0.4 - 1.9 s
100 V / 50 Hz: 0.4 - 3.0 s
Can be switched to slow charge mode
Minicom 40 RFS: 230 V / 50 Hz: 0.3 - 0.9 s
120 V / 60 Hz: 0.3 - 1.2 s
100 V / 50 Hz: 0.3 - 1.5 s
Can be switched to slow charge mode
Ready display Visual and audible (can be switched off), signals when 100 % of selected energy is reached
Controls Illuminated digital display, LED display as well as dust- and scratch-proof, illuminated silicone keyboard
Control range of flash energy 100 V: 1/3 f-stop less
Over 4 f-stops in 1/10 increments (1:16)
Can be switched to 5 f-stops (1:32)
Modelling light Halogen max. 300 W
Additional functions Sequences (serial flashes) up to 50 flashes
Sensibility of the photocell can be reduced
Flash release Manual release button, photocell and infrared receiver (can be switched off), sync cable, FCM 2, FCC, IRX2, transmitter RFS, transceiver RFS
Flash monitoring Visual: Dim or boost function of the modelling light during charging
Audible: buzzer
Remote control By means of the 8 channel RFS Interface (Radio Frequency System) for remote control of the unit by radio from Servor RFS as well as transceiver RFS from PC or Macintosh computer. Up to 8 units can be controlled Per channel (studio), there can be controlled up to 8 units.
Operational distance outdoors Up to 30 m / 98.4 feet
Operational distance in closed rooms Up to 20 m / 65.6 feet
Range Minicom 80 RFS: Up to 300 m / 984 feet
Minicom 80 RFS: Up to 300 m / 984.2 feet
Number of sync sockets 2
Stabilized flash voltage +/- 1.5%
Cooling Fan
Power requirements 200-240 V / 50-60 Hz: 6 A
100-120 V / 50-60 Hz: 10 A
Dimensions (L x W X H) Minicom 80/40 RFS: 286 x 154 x 194 mm / 11.2 x 6 x 7.6 inch
Weight Minicom 80 RFS: 3.3 kg / 7.3 lb
Minicom 40 RFS: 3 kg / 6.6 lb
