Broncolor

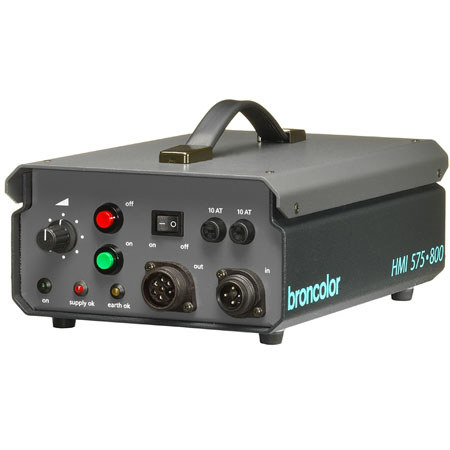

Broncolor HMI 575.800 Electronic Ballast Unit for Daylight Lamp Base

SKU: BCB4110200 MFR: B4110200
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,298.05
Free Shipping
Qty:

Add to Wishlist

About this item

Electronic ballast unit for the daylight lamp base Broncolor HMI F575.800. Equipped with a compact and robust aluminum housing. With LED-display for operation control, mains control as well as earth conductor monitoring. Automatic adaptation to the respective mains voltage from 90 to 265 V. Equipped with dimmer 100% - 60% as well as thermo-protection. Automatic recognition of the set power level of the connected lamp base (575 W or 800 W).

What's Included With This Item

  • Broncolor HMI 575.800 Electronic Ballast Unit
  • Mains Cable
  • Operating Instructions
  • Broncolor Warranty

Technical Specs

Nominal capacity 575 W
Nominal capacity 800 W
Dimming range (575W & 800W Lamp) 100 % - 60 %
Ignition possible (575W & 800W Lamp) 90 V
Efficiency (575W & 800W Lamp) 0.9
Power factor (575W & 800W Lamp) 95 % at 230 V / 99 % at 110 V
Flicker (575W & 800W Lamp) < 5 %
Ambient temperature -5°C to 45°C
Operation possible up to 60°C (from 45°C autom. power reduction to 60 %)
Protection class I (with strengthened insulation for protection)
Lamp detection Automatic 575 W / 800 W
Fuses 2 pieces, 10 AT (sand-filled)
Compatibility With daylight lamp base broncolor HMI F575.800 (art. no. 42.104.00).
Mains voltage (575W & 800W Lamp) 90 V - 265 V
Power requirements 200-240 V / 50-60 Hz: 6 A
100-120 V / 50-60 Hz: 10 A
Power consumption: 575 W lamp 640 W
Power consumption: 800 W Lamp 900 W
Dimensions 267 x 184 x 112.5 mm / 10.51" x 7.24" x 4.42"
Weight 2.6kg / 5.7lbs
