Manfrotto Pro Studio Rail System 43 Kit, Includes 2 Rails 13.12' Each, 2 Rails 9.84' Each

SKU: BGFF3043 MFR: FF3043
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,763.29 List Price

Our Price

Free Shipping
Add to Wishlist

About the Manfrotto Pro Studio Rail System 43

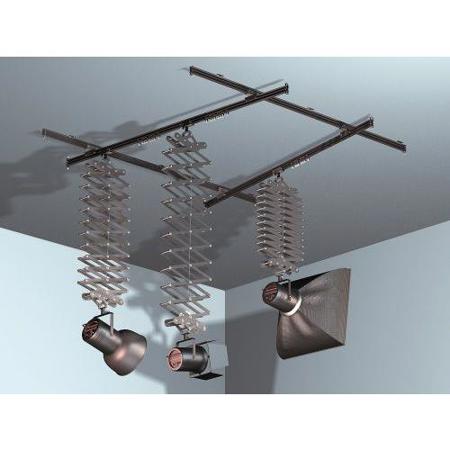

The Manfrotto Pro Studio Rail System 43 Kit is a modular overhead lighting suspension system which can be expanded or modified to your requirements. It provides precise positioning of lights with ease and speed, eliminating the clutter of light stands and power cables on the floor. The systems utilize a combination of rails, carriages, telescopic posts and manual spring/cable assisted or motorized pantographs. This is an 3 Pantograph System, for a large-size studio.

Manfrotto Pro Studio Rail System 43 Includes

  • Manfrotto 2 x 9.84' Rails (FF6003B)
  • 2 x 13.12' Rails (FF6004B)
  • 3 x Top 2 Pantograph (FF3512N86)
  • 2 x Double Sliding Carriages (FF3232)
  • 2 x Double Sliding Carriages with Single Brakes (3236)
  • 3 x Wheeled Sliding Carriages with 5/8" Spigots (FF3230)
  • 6 x Mounting Brackets (FF3210)
  • 3 x Sets of 4 End Stops (FF3207)
  • 3 x Safety Cables (FF3276)
  • Manfrotto Warranty

Manfrotto Pro Studio Rail System 43 Features

  • This kit features 2 stationary and 2 moving rails
  • The Pantograph supports a load of up to 26lbs suspended from 1' 6" to 6' 6" using only the friction device, while loads up to a maximum of 40lbs require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 2lbs to 10lbs perfectly balanced
  • The colored ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph
  • Each pantograph extends from 1'6" to 6'6"
  • Nylon wheels with metal ball bearings ensure safe operation with loads of up to 39.5 lbs
  • Extruded aluminum rails enable efficient utilization of studio perimeter walls and corners for back lighting, drapes and background paper
  • All components are black, to eliminate unwanted reflections

Manfrotto Pro Studio Rail System 43 Specifications

Dimensions 2 Rails: 3m (9.84') each
2 Rails: 4m (13.12') each
Weight 80lbs (36.28kg)
