Bron Kobold DW 800 Open Face Kit, with 800 watt HMI Head, Ballast, Lamp, Open Face Reflector & Filters (Case not Included)

SKU: BKK332U025 MFR: K332U025

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $8,555.00

Availability: Special Order Special Order - Usually ships in 3-7 days.
Your card will only be charged once item ships.

Free Shipping

See all shipping options

Product Highlights

  • Fine Design
  • Housing is made of high strength aluminum & is equipped with a mount
  • Appropriate reflectors, available separately
  • Versatile
  • Dimmable: The required light output can be set (100
  • Dimmable
  • LED Display
  • Hot Restrike: Permits rapid on-off switching of included HMI bulb

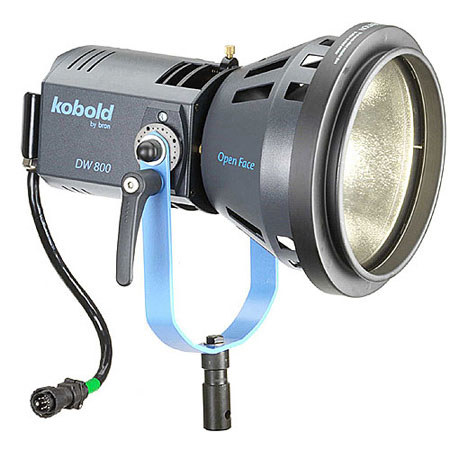

Bron Kobold DW 800 Open Face Kit: Picture 1 regular $7,998.00

About Bron Kobold DW 800 Open Face Kit

This is a Kobold 800 Watt HMI Open Face Kit (w/o case). The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location.

The weather-impervious DW800 has an IP54 rating, meaning it is highly resistant to water splashed on the housing. The Kobold EWB-400.575.800 IP43 rated, weather-resistant AC Ballast is for the DW400, DW575 or DW800 HMI fixture.

When connected to an 85-265VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable. The kit also includes an Open Face reflector, glass diffusion filter, glass CTO conversion filter, 4-leaf barn door, 25' lamp cable and an 800 Watt HMI lamp.

Bron Kobold DW 800 Open Face Kit Features

  • Fine Design: Lightweight and compact. No stray light, heat-resistant. Optional ceramic safety glass, wide range of accessories
  • Rugged: Housing is made of high strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
  • Versatile: May also be used as a PAR, or lantern fixture, with the appropriate reflectors, available separately.
  • Dimmable: The required light output can be set (100 - 60% adjustment range) with the power regulator. Color temperature can change with the power output depending on the type of lamp used. Less than 5% flicker
  • LED Display: Green LED is lit continuously: normal operating mode. Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%. Red LED Blinking: the mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
  • Hot Restrike: Permits rapid on-off switching of included HMI bulb
  • Barn Doors: Help to shape the light output
  • Filters: CTO converts to 3400K "tungsten". Diffusion slightly softens and diminishes output

Bron Kobold DW 800 Open Face Kit Specifications

Light Fixture Rating
800 watts
Socket (Lampholder)
G22, hot restrike
28mm (1-1/8") spigot with 16mm (5/8") hole
HMI Ballast Rating
400 / 575 / 800 watts
HMI Ballast Dimensions
10.5 x 7.2 x 4.4" (26.7 x 18.3 x 11.2cm)
HMI Ballast Weight
5.7 lbs (2.6kg)
Light Fixture Dimensions
9 x 12 x 16" (22.6 x 30 x 41.5cm)
Light Fixture Weight
4.5 lbs (3.9kg)
Kit Weight
29 lbs (13.2 kg)
Mfr #
