Bron Kobold DW 200 Open Face DC Flight Kit, with 200 watt HMI Head, Ballast, Lamp, Open Face Reflector, Filters & Case

Bron Kobold
SKU: BKK332U116 MFR: K332U116
Bron Kobold : Picture 1 thumbnail Bron Kobold : Picture 2 thumbnail Bron Kobold : Picture 3 thumbnail Bron Kobold : Picture 4 thumbnail Bron Kobold : Picture 5 thumbnail Bron Kobold : Picture 6 thumbnail Bron Kobold : Picture 7 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $184.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $229.95

Our Price

$3,837.64
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Bron Kobold : Picture 1 regular $3,837.64

About Bron Kobold

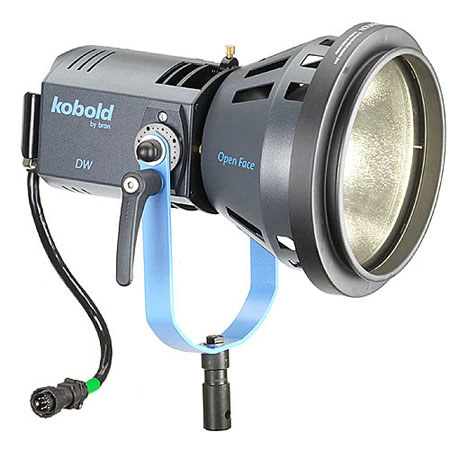

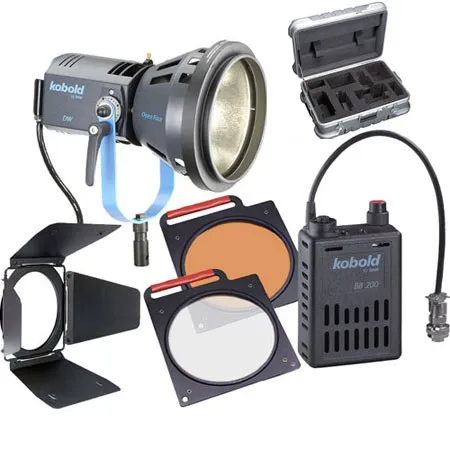

This Kobold DW200 Open Face HMI Kit is based on the extremely compact Kobold DW200 focusable 200 Watt Daylight Focus Flood light. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. The Kobold DC ballast in this kit will work with your choice of 2-Pin 26-34V DC source, available separately. Completing this kit are glass diffusion, and a CTO conversion filter, four leaf barndoor set, stand mount, Flight Kit Case, and a 200 Watt HMI Hot Restrike Bulb.

Bron Kobold Features

  • DW200 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Light output: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Ballast features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket, before pulling out the plug.
  • Green LED is lit continuously: normal operating mode
  • Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%
  • Red LED Blinking: the mains voltage has dropped below 85 V. If this LED is flashing, the lamp will be switched off automatically.
  • Yellow LED has not lit up: the ballast is not grounded, or connected correctly
  • IP 43, I, with strengthened insulation for additional protection; can take splashed water at a 60° angle from vertical
  • 2- 3.15A Fuses
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards

Bron Kobold Specifications

Light Fixture: Rating
200 watts
Light Fixture: Socket (Lampholder)
GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser)
Filters: CTO conversion, diffusion
Light Fixture: Mounting
Baby (5/8")
HMI Ballast: Rating
Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W)
HMI Ballast: Cable
13' (4m) with fixture
HMI Ballast: Dimensions
2.6 x 4.1 x 6.5"
6.5 x 10.5 x 16.5cm
HMI Ballast: Weight
1.6 lbs
750g
Light Fixture: Dimensions
6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight
2.6 lbs
1.2kg
Kit Weight
26 lbs
11.8kg
Mfr #
K332U116
SKU
BKK332U116
