Bron Kobold

Bron Kobold DW 200 PAR AC / DC Production Kit, with 200 watt HMI Head, 2 Ballasts, Lamp, PAR Reflector, Barndoors, Scrims & Case

SKU: BKK332U152 MFR: K332U152
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$6,875.49
Free Shipping
Qty:

Add to Wishlist

About this item

The Kobold DW 200 AC/DC PAR 200 Watt HMI Production Kit is built around the IP54 rated, weather-proof DW 200 lamp base which withstands water splashing on it from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination.

The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable.

The BB200/C DC Ballast, when connected to your 26-34 Volt Battery source, will provide dimmable power to your fixture in areas where AC current is not available. Completing this kit are four lenses, which alter the intensity and spread of the light, two wire scrims, a four leaf barn door set, stand mount, 200 Watt HMI Hot Restrike Bulb, and a Production Kit Case. A 16.4' (5m) head extension cable and a softbox adapter which accepts 5" speed rings are also included.

What's Included With This Item

  • Bron Kobold DW200 HMI Lamphead 200 Watts
  • PAR Reflector for DW200
  • EWB 200 AC Ballast for DW200
  • BB200/C Battery Ballast for DW200 (26-34VDC)
  • Four Lens Set for DW200 HMI PAR
  • Four Leaf Barndoor Set for DW200
  • Scrim Full Single for DW200-5"
  • Scrim Full Double for DW200-5"
  • HMI Lamp for DW200 200 Watts/70 Volts

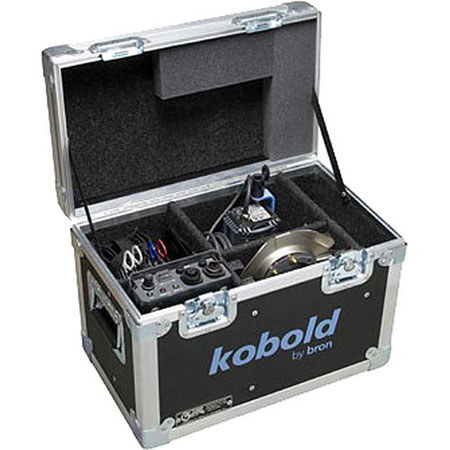

  • Production Case
  • Extension Cable for DW200 HMI Fixtures 16.4' (5m)
  • Softbox Adapter for DW200
  • Storage Bag for Five Lenses for DW200 HMI PAR
  • Bron Kobold Warranty

Key Features

  • DW200 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Light output: Spot: 44940 lux / 4175 fc @ 9.8' (3 m) with no lens
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Ballasts features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
  • Water-resistant IP rated components: IP 54 (Lamphead), IP 43 (EWB 200), IP 20 (BB 200), with strengthened insulation for additional protection.
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards
  • Lens Set: Each lens has a color-coded handle for easy identification.
  • Four leaf barn door set helps shape the light
  • Full and double scrim help control the intensity

Technical Specs

Light Fixture: Rating 200 watts
Light Fixture: Socket (Lampholder) GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser) 4 Lens Set with Bag: Narrow, Medium Spots, Wide, Very Wide Floods
Light Fixture: Mounting Baby (5/8")
HMI Ballast: Rating AC: 200 watts, 90-265VAC
DC: 200 watts
Voltage range 30V battery: 26 - 34VDC
Voltage range 24V battery: 22 - 25VDC (output limited to 170W)
HMI Ballast: Cable 13' (4m) with fixture
HMI Ballast: Dimensions 9.25 x 6.3 x 3.3"
23.5 x 16 x 8.5cm
HMI Ballast: Weight AC: 3.74 lbs (1.7kg)
DC: 1.75 lbs (750g)
Light Fixture: Dimensions 6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight 2.6 lbs
1.2kg
Kit Dimensions 16 x 11.5 x 14"
40.64 x 29.21 x 35.56cm
Kit Weight 35.25 lbs
16 kg
