Bron Kobold

Bron Kobold DW 200 Open Face AC Production Kit, with 200 watt HMI Head, Ballast, Lamp, Open Face Reflector, Barndoors, Filters & Case

SKU: BKK332U154 MFR: K332U154
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,181.00 List Price

Our Price

$4,086.90
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About this item

The Kobold DW 200 AC PAR 200 Watt HMI Production Kit is built around the IP54 rated, weather-proof DW 200 lamp base which withstands water splashing on it from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°.

This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold EWB-200 AC Ballast is connected to a 90-265VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable. Completing this kit are a glass diffusion filter, a glass (CTO) conversion filter, four leaf barn door set, stand mount, 200 Watt HMI Hot Restrike Bulb, and a Production Kit Case. A lens bag is included to protect the filters.

What's Included With This Item

  • Bron Kobold DW200 HMI Lamphead 200 Watts
  • Open Face Reflector for DW200
  • EWB-200 AC Ballast for DW200
  • Four Leaf Barndoor Set for DW200
  • Glass Diffusion Filter for DW200 Open Face HMI
  • Glass Conversion Filter for DW200 Open Face HMI
  • 200 Watt HMI SE hr Lamp

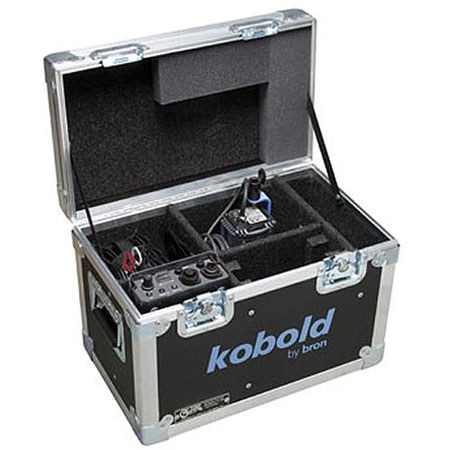

  • Production Case
  • Lens Bag for DW200 HMI PAR
  • Bron Kobold Warranty

Key Features

  • DW200 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Light output: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc
  • Barn Door Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Ballasts features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
  • Water-resistant IP rated components: IP 54 (Lamphead), IP 43 (EWB 200), IP 20 (BB 200), with strengthened insulation for additional protection.
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards
  • Glass Diffusion Filter: softens and diminishes light output.
  • Glass CTO Conversion Filter: Converts 5600K output of the HMI lamp to match 3200K tungsten sources.
  • Four leaf barn door set helps shape the light
  • Full and double scrim help control the intensity

Technical Specs

Light Fixture: Rating 200 watts
Light Fixture: Socket (Lampholder) GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser) Open Face: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc
Light Fixture: Mounting Baby (5/8")
HMI Ballast: Rating 200 watts, 90-265VAC
HMI Ballast: Cable 13' (4m) with fixture
HMI Ballast: Dimensions 9.25 x 6.3 x 3.3"
23.5 x 16 x 8.5cm
HMI Ballast: Weight AC: 3.74 lbs (1.7kg)
Light Fixture: Dimensions 6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight 2.6 lbs
1.2kg
Kit Dimensions 16 x 11.5 x 14"
40.64 x 29.21 x 35.56cm
Kit Weight 31.75 lbs
14.4 kg
