Bron Kobold DW 200 Open Face AC / DC Production Kit, with 200 watt HMI Head, 2 Ballasts, Lamp, Open Face Reflector, Barndoors, Filters & Case

Bron Kobold
SKU: BKK332U156 MFR: K332U156

Our Price

$5,621.97
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Bron Kobold : Picture 1 regular $5,621.97

About Bron Kobold

The Kobold DW 200 AC/DC PAR 200 Watt HMI Production Kit is built around the IP54 rated, weather-proof DW 200 lamp base which withstands water splashing on it from any direction without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 14-51°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location.

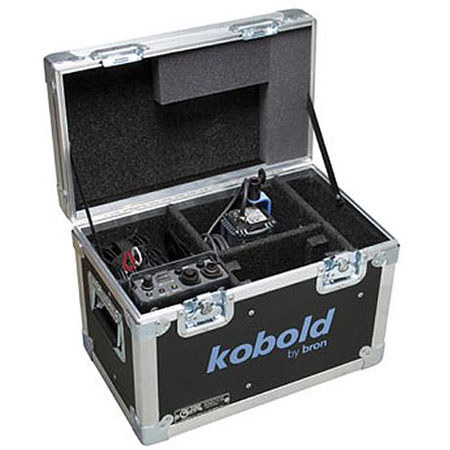

When the Kobold EWB-200 AC Ballast is connected to a 90-265VAC source, this weather-resistant ballast will provide dimmable power to your fixture via its included head-to-ballast cable. The BB200/C DC Ballast, when connected to your 26-34 Volt Battery source, will provide dimmable power to your fixture in areas where AC current is not available. Completing this kit are a glass diffusion filter, a glass (CTO) conversion filter, four leaf barn door set, stand mount, 200 Watt HMI Hot Restrike Bulb, and a Production Kit Case. A lens bag is included to protect the filters.

Bron Kobold Features

  • DW200 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Light output: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Ballasts features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
  • Water-resistant IP rated components: IP 54 (Lamphead), IP 43 (EWB 200), IP 20 (BB 200), with strengthened insulation for additional protection.
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards
  • Glass Diffusion Filter: softens and diminishes light output.
  • Glass CTO Conversion Filter: Converts 5600K output of the HMI lamp to match 3200K tungsten sources.
  • Four leaf barn door set helps shape the light
  • Full and double scrim help control the intensity

Bron Kobold Specifications

Light Fixture: Rating
200 watts
Light Fixture: Socket (Lampholder)
GZY 9.5 for 200W SE HR lamp
Light Fixture: Lens (Condenser)
Open Face: Spot: 8100 lux / 753 fc Flood: 1675 lux / 156 fc
Light Fixture: Mounting
Baby (5/8")
HMI Ballast: Rating
AC: 200 watts, 90-265VAC
DC: 1.75 lbs (750g)
HMI Ballast: Cable
13' (4m) with fixture
HMI Ballast: Dimensions
9.25 x 6.3 x 3.3"
23.5 x 16 x 8.5cm
HMI Ballast: Weight
AC: 3.74 lbs (1.7 kg)
DC: 1.75 lbs (750g)
Light Fixture: Dimensions
6.75 x 5.85 x 4.3"
17.1 x 14.9 x 11cm
Light Fixture: Weight
2.6 lbs
1.2kg
Kit Dimensions
16 x 11.5 x 14"
40.64 x 29.21 x 35.56cm
Kit Weight
9.5 lbs
4.2kg
Mfr #
K332U156
SKU
BKK332U156
