Bron Kobold

Bron Kobold DW 400 Open Face AC Flight Kit 45, with 400 watt HMI Head, Ballast, Lamp, Open Face Reflector, Filter & Case

SKU: BKK332U172 MFR: K332U172
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,585.00 List Price

Our Price

$6,155.95
Free Shipping
Qty:

Add to Wishlist

About this item

The Kobold DW 400 Open Face 400 Watt HMI Flight Kit 45 is built around the IP54 rated, weather-proof DW 400 lamp base which can withstand water splashing on the housing without harmful effect. The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 15-45°.

This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location. When the Kobold AC EWB 400.575 Ballast is connected to a 90-265VAC source, this weather-resistant unit will provide dimmable power to your fixture via its included head-to-ballast cable. The kit includes an Open Face reflector, a glass diffusion filter and a glass CTO conversion filter, 4-leaf barn door, 400 Watt HMI hr lamp and an airline case.

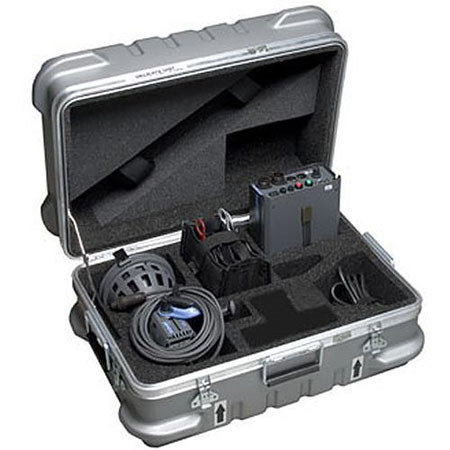

What's Included With This Item

  • Bron Kobold DW400 400 Watt HMI Lamp Head with Stand Mount
  • Open Face Reflector for DW400 HMI
  • EWB 400.575 AC Ballast for DW400, DW575 (85-265VAC)
  • 4-Leaf Barndoor for DWP400 Par/Open Face (Black)
  • Lens Bag for DW400 HMI PAR
  • 713-0746 Glass Diffusion Filter
  • HMI Lamp for DW400 400 Watts/70 Volts
  • Airline Flight Case
  • Bron Kobold Warranty

Key Features

  • DW400 Fixture features:
  • Focus: Use the rotary knob on the rear of the fixture to adjust focus; note the corresponding "flood" and "spot" symbols on the fixture label indicating the adjustment directions.
  • Reflector: Installation is quick and without any tools, due to a locking mechanism. The optimized design of this reflector achieves a high light output and a homogeneous illumination.
  • Barndoor Set: To place the barn door on the fixture, slip it onto the impressed section of the ring and secure it with the knurled screw located opposite the recess. Pull the knurled screw and let it spring back into place; then tighten it to secure the barn door.
  • Hot Restrike: Socket and switches are equipped to allow switching the fixture on and off repeatedly without the delay of waiting for the bulb to cool.
  • Ballast features:
  • The required light output can be set (100 - 60% adjustment range) with the power regulator.
  • Color temperature can change with the power output depending on the type of lamp used.
  • To connect the ballast unit to the fixture just plug in the corresponding connection.
  • To disconnect, press the security mechanism on the socket before pulling out the plug.
  • Red and Green LEDs continuously monitor operation, indicate voltage changes and employ thermo protection, power reduction and even shut-down if necessary.
  • Water-resistant IP 54 rated ballast with strengthened insulation for additional protection.
  • Ignition overload protection
  • Temperature monitor
  • Convection cooling
  • Meets CE Standards
  • High Light Output @ 9.8' (3m)- Spot: 19,200 Lux, 1784 fc ,Flood: 3400 Lux, 316 fc
  • Four leaf barn door set helps shape the light
  • Full and double scrim help control the intensity

Technical Specs

Light Fixture: Rating 400 watts
Light Fixture: Socket (Lampholder) GZY 9.5 for 400W SE hr Lamp
Light Fixture: Mounting Baby (5/8")
HMI Ballast: Rating AC: 400/575, 90-265VAC
HMI Ballast: Cable 13' (4m) with fixture
HMI Ballast: Dimensions 9.25 x 6.3 x 3.3"
23.5 x 16 x 8.5cm
HMI Ballast: Weight AC: 3.74 lbs (1.7kg)
Light Fixture: Dimensions 6.6 x 5.6 x 5.4"
16.8 x 14.2 x 14cm
Light Fixture: Weight 3 lbs
1.3kg
Kit Dimensions 26 x 18.5 x 14"
66 x 47 x 35.5cm
Kit Weight 35 lbs
15.9 kg
