Bron Kobold DW 800 Open Face AC Production Kit, with 800 watt HMI Head, Ballast, Lamp, Open Face Reflector, Filters, Barndoor & Case

Bron Kobold
SKU: BKK332U192 MFR: K332U192

Our Price

$7,535.79
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Bron Kobold

This is a Kobold 800 Watt HMI Open Face Production Kit . The optimized design of the reflector achieves a high light output and a homogeneous illumination. The ergonomically positioned focusing knob enables focusing of 12-70°. This daylight fixture has a solid design, compact dimensions and maximum reliability for all applications in the studio and on location.

The weather-impervious DW800 has an IP54 rating, meaning it is highly resistant to water splashed on the housing. The Kobold EWB-400.575.800 IP43 rated, weather-resistant AC Ballast is for the DW400, DW575 or DW800 HMI fixture.

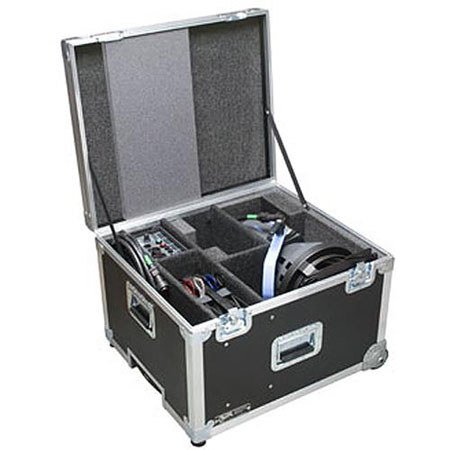

When connected to an 85-265VAC source, this ballast will provide dimmable power to your fixture via its included head-to-ballast cable. The kit also includes an Open Face reflector, glass diffusion filter, glass CTO conversion filter, 4-leaf barn door, 25' lamp cable, 800 Watt HMI lamp and a production case.

Bron Kobold Features

  • Fine Design: Lightweight and compact. No stray light, heat-resistant. Optional ceramic safety glass, wide range of accessories
  • Rugged: Housing is made of high strength aluminum and is equipped with a mount for single-ended HMI/MSR lamps with a high degree of efficiency. The ignition unit is air-tight and allows cold and hot starts even in a humid environment.
  • Versatile: May also be used as a PAR, or lantern fixture, with the appropriate reflectors, available separately.
  • Dimmable: The required light output can be set (100 - 60% adjustment range) with the power regulator. Color temperature can change with the power output depending on the type of lamp used. Less than 5% flicker
  • LED Display: Green LED is lit continuously: normal operating mode. Green LED is flashing: the thermo protection is activated reducing the power continuously down to 60%. Red LED Blinking: the mains voltage has dropped below 85V. If this LED is flashing, the lamp will be switched off automatically.
  • Hot Restrike: Permits rapid on-off switching of included HMI bulb
  • Barn Doors: Help to shape the light output
  • Filters: CTO converts to 3400°K "tungsten". Diffusion slightly softens and diminishes output

Bron Kobold Specifications

Light Fixture Rating
800 watts
Socket (Lampholder)
G22, hot restrike
Mounting
28mm (1-1/8") spigot with 16mm (5/8") hole
HMI Ballast Rating
400/575/800 watts
85-265VAC
Cable
Included
HMI Ballast Dimensions
10.5 x 7.2 x 4.4" (26.7 x 18.3 x 11.2cm)
HMI Ballast Weight
5.7 lbs (2.6kg)
Light Fixture Dimensions
9 x 12 x 16" (22.6 x 30 x 41.5cm)
Light Fixture Weight
4.5 lbs (3.9kg)
Kit Weight
74.5 lbs (33.8 kg)
